Запчасти Case IH 1070 (0444) - A42248 AUXILIARY VALVE, USED PRIOR TRACTOR SERIAL NUMBER 8709725 (08) - HYDRAULICS

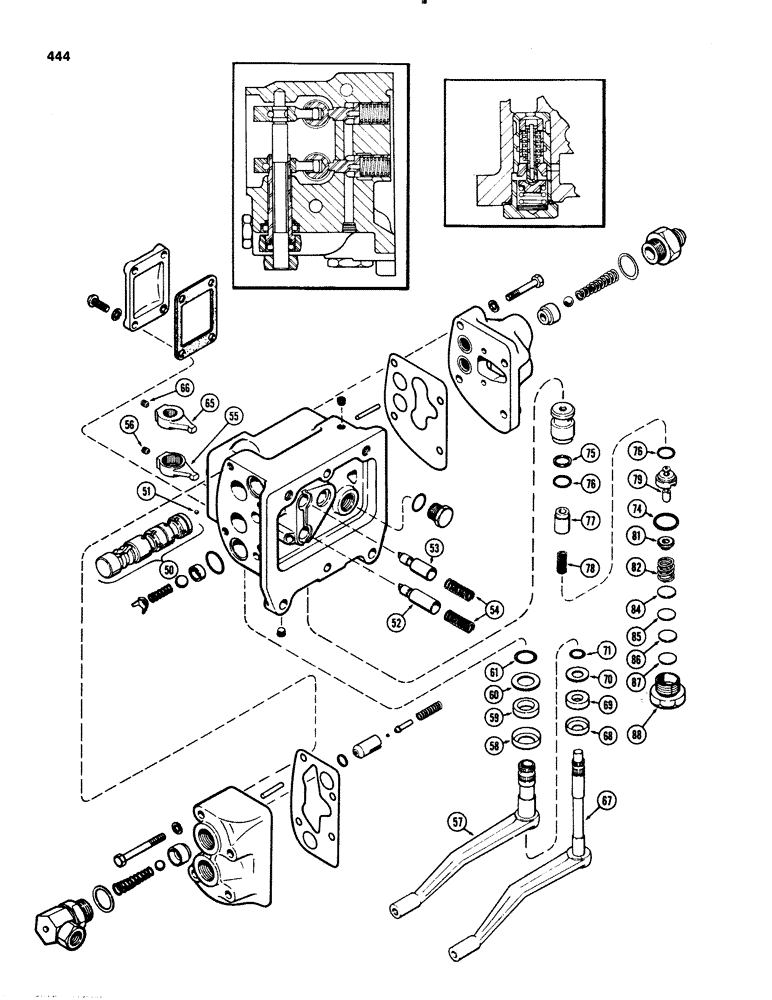

Схема запчастей Case IH 1070 - (0444) - A42248 AUXILIARY VALVE, USED PRIOR TRACTOR SERIAL NUMBER 8709725 (08) - HYDRAULICS
50
86
84
77
79
53
71
87
67
56
57
68
74
78
81
66
65
69
55
59
61
76
82
76
85
54
75
60
88
70
51
58
52

Артикул

Название

Примечание

Количество

A42248

VALVE

ASSY - auxiliary (Continued from Fig. 442)

1шт.

50

A57538

SPOOL

ASSY - valve, Includes: Ref. 51

2шт.

51

211-5

BALL,3/16" Dia

- meter 3/16" Dia

1шт.

52

A57554

PLUNGER

- valve spool, inner

1шт.

53

A57555

PLUNGER

- valve spool, outer (drilled)

1шт.

54

A30883

SPRING

- plunger (37/64" diameter)

2шт.

55

A57546

ARM

ASSY - spool shift lever, inner, Includes: Ref. 56

1шт.

56

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" NC hex socket headless, cup point

1шт.

57

A60391

SHAFT

- shift lever, upper

1шт.

58

A30880

RETAINER

- felt washer, shaft

1шт.

Included w/ SEAL KIT, A43086

1шт.

59

A30879

WASHER

- felt, inner shaft (3/4 x 1-3/16 x 1/4")

1шт.

Included w/ SEAL KIT, A43086

1шт.

60

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, shaft (49/64 x 1-15/64 x 20 gauge)

1шт.

Included w/ SEAL KIT, A43086

1шт.

61

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- 3/32 x 3/4 x 15/16"

1шт.

Included w/ SEAL KIT, A43086

1шт.

65

A57547

ARM

ASSY - valve spool lever, outer, Includes: Ref. 66

1шт.

66

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4" NC hex socker headless, cup point

1шт.

67

A60393

SHAFT

- shift lever, lower

1шт.

68

A30875

RETAINER

- felt washer shaft

1шт.

Included w/ SEAL KIT, A43086

1шт.

69

A30853

WASHER

- felt, outer shaft (1/2 x 15/16 x 1/4")

1шт.

Included w/ SEAL KIT, A43086

1шт.

70

A27409

WASHER

- seal, shaft (33/64 x 63/64 x 20 gauge)

1шт.

Included w/ SEAL KIT, A43086

1шт.

71

A64836

O-RING,0.487" ID x 0.693" OD

- 3/32 x 1/2 x 11/16", Includes: Ref. 74 - 76

1шт.

Included w/ SEAL KIT, A43086

1шт.

A42888

KIT

- seal, relief valve (not part of valve assy)

1шт.

74

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8"

1шт.

Included w/ SEAL KIT, A43086

1шт.

75

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- pilot relief valve

1шт.

Included w/ SEAL KIT, A43086

1шт.

76

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- 5/8 x 3/4 x 1/16"

2шт.

Included w/ SEAL KIT, A43086

1шт.

77

A57553

PISTON

- pilot relief valve

1шт.

78

A34382

SPRING

- pilot relief valve (1" free length, 15/32" diameter)

1шт.

79

A57556

PISTON

ASSY - pilot relief valve

1шт.

81

A57558

RETAINER

- valve spring

1шт.

82

A34492

SPRING

- valve (23/32" free length, 49/64" diameter)

1шт.

84

A34849

SHIM,.0105" Thk

Pilot relief spring .0105" Thk

1шт.

Refer to tag attached to valve for shim data

1шт.

85

A34390

SHIM,.0329" Thk

Pilot relief spring .0329" Thk

1шт.

Refer to tag attached to valve for shim data

1шт.

86

A34817

SHIM,.0149" Thk

Pilot relief spring (Blue) .0149" Thk

1шт.

Refer to tag attached to valve for shim data

1шт.

87

A34694

SHIM,.0201" Thk

Pilot relief spring, Includes Ref. 88 .0201" Thk

1шт.

Refer to tag attached to valve for shim data

1шт.

88

A34392

PLUG

- pilot relief valve

1шт.

A43086

SEAL

KIT - seal, Includes: Ref. 58 - 61 and 68 - 76

1шт.
