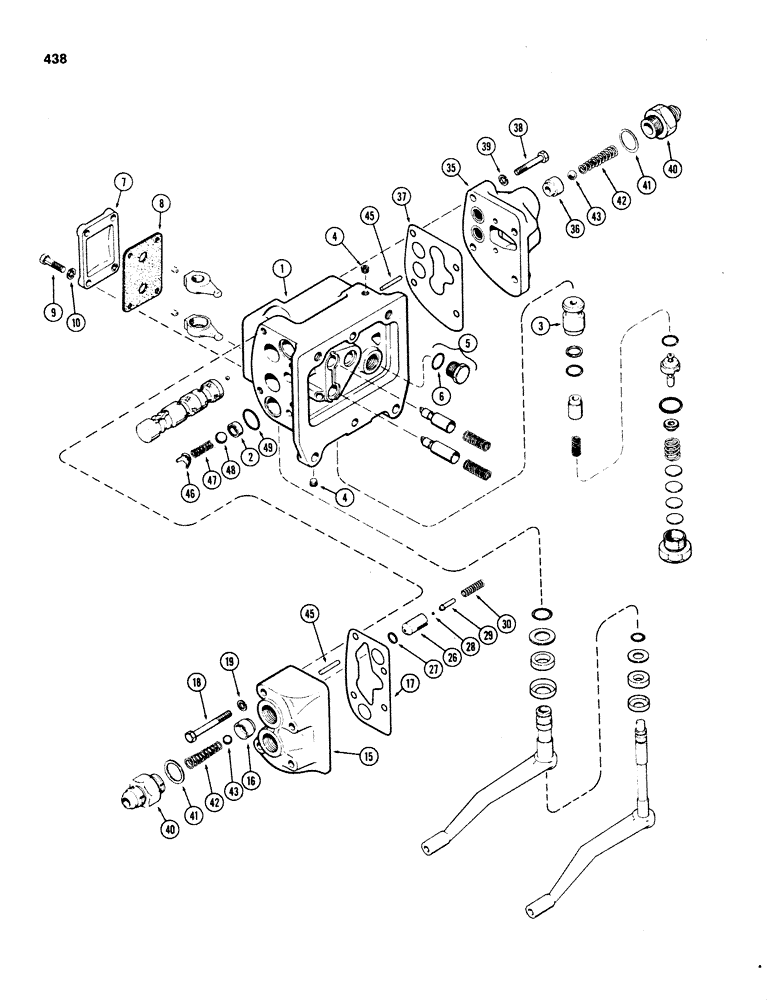

Запчасти Case IH 1070 (0438) - A44192 AUXILIARY VALVE, 1ST USED TRACTOR SERIAL NUMBER 8709725 (08) - HYDRAULICS

A44192

HYDRAULIC VALVE

VALVE ASSY - auxiliary (w/straight outlet fitting on RH side) (Order A45419), Includes: Ref. 1 - 87

1шт.

1

A57534

BODY

ASSY - valve (Order 1-A141405 body & 2-A66469 spools), Includes: Ref. 2 - 4

1шт.

2

A139799

SEAT

- ball, check valve

4шт.

3

A57536

SLEEVE

- relief valve pilot

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- pipe, 1/8" hex socket head

4шт.

5

86512512

PLUG,7/8" - 14 ORB

Assy, Body port, Incl. Ref. 6 Hex Hd, 7/8"-14 ORB

1шт.

6*

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32"

1шт.

7

A57552

CAP

- valve body

1шт.

8

A76374

GASKET

- valve body cap

1шт.

9

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

4шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

A57565

VALVE

HEAD ASSY - valve, RH, Includes: Ref. 16

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

17

A57561

GASKET

- head, RH

1шт.

18

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

18

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" NC hex

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

26

A62273

SEAT

- thermal valve, (Order A137335)

2шт.

27

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- thermal valve, 3/8 x 9/16 x 3/32"

2шт.

28

211-3

BALL,1/8" Dia

- meter, steel 1/8" Dia

2шт.

29

A62272

GUIDE

- ball, thermal valve (Order A137594)

2шт.

30

A57396

SPRING

- valve (1-7/64" free length, 21/64" diameter)

2шт.

35

A57564

VALVE

HEAD ASSY - valve, LH, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

SEAT - valve head

2шт.

37

A57560

GASKET

- valve head, LH

1шт.

38

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

-3/8 x 2-3/4" NC hex

4шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

A64708

FITTING

- remote valve outlet (See Fig. 452)

4шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8"

4шт.

42

A30877

SPRING

- check valve

4шт.

43

211-13

BALL,1/2" Dia

- check valve, steel 1/2" Dia

4шт.

45

A57559

SPOOL

- auxiliary

4шт.

46

A27364

GUIDE

- auxiliary ball check

4шт.

47

A27542

SPRING - auxiliary valve (1-1/8" free lenght, 1/2" diameter)

4шт.

48

211-15

BALL,5/8" Dia

- meter, steel 5/8" Dia

4шт.

49

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- 15/16 x 1-1/8 x 3/32"

4шт.
