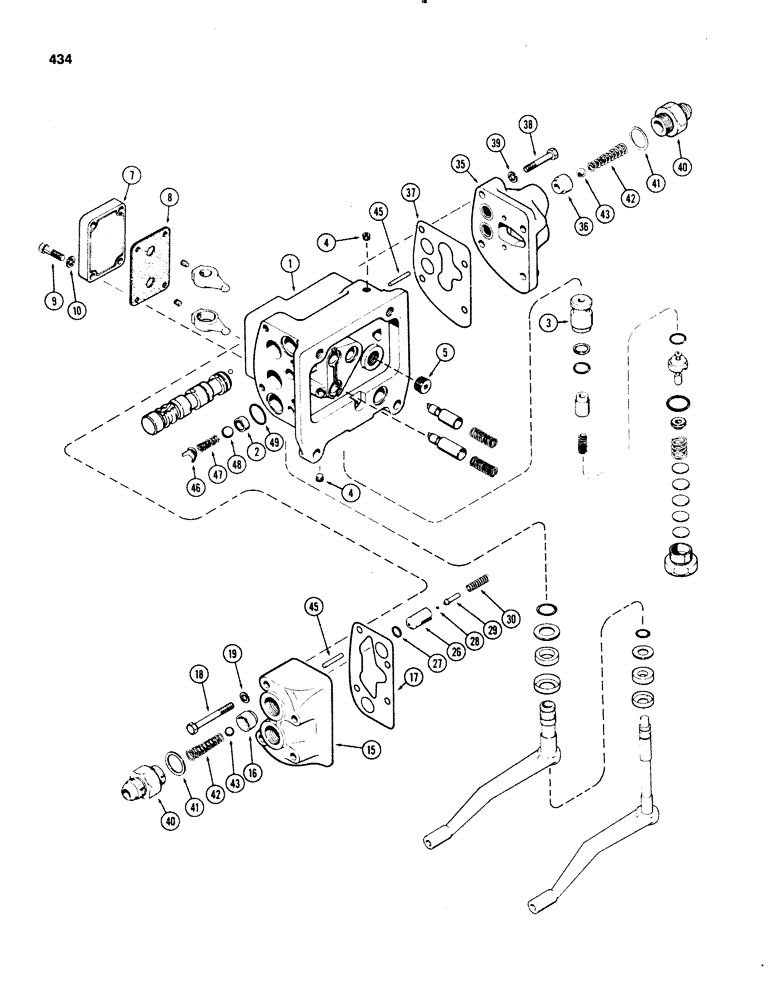

Запчасти Case IH 1070 (0434) - A44745 AUXILIARY VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A44745
VALVE
ASSY - auxiliary (w/straight outlet fitting on RH side) (Order A4555419), Includes: Ref. 1 - 87
1шт.
1
A66628
BODY
ASSY - valve (Order A141405), Includes: Ref. 2 - 5
1шт.
2
A139799
SEAT
- ball, check valve
4шт.
3
A57536
SLEEVE
- relief valve pilot
1шт.
4
221-849
PLUG,Hex Soc, 1/8"-27
- 1/8" Hex socket head pipe
4шт.
5
221-843
PLUG,Hex Soc, 3/8"-18
- 3/8" hex socket head pipe
1шт.
7
A66435
CAP
- valve body
1шт.
8
A76374
GASKET
- valve body cap
1шт.
9
13-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
4шт.
10
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
15
A57564
VALVE
HEAD ASSY - valve, RH, Includes: Ref. 16
1шт.
16
NSS
NOT SOLD SEPARAT
SEAT - valve head
2шт.
17
A57561
GASKET
- head, RH
1шт.
18
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
2шт.
18
13-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- 3/8 x 2-1/2" NC hex
2шт.
19
92-6
LOCK WASHER,3/8"
4шт.
26
A62273
SEAT
- thermal valve (Order A137335)
2шт.
27
A27891
O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
- thermal valve, 3/8 x 9/16 x 3/32"
2шт.
28
211-3
BALL,1/8" Dia
-meter, steel 1/8" Dia
2шт.
29
A62272
GUIDE
- ball, thermal valve (Order A137594)
2шт.
30
A57396
SPRING
- valve (1-7/64" free length, 21/64" diameter)
2шт.
35
A57565
VALVE
HEAD ASSY - valve, LH, Includes: Ref. 36
1шт.
36
NSS
NOT SOLD SEPARAT
SEAT - valve head
2шт.
37
A57560
GASKET
- valve head, LH
1шт.
38
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
- 3/8 x 2-3/4" NC hex
4шт.
39
92-6
LOCK WASHER,3/8"
4шт.
40
A64708
FITTING
- remote valve outlet (See Fig. 452)
4шт.
41
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- 3/4 x 59/64 x 1/8"
4шт.
42
A66473
SPRING
- check valve
4шт.
43
211-13
BALL,1/2" Dia
- check, steel 1/2" Dia
4шт.
45
A57559
SPOOL
- auxiliary
4шт.
46
A27364
GUIDE
- auxiliary ball check
4шт.
47
A27452
SPRING
- auxiliary valve (1-1/8" free length, 1/2" diameter)
4шт.
48
211-15
BALL,5/8" Dia
- meter steel 5/8" Dia
4шт.
49
A64434
O-RING,0.93" ID x 1.142" x 0.106"
- 15/16 x 1-1/18 x 3/32"
4шт.
Выбрано товаров: 35
