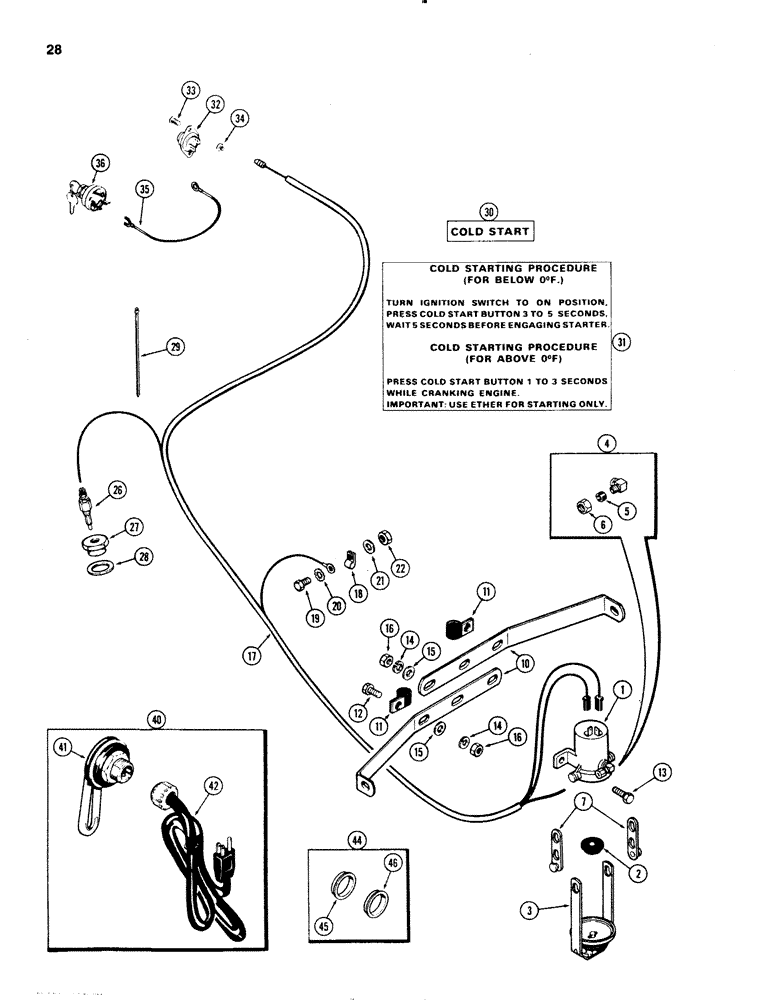

Запчасти Case IH 1070 (0028) - COLD WEATHER STARTING AIDS, 451B DIESEL ENGINE, ETHER STARTING EQUIP FACTORY INSTALLED (02) - ENGINE

1

A143381

SOLENOID

ASSY. - ether injection with fitting (Replaces A62441), Includes: Ref. 2 - 4

1шт.

2

R30786

GASKET

- ether can

1шт.

3

R30785

BAIL

ASSY. - solenoid

1шт.

4

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Check - Solenoid, Incl. Ref 5 & 6 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

2шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- for 1/8" tube 5/16"-24, 45º Fl, Comp

2шт.

7

R30812

LINK

- ball extension

2шт.

10

A62442

BRACKET - solenoid mounting

2шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

15

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/32"

4шт.

16

9635082

NUT,5/16" - 18, Gr 5

4шт.

17

A143893

HARNESS - solenoid to switch (Replaces A65989)

1шт.

18

A7922

CLIP

COLLECTOR - pre-cleaner (Replaces A42466), Includes: Ref. 21 - 23

1шт.

19

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

20

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int./ext.

1шт.

21

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

22

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

26

A145069

NOZZLE INJECTION

INJECTOR - nozzle, w/1/8" tube fitting (Replaces A62446)

1шт.

27

L10283

PLUG

ADAPTER - nozzle to intake manifold

1шт.

28

A20916

MANIFOLD GASKET

WASHER -, Serial Range: adapter-manifold

1шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tube & harness

7шт.

30

321-1752

DECAL

- "Cold Start"

1шт.

31

321-2946

DECAL

- "Cold Start - Instructions" (Replaces 321-1841)

1шт.

32

A36948

SWITCH

- ether solenoid

1шт.

33

173-257

SCREW,Phil Rnd Hd, #10 - 24 x 1/2"

- #10 x 1/2" N.C. Phillips hd. mach.

2шт.

34

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - #10 N.C. hex., brass

2шт.

35

A65985

ELECTRICAL WIRE

WIRE - solenoid switch to start switch

1шт.

36

A59693

SWITCH

- starting

1шт.

40

A44812

HEATER

ASSY. - cylinder block water (Replaces A42279), Includes: Ref. 41 and 42

1шт.

41

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- heater retaining, cylinder block

1шт.

42

A44813

CABLE EXTENSION

CORD - electric, w/plugs (12" long) (Replaces A42297), cylinder block heater

1шт.

44

A44006

SLEEVE

KIT - sleeve, cylinder block heater, Includes: Ref.45 and 46

1шт.

45

NSS

NOT SOLD SEPARAT

SLEEVE - heater, 2-1/16" O.D., cylinder block

1шт.

46

NSS

NOT SOLD SEPARAT

SLEEVE - heater, 2-1/8" O.D., cylinder block

1шт.
