Запчасти Case IH 1070 (0428) - A45419 AUXILIARY VALVE (08) - HYDRAULICS

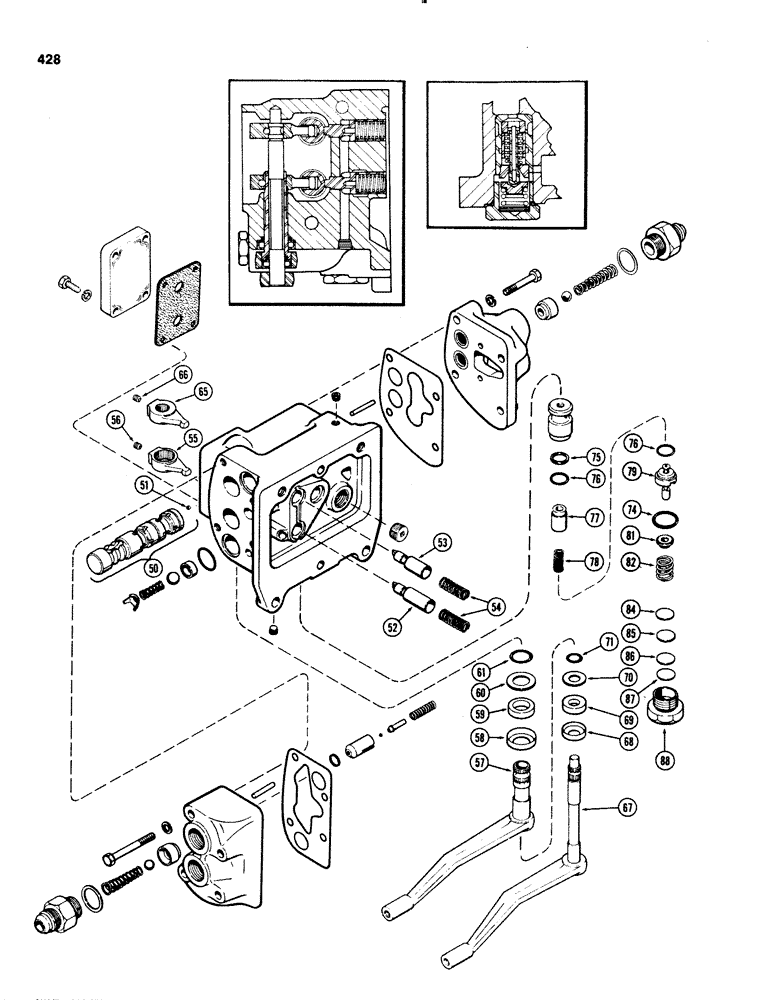

Схема запчастей Case IH 1070 - (0428) - A45419 AUXILIARY VALVE (08) - HYDRAULICS
76
75
77
76
50
71
58
55
61
68
66
70
85
84
79
78
59
51
53
65
57
81
60
88
86
82
67
52
56
54
74
87
69

Артикул

Название

Примечание

Количество

A45419

VALVE

ASSY. - auxiliary (Continued from Fig. 426)

1шт.

50

A66469

SPOOL

ASSY. - valve, Includes: Ref. 51

2шт.

51

211-5

BALL,3/16" Dia

- ., steel 3/16" Dia

1шт.

52

A57554

PLUNGER

- valve spool, inner

1шт.

53

A57555

PLUNGER

- valve spool, outer (drilled)

1шт.

54

A66472

SPRING

- plunger, 37/64" dia

2шт.

55

A57546

ARM

ASSY. - spool shift lever, inner, Includes: Ref. 56

1шт.

56

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - 1/4 x 1/4' N.C. hex. socket headless cup point

1шт.

57

A60391

SHAFT

- shift lever, inner

1шт.

58

A30880

RETAINER

- felt washer, shaft

1шт.

Included w/ SEAL KIT, A43086

1шт.

59

A30879

WASHER

- felt, inner shaft (3/4 x 1-3/16 x 1/4")

1шт.

Included w/ SEAL KIT, A43086

1шт.

60

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, shaft (49/64 x 1-15/64 x 20 ga.)

1шт.

Included w/ SEAL KIT, A43086

1шт.

61

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- 3/32 x 3/4 x 15/16"

1шт.

Included w/ SEAL KIT, A43086

1шт.

65

A57547

ARM

ASSY. - valve spool lever, outer, Includes: Ref. 66

1шт.

66

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW -1/4 x 1/4" N.C. hex. socket headless cup point

1шт.

67

A60393

SHAFT

- shift lever, outer

1шт.

68

A30875

RETAINER

- felt washer shaft

1шт.

Included w/ SEAL KIT, A43086

1шт.

69

A30853

WASHER

- felt, outer shaft (1/2 x 15/16 x 1/4")

1шт.

Included w/ SEAL KIT, A43086

1шт.

70

A27409

WASHER

- seal, shaft (33/64 x 63/64 x 20 ga.)

1шт.

Included w/ SEAL KIT, A43086

1шт.

71

A64836

O-RING,0.487" ID x 0.693" OD

- 3/32 x 1/2 x 11/16"

1шт.

Included w/ SEAL KIT, A43086

1шт.

A42888

KIT

- seal, relief valve (Not part of valve assy.), Includes: Ref. 74 - 76

1шт.

74

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8"

1шт.

Included w/ SEAL KIT, A43086

1шт.

75

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- pilot relief valve

1шт.

Included w/ SEAL KIT, A43086

1шт.

76

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- 5/8 x 3/4 x 1/16"

2шт.

Included w/ SEAL KIT, A43086

1шт.

77

A57553

PISTON

- pilot relief valve

1шт.

78

A34382

SPRING

- pilot relief valve (1" free length, 15/32" dia.) (replaces A34482)

1шт.

79

A57556

PISTON

- pilot relief valve

1шт.

81

A57558

RETAINER

- valve spring

1шт.

82

A34492

SPRING

- valve, 23/32" free length, 49/64" dia

1шт.

84

A34849

SHIM,.0105" Thk

Pilot relief spring .0105" Thk

1шт.

Refer to tag attached to valve for shim data

1шт.

85

A34390

SHIM,.0329" Thk

Pilot relief spring .0329" Thk

1шт.

Refer to tag attached to valve for shim data

1шт.

85

A34391

SHIM,.0149" Thk

Pilot relief spring .0149" Thk

1шт.

Refer to tag attached to valve for shim data

1шт.

86

A34817

SHIM,.0149" Thk

Pilot relief spring (Blue) .0149" Thk

1шт.

Refer to tag attached to valve for shim data

1шт.

87

A34694

SHIM,.0201" Thk

Pilot relief spring, Includes Ref. 88 .0201" Thk

1шт.

Refer to tag attached to valve for shim data

1шт.

88

A34392

PLUG

- pilot relief valve

1шт.

A43086

SEAL

KIT - seal, Includes: Ref. 58 - 61 and 68 - 76

1шт.
