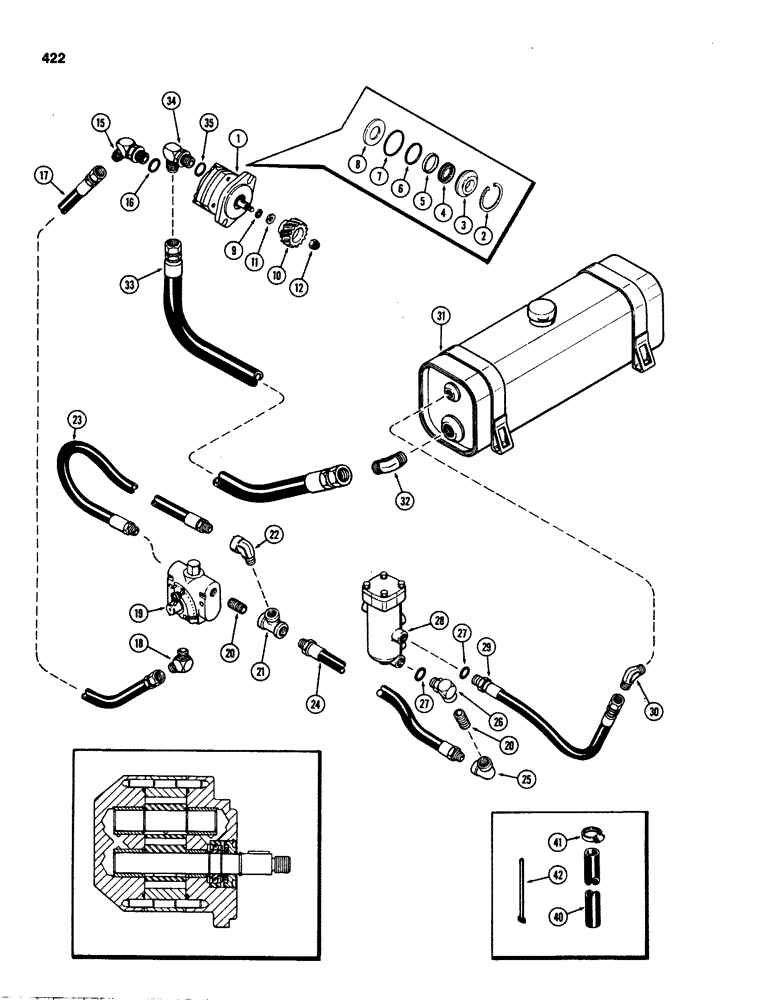

Запчасти Case IH 1070 (0422) - AUXILIARY HYDRAULIC PUMP KIT (08) - HYDRAULICS

A67233

KIT - auxiliary hydraulic (6 G.P.M.) (Mach. Item)

1шт.

A67234

KIT - auxiliary hydraulic (11 G.P.M.) (Mach. Item), Includes: Ref. 1 - 42

1шт.

1

A139692

PUMP

- auxiliary (6 G.P.M.)

1шт.

1

A139693

PUMP

- auxiliary (11 G.P.M.), Includes: Ref. 2 - 9

1шт.

A45378

SEAL

KIT - pump seal, Includes: Ref. 2 - 8

1шт.

2

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

3

A45377

SEAL

RETAINER - seal

1шт.

4

A45374

RING

- quad

1шт.

5

A45376

COLLAR

- O-Ring

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- 15/16 x 1-1/8 x 3/32"

1шт.

7

A59066

O-RING,1.239" ID x 1.379" OD

- 1-1/4 x 1-3/8 x 1/16"

1шт.

8

A45375

WASHER

- back-up

1шт.

9

D32101

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

10

L43703

GEAR

- pump drive

1шт.

11

A64303

WASHER

- 41/64 x 1-1/16 x 1/16"

1шт.

12

131-58

LOCK NUT,1/2"-20, G5

NUT - 1/2" N.F. hex. lock Esna

1шт.

15

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - 5/8" x 3/4" thrds. 45 deg. adjustable, Incl. Ref 16

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-33/64 x 15/64"

1шт.

17

L50840

HOSE

- pump to valve pressure (1/2" I.D. x 24")

1шт.

18

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 7/8" x 1/2" thrd., 45 deg.

1шт.

19

A139696

VALVE

- variable flow

1шт.

20

221-1185

FITTING

NIPPLE - 1/2" P.T. x 1-1/2"

2шт.

21

218-1424

TEE -1/2" P.T. street

1шт.

22

217-1019

ELBOW,1/2" - 14 Female x 1/2" - 14 Male

- 1/2" P.T. x 90 deg. street

1шт.

23

A141012

HOSE

- valve by-pass (3/8" I.D. x 22")

1шт.

24

A14145

HOSE - valve to filter (1/2" I.D. 11-3/4")

1шт.

25

221-1377

ELBOW,90 Degree, 1/2" NPT

- 1/2" P.T., 90 deg. street

1шт.

26

218-5454

ELBOW,90 Degree, 7/8"-14 ORB x 1/2" NPT Fem

ASSY. - 7/8" x 1/2" thrd., 90 deg. adjustable

1шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 3/4 x 27/32 x 3/32"

1шт.

28

REF

INSTRUCTION

FILTER ASSY. - hydraulic oil (Order components) (See Figure 254B)

1шт.

29

HO34686

HOSE - filter to reservoir 1/2" I.D. x 24")

1шт.

30

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 7/8" x 1/2", 90 deg.

1шт.

31

A141148

RESERVOIR - hydraulic (5 gal.)

1шт.

Reservoir uses S49304 Cap

1шт.

32

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 1-5/16" x 1", 90 deg.

1шт.

33

A141149

HOSE - reservoir to pum suction (1" I.D. 54")

1шт.

34

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - 1-1/16" thrd., 90 deg. adjustable, Incl. Ref. 35

1шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 x 1-11/16 x 15/64"

1шт.

40

A66132

HOSE

- breather. 1" I.D. x 34"

1шт.

41

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 to 1-3/4"

1шт.

42

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie-down

1шт.
