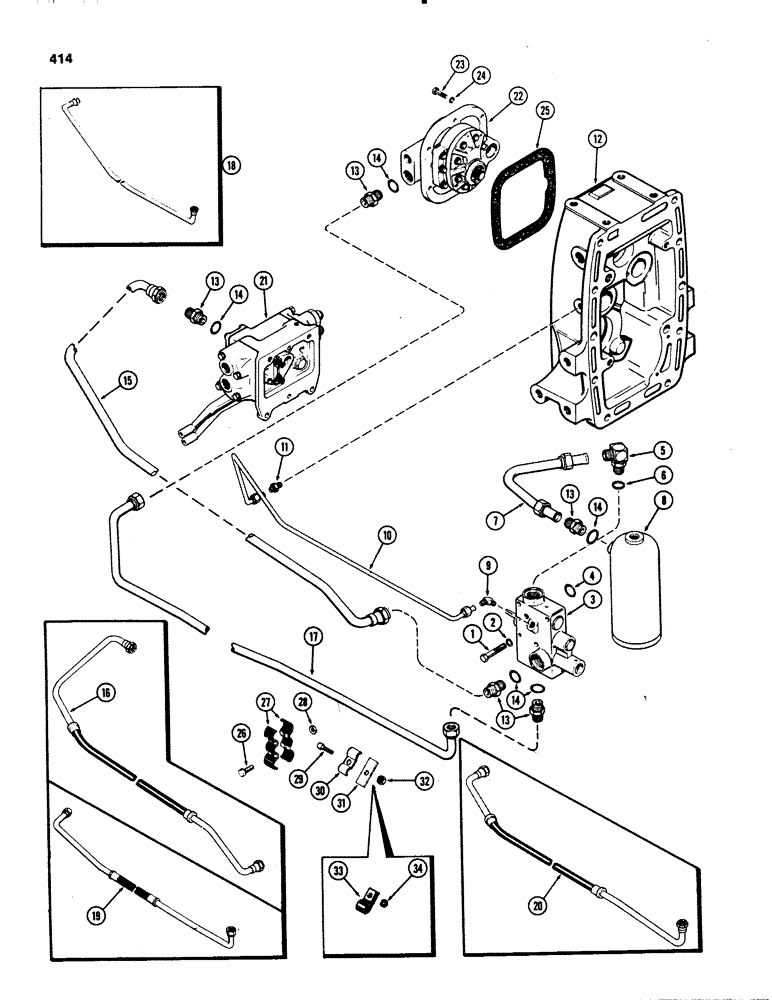

Запчасти Case IH 1070 (0414) - HYDRAULIC SYSTEM, POWER SHIFT (08) - HYDRAULICS

1

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" NC hex

2шт.

2

92-6

LOCK WASHER,3/8"

3шт.

3

REF

INSTRUCTION

VALVE ASSY - regulator (See Fig. 418)

1шт.

4

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

- 1 x 3/4 x 1/8"

1шт.

5

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY - 1-1/6" PT, 3/4" tube, Incl. Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8"

1шт.

7

A61779

TUBE

-, Serial Range: filter-valve

1шт.

8

REF

INSTRUCTION

FILTER ASSY - hydraulic oil (See Fig. 288)

1шт.

9

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

(3/8" tube) 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

10

A60289

TUBE

-, Serial Range: housing-valve

1шт.

11

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - 1/4" PT, 3/8" tube

1шт.

12

REF

INSTRUCTION

HOUSING - PTO & hydraulic pump (Order from Fig. 370)

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY - 1-1/6" Pt, 3/4" tube, Incl. Ref. 14

4шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8"

1шт.

15

A67073

TUBE

- valve to valve (Replaces A64477)

1шт.

16

A64477

TUBE

- valve to valve (50" long) (Order A67073) (1st used trac ser no. 8693001)

1шт.

16

A61861

TUBE ASSY.

TUBE - valve to valve (52-5/16" long) (Used prior to trac ser no. 8693001)

1шт.

17

A139845

TUBE

- valve to pump (Replaces A67071 & A64480)

1шт.

18

A67071

TUBE

- valve to pump (Replaces A64480) (Order A139845)

1шт.

19

A64480

TUBE

- valve to pump (Order A139845) (1st used trac ser no. 8693001)

1шт.

20

A61859

TUBE ASSY.

TUBE - valve to pump (Used prior to trac ser no. 8693001)

1шт.

21

REF

INSTRUCTION

VALVE ASSY - auxiliary (See Figures 430 - 444)

1шт.

22

REF

INSTRUCTION

PUMP ASSY - hydraulic (See Fig. 420)

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A32096

GASKET

-, Serial Range: pump-housing

1шт.

26

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

4шт.

27

A60862

CLAMP

- tube

4шт.

28

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex

4шт.

29

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

2шт.

30

A61272

CLAMP

- tube

2шт.

31

A60864

PLATE

- clamp mounting

2шт.

32

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex

2шт.

33

49855

CLAMP

CLIP - tube (Used w/A139845)

1шт.

34

92-5

LOCK WASHER,5/16"

1шт.
