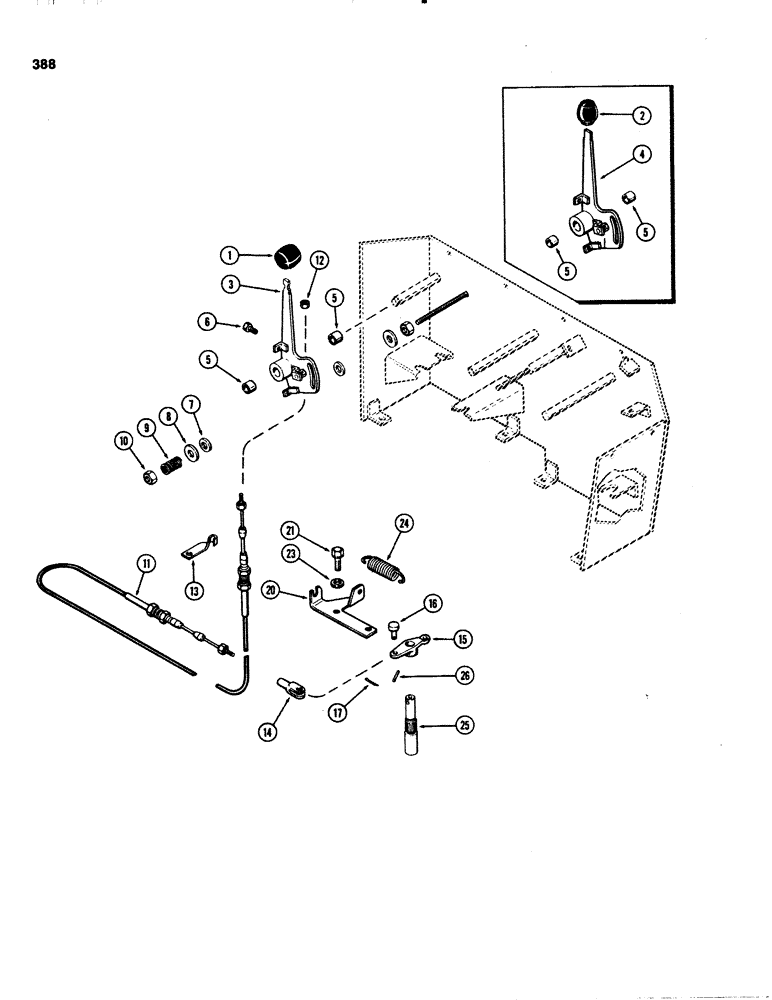

Запчасти Case IH 1070 (0388) - DRAFT SENSING CONTROLS (08) - HYDRAULICS

1

A137806

KNOB

- lever (rubber)

1шт.

2

A65699

KNOB

- lever (plastic) (Replaces A62078 & A65541)

1шт.

3

A137823

LEVER

ASSY - draft sensing (Replaces A61076)

1шт.

4

A61076

LEVER

ASSY - draft sensing (Order A137823 lever & A137806 knob), Includes: Ref. 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

6

A59463

BOLT

- 1/4 x 5/8" NF hex, nylon

2шт.

7

A61069

DISC

- washer 7/16 x 1-1/4" x 14 ga

2шт.

9

A62201

SPRING

- disc tension

1шт.

10

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" NC hex, jam

2шт.

11

A59466

CABLE

- sensing control

1шт.

12

193-1000

NUT,Keps, w/LW,#10-32

- #10 NF hex keps, w/ext shakeproof washer

1шт.

13

A59467

CLIP - cable

1шт.

14

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - 3/16", cable to lever

1шт.

15

A62176

LEVER

- sensing, lwer

1шт.

16

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16"

1шт.

17

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

20

A61064

BRACKET

- sensing cable

1шт.

21

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- 3/8 x 1-1/8" NC hex

2шт.

23

195-21

WASHER,5/16"

- 11/32 x 11/16 x 1/16"

2шт.

24

A59470

SPRING

- sensing control

1шт.

25

A59599

SHAFT - manual control

1шт.

26

138-2009

PIN,3/16" x 1", Coiled

1шт.
