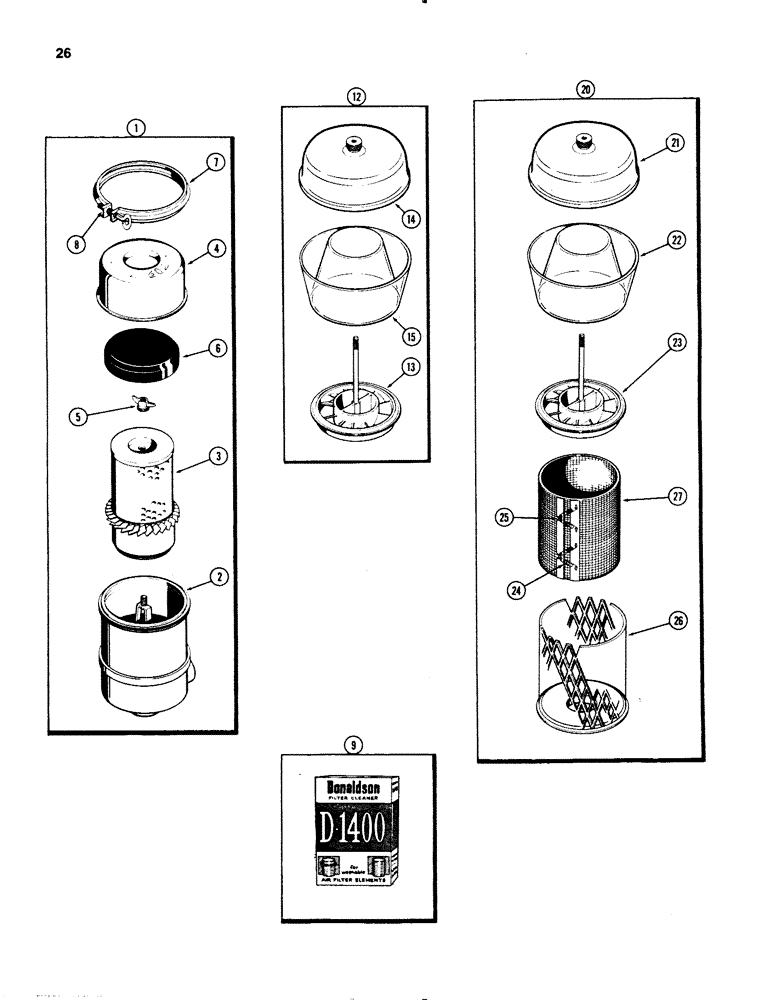

Запчасти Case IH 1070 (0026) - AIR CLEANER, 451B DIESEL ENGINE (02) - ENGINE

1

A59586

CLEANER ASSY. - air, Includes: Ref. 2 - 8, Includes Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSY. - cleaner

1шт.

3

A42226

ELEMENT

ASSY. - cleaner

1шт.

4

A40951

CUP

- dust

1шт.

5

F91761

WING NUT

& WASHER ASSY.

1шт.

6

D37979

BAFFLE

- rubber

1шт.

7

R15731

CLAMP

ASSY. - cleaner

1шт.

8

25-224

SQUARE NUT,Sq, 1/4"-20

- 1/4" N.C. hex.

1шт.

9

A40910

CLEANER

DETERGENT - air cleaner element

1шт.

12

A145674

CLEANER

PRE-CLEANER ASSY. - (1st used Trac. Ser. No. 8693001) (Replaces A64591 & A143392), Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE - (Order A145674), pre-cleaner

1шт.

14

A42465

COVER

- pre-cleaner

1шт.

15

A42467

HOUSING

BODY - pre-cleaner

1шт.

20

A61274

AIR PRE-CLEANER ASSY

PRE-CLEANER ASSY. - (used prior to trac. ser. no. 8693001), Includes: Ref. 21 - 27

1шт.

A145674

CLEANER

COLLECTOR - pre-cleaner (Replaces A42466), Includes: Ref. 21 - 23

1шт.

21

A42465

COVER

- pre-cleaner

1шт.

22

A42467

HOUSING

BODY - pre-cleaner

1шт.

23

NSS

NOT SOLD SEPARAT

SLEEVE - collector, pre-cleaner

1шт.

A42284

SCREEN

PRE-SCREENER, Includes: Ref. 24 - 27, cleaner

1шт.

24

A22780

SPRING

- screen retaining, pre-cleaner

4шт.

25

A22781

CLIP

- retaining spring, pre-cleaner

2шт.

26

NSS

NOT SOLD SEPARAT

BODY - pre-screener, cleaner

1шт.

27

A42286

SCREEN

- pre-screener, cleaner

1шт.
