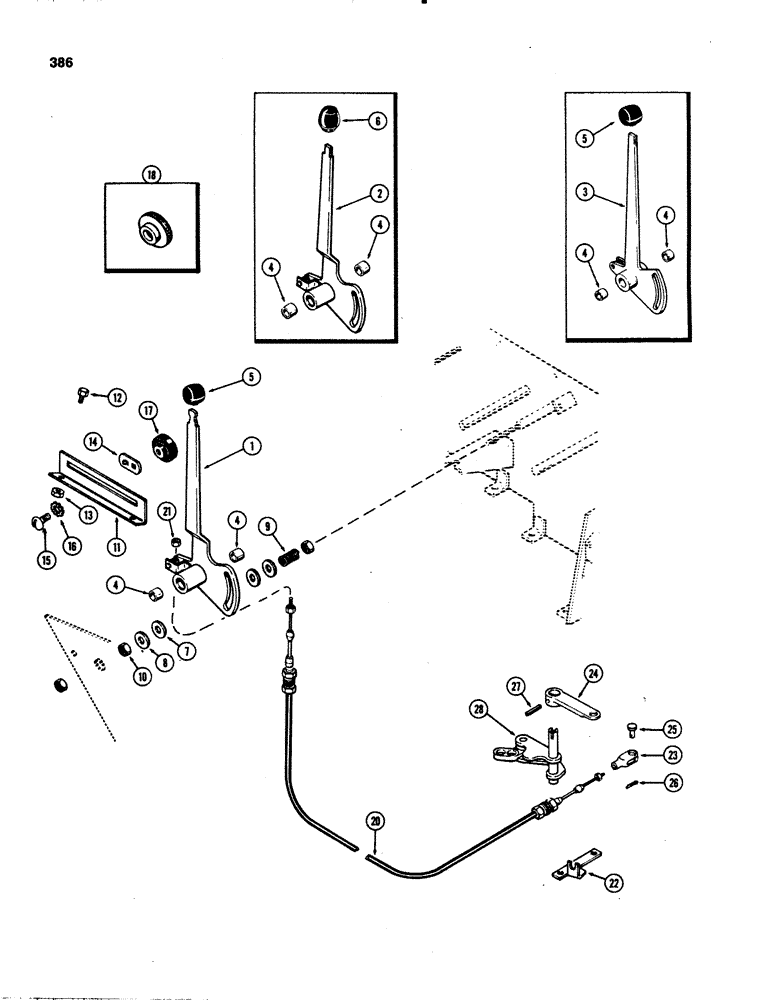

Запчасти Case IH 1070 (0386) - DRAFT CONTROLS (08) - HYDRAULICS

1

A137820

LEVER

ASSY. - hand, D.O.M. (Replaces A63033)

1шт.

2

A63033

LEVER

ASSY. - hand, D.O.M. (Order A137820 lever & A137806 knob) (1st used trac. ser. no. 8693001)

1шт.

3

A61070

LEVER ASSY. - hand, D.O.M. (Used prior to trac. ser. no. 8693001), Includes: Ref. 4

1шт.

4

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

5

A137806

KNOB

- lever (rubber)

1шт.

6

A65699

KNOB

- lever (plastic)

1шт.

7

A61069

DISC

- friction, lever

2шт.

8

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4" x 14 ga

2шт.

9

A65583

SPRING

- disc tension (Replaces A265456)

1шт.

10

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" N.C. hex, jam

2шт.

11

A59273

BRACKET

QUADRANT - lever

1шт.

12

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

13

131-113

SPRING NUT,J, Ret, 5/16"-18

- 5/16" N.C. hex

2шт.

14

G15950

STOP

- quadrant adjustable

1шт.

15

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

16

193-58

LOCK WASHER,Ext Tooth, 1/2"

WASHER - Shakeproof, 1/2" ext

2шт.

17

A143181

NUT

- knurled, stop adjusting (Plastic) (Replaces G15951)

2шт.

18

G15951

NUT

- knurled, stop adjusting (metal) (Order A143181)

2шт.

20

A63953

CABLE

- control (38")

1шт.

21

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex. Keps, w/ext. skpf. washer

1шт.

22

A61037

BRACKET

- cable

1шт.

23

213-1

ADJUSTABLE CLEVIS,#10-32

YOKE - cable to draft sensing linkage

1шт.

24

A59521

LEVER

- D.O.M.

1шт.

25

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16"

1шт.

26

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

27

138-2028

PIN,3/16" x 1 1/4", Coiled

1шт.

28

A32310

LINK

- draft sensing (Link C)

1шт.
