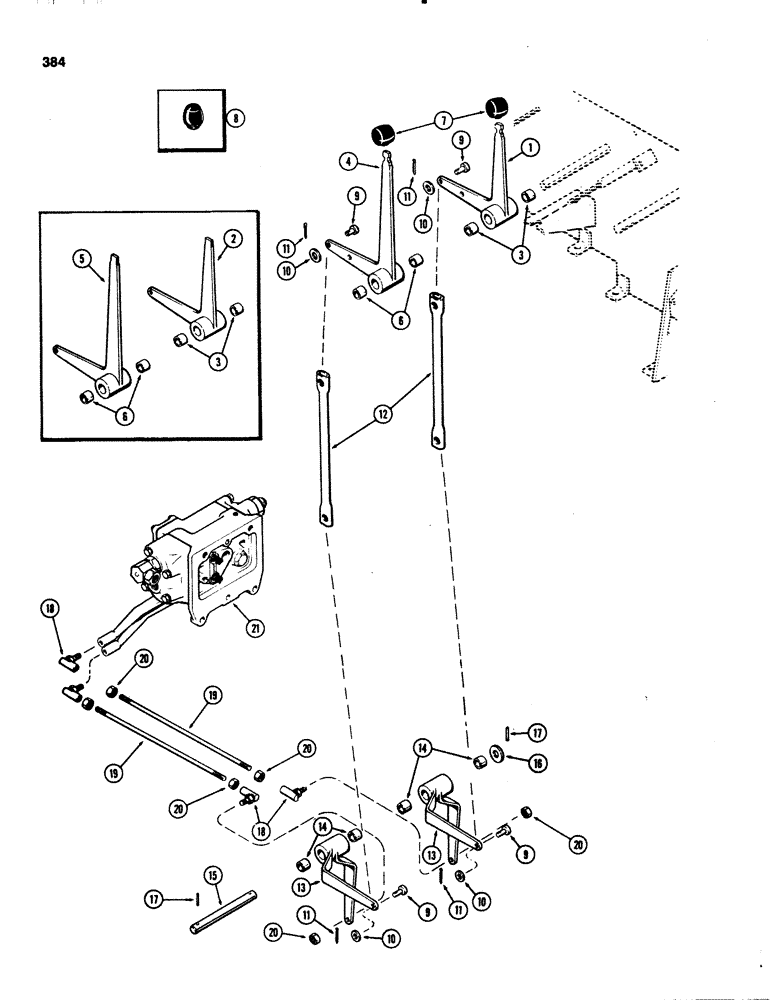

Запчасти Case IH 1070 (0384) - REMOTE HYDRAULIC CONTROLS (08) - HYDRAULICS

1

A137833

LEVER

ASSY. - remote, inner (Replaces A59525 & A63543)

1шт.

2

A63543

LEVER

ASSY. - remote, inner (Order A137833 lever & A137806 knob), Includes: Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

4

A137832

LEVER

ASSY. - remote, outer (Replaces A59523 & A63542)

1шт.

5

A63542

LEVER

ASSY. - remote, outer (Order A137832 & A137806 knob), Includes: Ref. 6

1шт.

6

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

7

A137806

KNOB

- remote levers (rubber)

2шт.

8

A65699

KNOB

- remote levers (plastic)

2шт.

9

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

10

195-21

WASHER,5/16"

- 11/32 x 11/16 x 1/16"

4шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

12

A61659

ROD

LINK - remote levers, upper

2шт.

13

A59527

LEVER ASSY. - remote, bellcrank, Includes: Ref. 13

2шт.

14

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

15

A59529

SHAFT

- lever

1шт.

16

195-41

WASHER,5/8"

1шт.

17

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

2шт.

18

A60604

BALL JOINT

- remote lever rods

4шт.

19

A59519

ROD

- remote lever, lower

2шт.

20

25-115

NUT,5/16"-24, G5

- 5/16" NF hex

6шт.

21

REF

INSTRUCTION

VALVE ASSY. - auxiliary (See Figures 426 & 428)

1шт.
