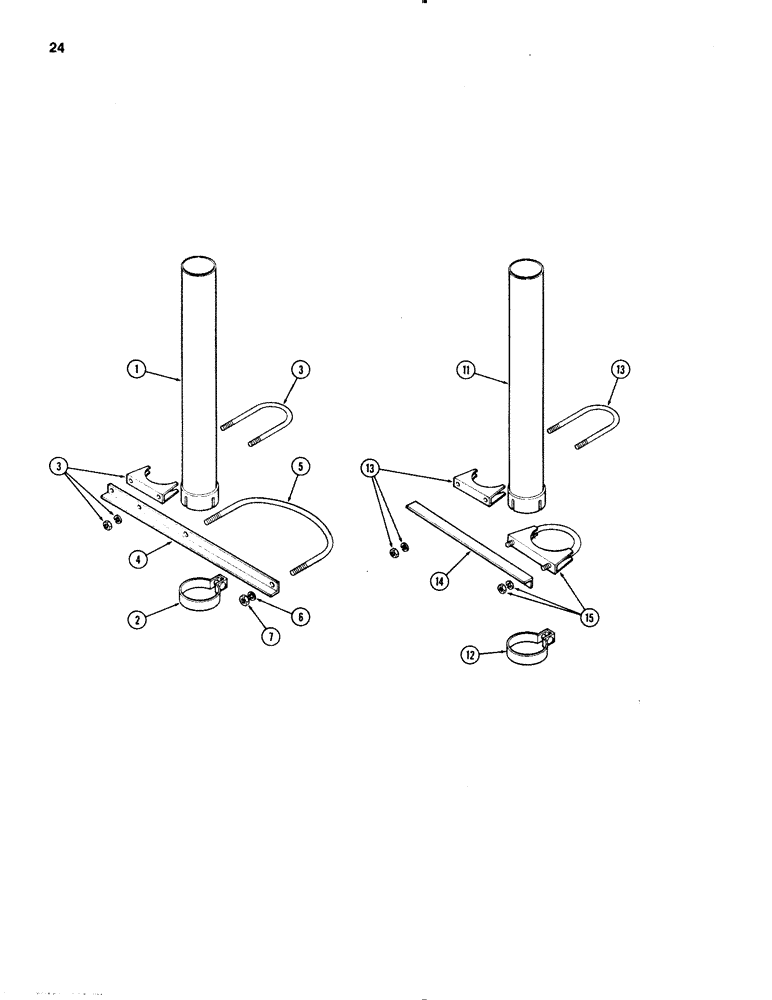

Запчасти Case IH 1070 (0024) - AIR INTAKE EXTENSIONS, 451B DIESEL ENGINE (02) - ENGINE

A66308

KIT - air intake extension (w/oval muffler) (Mach. Item), Includes Ref. 1 - 7

1шт.

1

A65000

EXTENSION - air intake tube

1шт.

2

A62125

CLAMP

- extension

1шт.

3

A64998

COLLAR CLAMP

CLAMP -, Serial Range: extension-bracket

1шт.

4

A66306

BRACKET -, Serial Range: extension-muffler

1шт.

5

A66305

CLAMP -, Serial Range: muffler-bracket

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

129-123

NUT,3/8"-24, G5

2шт.

A65002

KIT - air intake extension (w/round muffler) (Mach. Item), Includes Ref. 11 - 15

1шт.

11

A65000

EXTENSION - air intake tube

1шт.

12

A62125

CLAMP

- extension

1шт.

13

A64998

COLLAR CLAMP

CLAMP -, Serial Range: extension-bracket

1шт.

14

A65001

BRACKET -, Serial Range: extension-muffler

1шт.

15

A64801

CLAMP

-, Serial Range: muffler-bracket

1шт.
