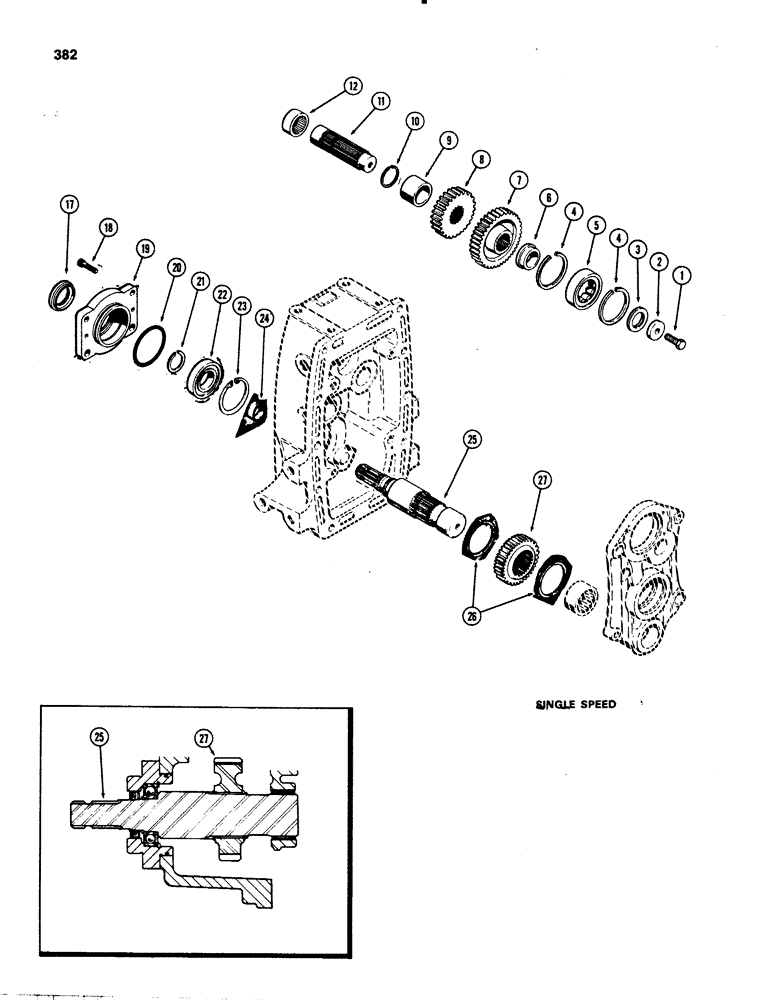

Запчасти Case IH 1070 (0382) - PTO OUTPUT AND IDLER SHAFTS, SINGLE SPEED (06) - POWER TRAIN

1

121-415

BOLT,Hex, 1/2" x 1"

- 1/2 x 1" NC hex, jay-lok

1шт.

2

A57462

WASHER

- retaining, 2nd idler shaft

1шт.

3

A57509

PLATE

- inner race

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING - snap, 2nd idler gear

2шт.

5

A32423

BEARING ASSY

BEARING - 2nd idler shaft outer race

1шт.

6

A57510

BEARING CONE,1.5748" ID x 2.245" OD x 0.74"

BEARING - single rid inner race

1шт.

7

A32408

GEAR

- driven, 2nd idler (36 teeth)

1шт.

8

A58986

GEAR

- pinion, 2nd idler driver (28 teeth)

1шт.

9

A65245

SPACER

- idler shaft (Replaces A58207)

1шт.

10

A7339

RING

- snap, 2nd idler shaft

1шт.

11

A65248

SHAFT

- 2nd idler (Replaces A58203)

1шт.

12

A57708

SEAL

BEARING - needle, 2nd idler shaft

1шт.

17

A57708

SEAL

- oil, 1-3/4 x 2-1/2 x 1/2"

1шт.

18

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

SCREW - 3/8 x 1" NC Ferry cap

2шт.

19

A62389

CARRIER - bearing, output shaft

1шт.

20

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- 4 x 4-1/4 x 1/8"

1шт.

21

A27085

RING

- snap, output shaft

1шт.

22

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball, output shaft

1шт.

23

A57921

SNAP RING,3.346", Int, #334

Ring, Snap, , output shaft 3.346", Int, #334

1шт.

24

A32419

SLEEVE CYLINDER

SLEEVE - ouput shaft oil seal, 1-5/8 x 1-3/4 x 5/8"

1шт.

25

A59026

SHAFT

- output

1шт.

26

A58234

SNAP RING,#237, 2.295", Ext

RING - snap, output shaft

2шт.

27

A59021

GEAR - output (38 internal & 32 external teeth)

1шт.
