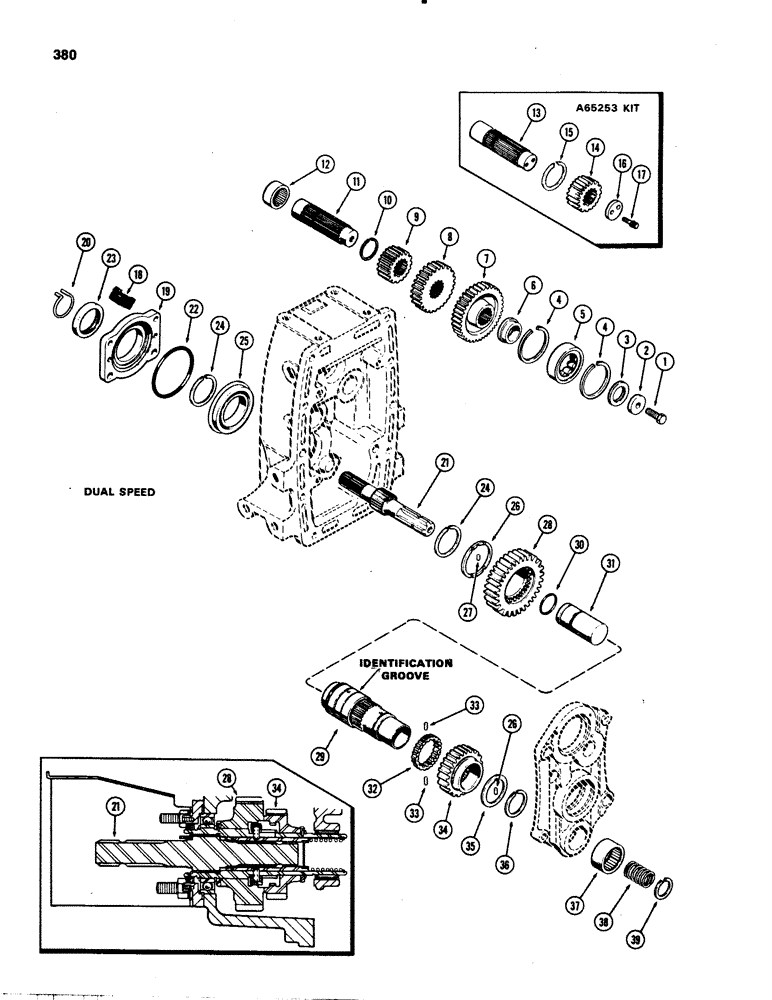

Запчасти Case IH 1070 (0380) - PTO OUTPUT AND IDLER SHAFTS, DUAL SPEED (06) - POWER TRAIN

1

121-415

BOLT,Hex, 1/2" x 1"

- 1/2 x 1" NC hex, jay-lok

1шт.

2

A57462

WASHER

- retaining, 2nd idler shaft

1шт.

3

A57509

PLATE

- inner race

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING - snap, 2nd idler gear

2шт.

5

A32423

BEARING ASSY

BEARING - outer race, 2nd idler shaft

1шт.

6

A57510

BEARING CONE,1.5748" ID x 2.245" OD x 0.74"

BEARING - single rib inner race

1шт.

7

A32408

GEAR

- driven, 2nd idler (36 teeth)

1шт.

8

A58986

GEAR

- pinion, 2nd idler driver (1000 RPM) (28 teeth)

1шт.

9

A58985

GEAR

- pinion, 2nd idler driver (540 RPM) (19 teeth) (Order A65253 kit)

1шт.

10

A7339

RING

- snap, 2nd idler shaft

1шт.

11

A65248

SHAFT

- 2nd idler (Replaces A58203)

1шт.

12

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, 2nd idler shaft

1шт.

A65253

GEAR

KIT - 2nd idler shaft & gear replacement, Includes: Ref. 13 - 17

1шт.

13

A65248

SHAFT

-2nd idler

1шт.

14

A65252

GEAR

- drive pinion (19 teeth)

1шт.

15

A7339

RING

- snap, idler shaft

1шт.

16

A65247

RETAINER

PLATE - retaining, 2nd idler shaft

1шт.

17

A65246

BOLT,Flanged, 3/8" - 16 x 1", Grade 8

SCREW - 3/8 x 1" NC 12 pt flanged cap

2шт.

18

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

SCREW - 3/8 x 3/4" NC Ferry cap

2шт.

19

A62390

RETAINER

- bearing & oil seal

1шт.

20

A61029

SNAP RING,3.48mm Thk, Int

- snap, output shaft retainer

1шт.

21

A58214

SHAFT

- dual output

1шт.

22

A58224

SEALING RING

- Tetra, bearing (4-3/4 x 5 x 9/64")

1шт.

23

A58223

OIL SEAL

- oil, 2-1/2 x 3-1/4 x 29/64"

1шт.

24

A58217

SNAP RING,#275, 2.594, Ext

RING - snap, output sleeve

2шт.

25

A58216

BALL BEARING,69.98mm ID x 110mm OD x 20mm W

BEARING - rear, output sleeve

1шт.

26

A64309

WASHER,70.28mm ID x 88.9mm OD x 5.59mm Thk

- thrust, output sleeve (Replaces A58218)

1шт.

27

138-50

LOCK PIN,1/8" x 5/16", Slotted

PIN, 1/8" x 5/16", Slotted

2шт.

28

A58996

GEAR

- output sleeve (540 RPM) (41 teeth)

1шт.

29

A65997

SLEEVE

- output shaft, w/identification groove (Replaces A58227)

1шт.

30

A59001

O-RING,1.612" ID x 1.818" OD

- 1-39/64 x 1-51/64 x 3/32"

1шт.

31

A62030

SUPPORT

- output shaft sleeve

1шт.

32

A58210

COLLAR

- shifting

1шт.

33

A62026

PIN

- shift collar

2шт.

34

A58997

GEAR

- output sleeve (1000 RPM) (32 teeth)

1шт.

35

A64308

WASHER,58.95mm ID x 76.2mm OD x 5.59mm Thk

- thrust, output sleeve (Replaces A58221)

1шт.

36

A32300

SNAP RING,#225, 2.174", Ext

RING - snap, output sleeve

1шт.

37

A58197

NEEDLE BEARING,2.25" ID x 2.6255" OD x 1.25"

BEARING - needle, output sleeve

1шт.

38

A58213

SPRING

- gear shifting

1шт.

39

A58212

RING

- snap, spring retaining

1шт.
