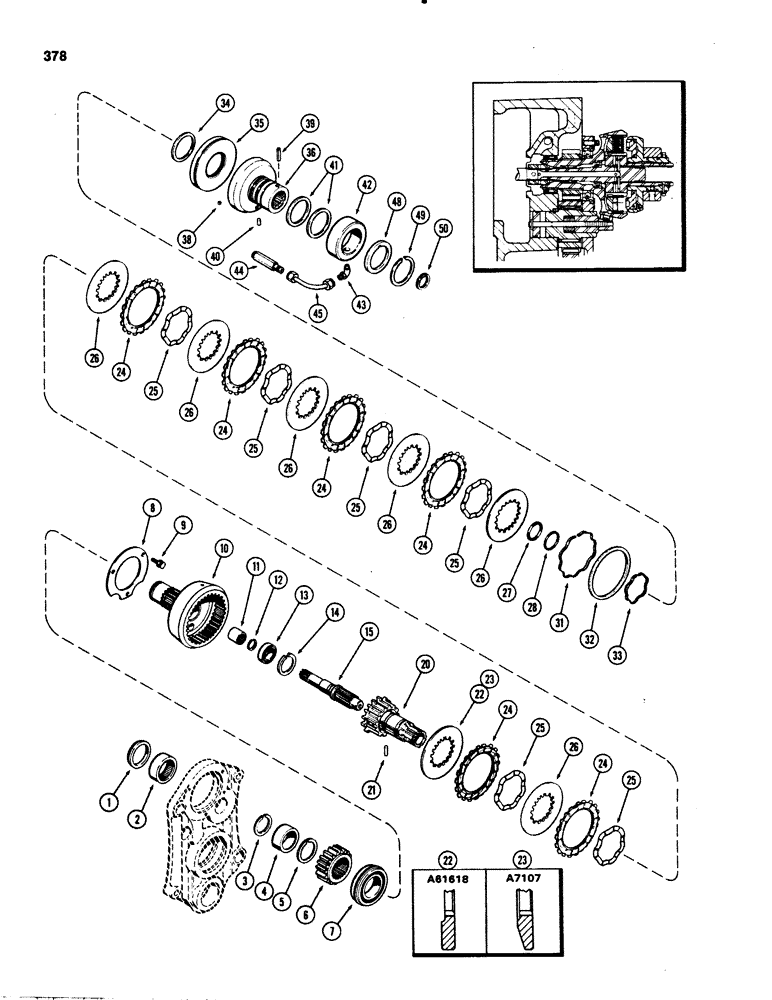

Запчасти Case IH 1070 (0378) - PTO CLUTCH & DRIVE (06) - POWER TRAIN

1

A33007

RING

- clutch drum oil restrictor

1шт.

2

A21507

NEEDLE BEARING,Needle, 52.38mm ID x 64.29mm OD x 19.05mm W

BEARING - needle, clutch drum

1шт.

3

A33323

RING

- snap, drum bearing race

1шт.

4

A33320

NEEDLE BEARING,1.8125" ID x 2.0625" OD x 1.01"

RACE - inner, drum needle bearing

1шт.

5

A32413

SNAP RING,#212, 1.997", Ext

RING - snap, pinion retaining

1шт.

6

A32435

GEAR

PINION - PTO driver

1шт.

7

A33537

BALL BEARING,54.99mm ID x 90mm OD x 18mm W

BEARING - ball, clutch drum outer

1шт.

8

A59019

RING

- clamp, outer bearing retaining

1шт.

9

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - 5/16 x 3/4" NC Ferry cap

3шт.

10

A62890

CLUTCH

DRUM ASSY - PTO clutch (Replaces A61615), Includes: Ref. 11

1шт.

11

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, clutch drum inner

1шт.

12

A32438

SNAP RING

RING - snap, bearing retaining, outer

1шт.

13

A32437

BALL BEARING,24.99mm ID x 47mm OD x 12mm W

BEARING - ball, clutch drum inner

1шт.

14

A32439

RING

- snap, bearing retaining, inner

1шт.

15

A59020

SHAFT

- drive, hydraulic pump

1шт.

20

A62199

HUB

- PTO clutch

1шт.

21

138-58

LOCK PIN,1/8" x 13/16", Slotted

Pin, 1/8" x 13/16", Slotted

1шт.

22

A61618

PLATE

- clutch backing (Used w/7 clutch plates) (1st used trans ser no. 2402975)

1шт.

23

A7101

PLATE

- clutch backing (Used w/6 clutch plates) (Used prior to trans ser no. 2402975)

1шт.

24

A66364

PLATE

- drive, sintered, (Replaces A59231)

7шт.

6 plates & springs used prior to trans. ser. no. 2402975 & used w/A701 backing plate

1шт.

25

A59013

SPRING

- clutch separator

7шт.

6 plates & springs used prior to trans. ser. no. 2402975 & used w/A701 backing plate

1шт.

26

A66365

PLATE

- driven, steel (Replaces A65425 & A57170)

7шт.

6 plates & springs used prior to trans. ser. no. 2402975 & used w/A701 backing plate

1шт.

27

A62194

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

- 1-11/16 x 1-1/2 x 3/32"

1шт.

28

A62193

O-RING,1.424" ID x 1.63" OD

- 1-7/16 x 1-5/8 x 3/32"

1шт.

31

A59012

SPRING

- expander, clutch piston

1шт.

32

A59011

RING

- seal, clutch piston

1шт.

33

A59010

SPRING

- expander, clutch piston

1шт.

34

A59009

RING

- sealing, clutch piston

1шт.

35

A59008

PISTON

- clutch

1шт.

36

A62200

CARRIER

- clutch piston

1шт.

38

211-6

BALL,7/32" Dia

- 7/32" Dia

1шт.

39

135-138

GROOVED PIN,3/16" x 5/8", Type A, Hardened

Pin, Grooved, , shearproof 3/16" x 5/8", Type A, Hardened

1шт.

40

138-2044

PIN,1/16" x 1/2", Coiled

- Spirol, 1/16 x 1/2"

1шт.

41

A59005

SEAL

RING - seal, piston carrier

2шт.

42

A59006

COLLAR

- clutch

1шт.

43

222-4047

ELBOW

- 1/4" PT, 3/8" tube

1шт.

44

A59015

CONNECTOR, ELEC

CONNECTOR ASSY - clutch feed tube (in PTO housing)

1шт.

45

A62355

TUBE

- clutch feed

1шт.

46

222-114

NUT,5/8"-24

Nut for 3/8"Tube

2шт.

47

222-104

SLEEVE,3/8" Tube

Sleeve for 3/8" Tube

1шт.

48

A62849

WASHER,58.67mm ID x 76.2mm OD x 6.35mm Thk

- retaining, clutch collar

1шт.

49

A32300

SNAP RING,#225, 2.174", Ext

RING - snap, piston carrier

1шт.

50

A62195

SNAP RING,#156K, 1.453", Ext, Spiral

RING - snap, Spirolux, piston carrier

1шт.
