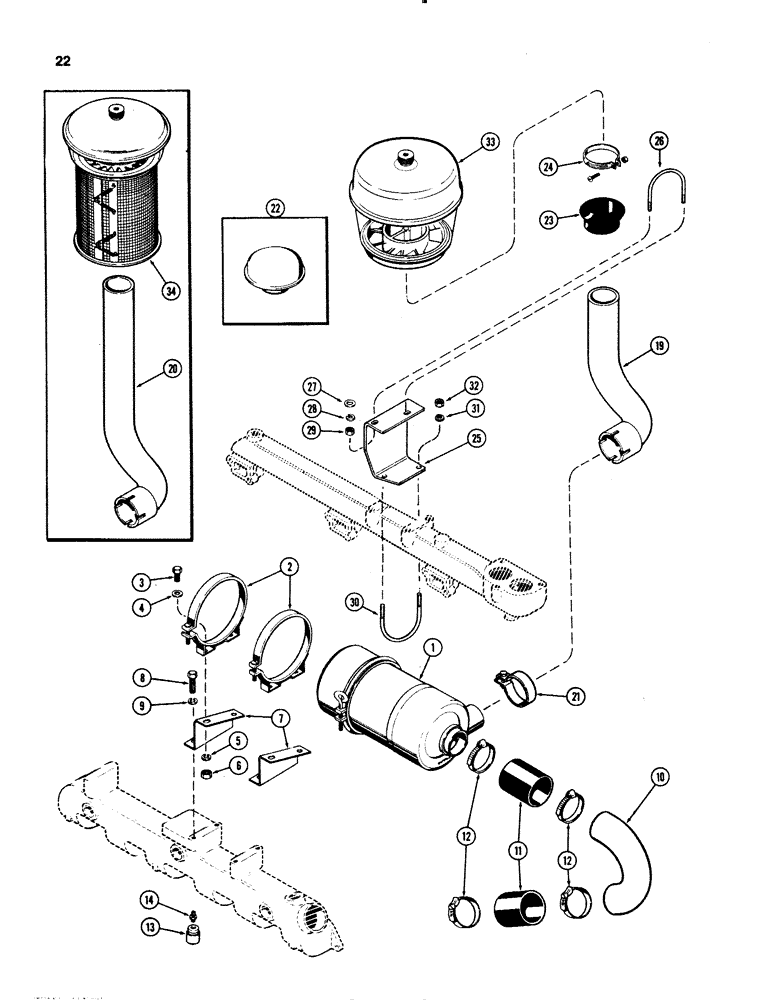

Запчасти Case IH 1070 (0022) - AIR CLEANER MOUNTING, 451B DIESEL ENGINE (02) - ENGINE

1

A59586

CLEANER ASSY - air (See Fig. 26)

1шт.

2

70973

BRACKET

BANDS - air cleaner mounting

2шт.

3

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

4

195-20

WASHER

- 5/16 x 7/8 x 1/16"

4шт.

5

92-5

LOCK WASHER,5/16"

4шт.

6

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex

4шт.

7

A59209

BRACKET

- air cleaner mounting

2шт.

8

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

A61106

TUBE

- air cleaner to intake manifold

1шт.

11

A59581

HOSE

- air intake tube

2шт.

12

214-265

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - hose, 2-5/16 to 3-1/4"

4шт.

13

A62574

INDICATOR

- air restriction

1шт.

14

D36264

FITTING

FILTER - safety

1шт.

19

A64590

TUBE

- air cleaner intake (1st used trac. ser. no. 8693001)

1шт.

20

A59582

TUBE

- air cleaner intake (Used prior to trac. ser. no. 8693001)

1шт.

21

A62125

CLAMP

- air cleaner intake tube

1шт.

22

A61277

CAP

- air stack (Used w/o pre-cleaner)

1шт.

23

A59584

GROMMET

- air cleaner intake tube

1шт.

24

214-42

CLAMP

- air cleaner tube grommet

1шт.

25

A62754

BRACKET - air cleaner tube support

1шт.

26

A59579

U-BOLT

BOLT - 1/4" NC U

1шт.

27

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

28

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

30

A62755

U-BOLT

BOLT - 5/16" NC U

1шт.

31

92-5

LOCK WASHER,5/16"

2шт.

32

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex

2шт.

33

A64591

CLEANER

PRE-CLEANER ASSY - (1st used trac. ser. no. 8693001) (Repairs Page 27)

1шт.

34

A61274

AIR PRE-CLEANER ASSY

PRE-CLEANER ASSY. - pre-screener (Used prior to trac. ser. no. 8693001) (Repairs Page 27)

1шт.
