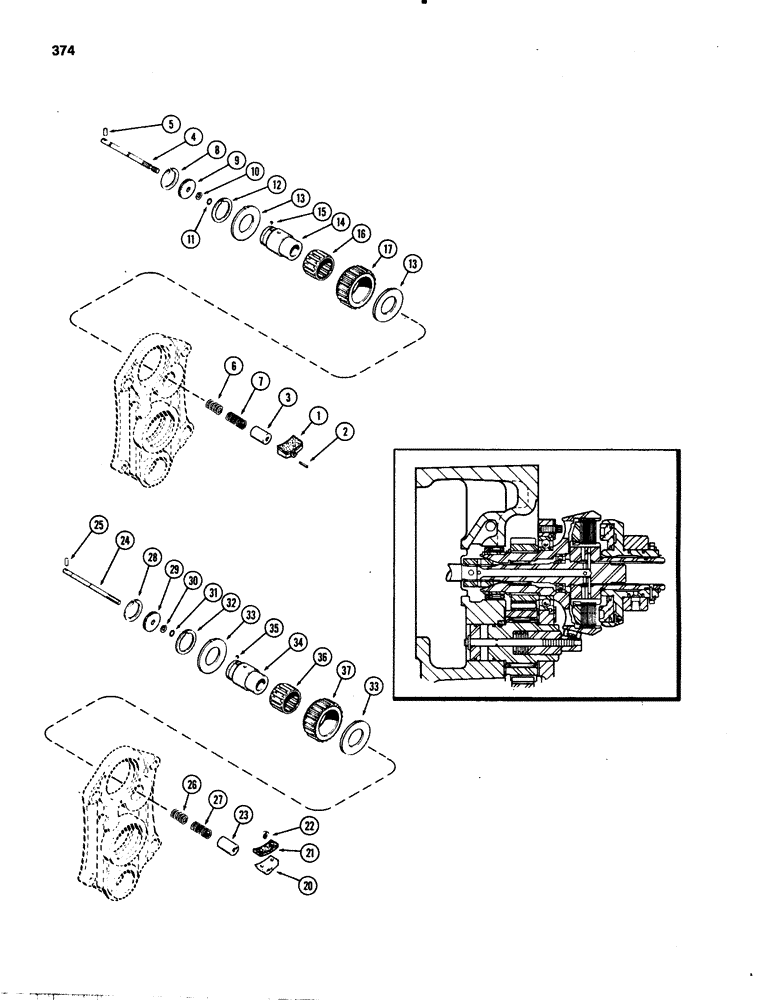

Запчасти Case IH 1070 (0374) - PTO 1ST IDLER AND BRAKE, 1ST USED TRANS SER NO. 2391485, USED PRIOR TO TRANSMISSION SER. NO. 2391485 (06) - POWER TRAIN

A152800

SHOE

ASSY - PTO brake (Replaces A58990 & A65713), Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

SHOE - brake, bonded

1шт.

2

138-2037

PIN,1/8" x 3/4", Coiled

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - brake

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - connection, brake

1шт.

5

138-2037

PIN,1/8" x 3/4", Coiled

1шт.

6

A32451

SPRING

- brake actuator, 1-3/16" free length

1шт.

7

D38446

SPRING

- brake actuating, 1-1/4" free length

1шт.

8

A58989

RING

- seal, brake release piston

1шт.

9

A58994

PISTON

- brake release

1шт.

10

G46146

SNAP RING,#37, Ext

Ring, Snap, , connection rod #37, Ext

1шт.

11

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- 1/4 x 3/8 x 1/16"

1шт.

12

A58989

RING

- seal, 1st idler shaft

1шт.

13

A32401

WASHER,44.83mm ID x 82.55mm OD x 1.6mm Thk

- 1st idler shaft

2шт.

14

A58988

SHAFT

- 1st idler

1шт.

15

211-7

BALL,1/4" Dia

chrome steel 1/4" Dia

1шт.

16

A34137

NEEDLE BEARING,2" ID x 2.3770" OD x 1.5"

BEARING - roller, 1st idler shaft

1шт.

17

A34136

GEAR

- 1st idler, 25 teeth

1шт.

A58990

SHOE

ASSY - PTO brake (Order A152800) , Includes: Ref. 20 - 24, used prior to trans. ser. No. 2391485

1шт.

20

NSS

NOT SOLD SEPARAT

SHOE - brake (Order A152800), used prior to trans. ser. No. 2391485

1шт.

21

A25599

FACING

KIT - brake shoe, Includes: Ref. 22, used prior to trans. ser. No. 2391485

1шт.

22

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - #10 x 3/8" NC self tapping, used prior to trans. ser. No. 2391485

2шт.

23

NSS

NOT SOLD SEPARAT

PISTON - PTO brake apply (Order A65713), used prior to trans. ser. No. 2391485

1шт.

24

NSS

NOT SOLD SEPARAT

ROD - connecting, brake (Order A65713), used prior to trans. ser. No. 2391485

1шт.

25

138-2037

PIN,1/8" x 3/4", Coiled

used prior to trans. ser. No. 2391485 1/8" x 3/4", Coiled

1шт.

26

A32451

SPRING

- brake actuating, 1-3/16" free length, used prior to trans. ser. No. 2391485

1шт.

27

D38446

SPRING

- brake actuating, 1-1/4" free length, used prior to trans. ser. No. 2391485

1шт.

28

A58989

RING

- seal, brake release piston, used prior to trans. ser. No. 2391485

1шт.

29

A58994

PISTON

- brake release, used prior to trans. ser. No. 2391485

1шт.

30

G46146

SNAP RING,#37, Ext

Ring, Snap, , connecting rod, used prior to trans. ser. No. 2391485 #37, Ext

1шт.

31

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- snap, connecting rod, used prior to trans. ser. No. 2391485

1шт.

32

A58989

RING

- seal, 1st idler shaft, used prior to trans. ser. No. 2391485

1шт.

33

A32401

WASHER,44.83mm ID x 82.55mm OD x 1.6mm Thk

- 1st idler shaft, used prior to trans. ser. No. 2391485

2шт.

34

A58988

SHAFT

- 1st idler, used prior to trans. ser. No. 2391485

1шт.

35

211-7

BALL,1/4" Dia

chrome steel, used prior to trans. S/N 2391485 1/4" Dia

1шт.

36

A34137

NEEDLE BEARING,2" ID x 2.3770" OD x 1.5"

BEARING - roller, 1st idler shaft, used prior to trans. ser. No. 2391485

1шт.

37

A34136

GEAR

- 1st idler, 25 teeth, used prior to trans. ser. No. 2391485

1шт.
