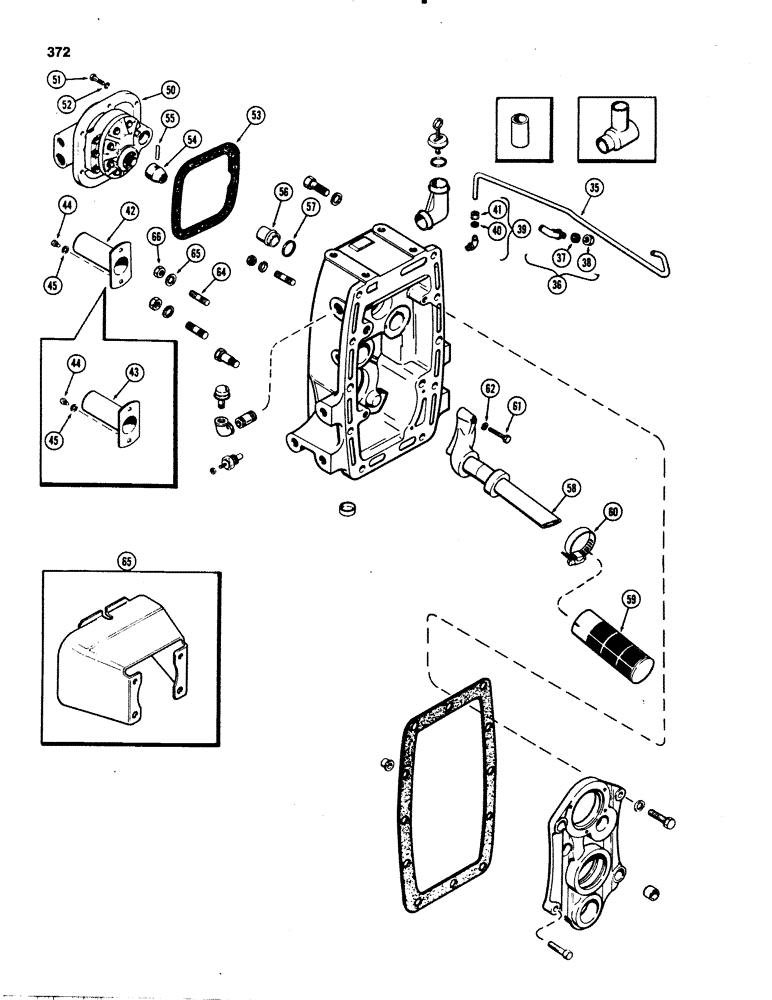

Запчасти Case IH 1070 (0372) - PTO HOUSING, WITH PTO (06) - POWER TRAIN

35

A59299

TUBE

- PTO clutch lubrication

1шт.

36

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

- 3/8" tube x 1/4" PT male, Includes: Ref. 37 and 38

1шт.

37

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

38

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

39

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

- 3/8" tube x 3/8" PT male, Includes: Ref. 40 and 41

1шт.

40

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

41

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

42

A32456

GUARD - output shaft (single speed)

1шт.

43

A58238

GUARD

- output shaft (dual speed)

1шт.

44

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

45

92-5

LOCK WASHER,5/16"

2шт.

50

REF

INSTRUCTION

PUMP ASSY - hydraulic dual (Order from Fig. 420)

1шт.

51

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

52

92-6

LOCK WASHER,3/8"

6шт.

53

A32096

GASKET

- hydraulic, Serial Range: pump-housing

1шт.

54

A32097

COUPLING, BREAK AWAY

COUPLING - pump drive

1шт.

55

138-2011

PIN,1/8" x 1 1/4", Coiled

1шт.

56

A58983

TUBE

- intake, hydraulic oil1

1шт.

57

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- intake tube (1-3/8 x 1-5/8 x 1/8")

1шт.

A61057

TUBE

SCREEN ASSY - oil suction tube, Includes: Ref. 58 - 60

1шт.

58

NSS

NOT SOLD SEPARAT

TUBE - suction (Order A61057)

1шт.

59

A60299

FILTER STRAINER

SCREEN - suctio tube

1шт.

60

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - screen, 1-3/16 to 2-3/4"

1шт.

61

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

62

92-5

LOCK WASHER,5/16"

2шт.

65

A62391

GUARD

SHIELD - PTO universal joint

1шт.
