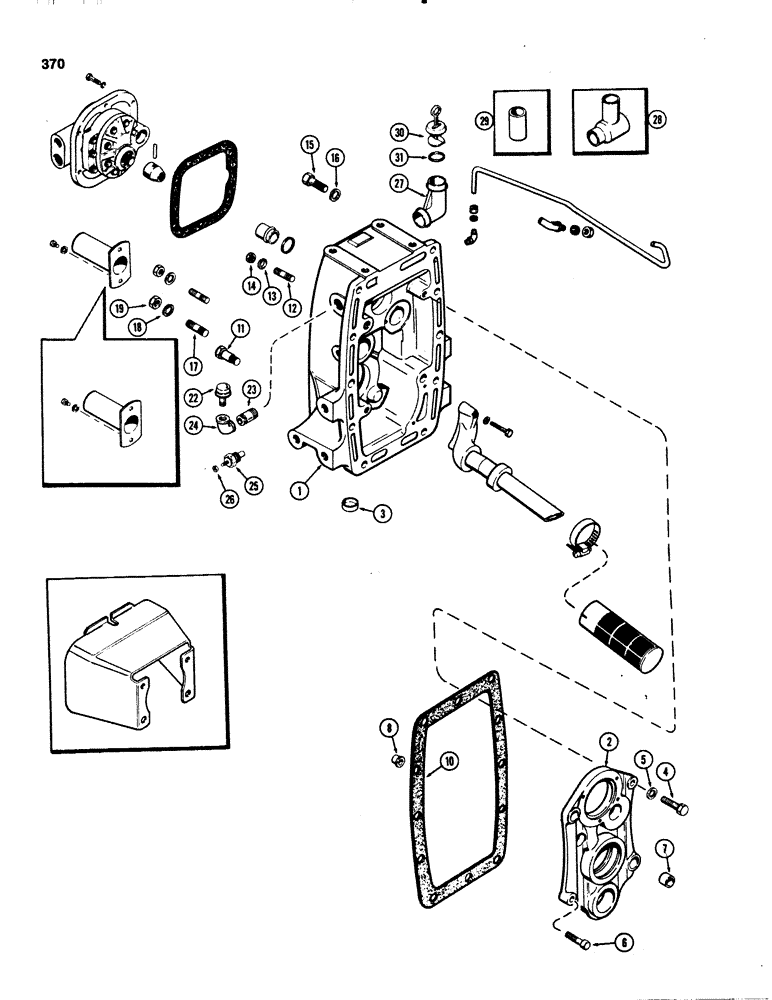

Запчасти Case IH 1070 (0370) - PTO HOUSING, WITH PTO (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
A65825
HOUSING
ASSY - (Casting No. A65824)
1шт.
A62190
HOUSING
ASSY - (Casting No. A62171) (Order A65825)
1шт.
A59028
HOUSING
ASSY - (Casting No. A58191) (Order A65825), Includes: Ref. 1 - 8
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - PTO & hydraulic pump (Order A65825)
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING - PTO bearing carrier (Order A65825)
1шт.
3
41-1020
PLUG,Cup, 1 1/4"
- lower, 1-17/64" cup type
1шт.
4
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
- 1/2 x 1-3/4" NC hex
2шт.
5
92-8
LOCK WASHER,1/2"
2шт.
6
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
2шт.
7
A50011
SLEEVE
- dowel, bearing carrier
2шт.
8
A32426
BUSHING
SPACER - bearing carrier
2шт.
10
A32461
GASKET
- PTO housing to transmission case
1шт.
11
A137225
STEP BOLT
BOLT - dowel, 5/8 x 1-3/16" NC hex (Replaces A61670)
2шт.
12
A29396
STUD
- (5/8" NC/NF x 2-7/8")
2шт.
14
25-1110
NUT,5/8"-18, G5
- 5/8" NF hex
2шт.
15
13-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd
6шт.
17
A58195
STUD
- (5/8" NC x 3-1/2")
2шт.
18
193-34
LOCK WASHER,Int Tooth, 5/8"
WASHER, LOCK, Int Tooth, 5/8"
2шт.
19
25-1010
NUT,5/8"-11, G5
2шт.
A64934
KIT
BREATHER KIT - oil, PTO housing, Includes: Ref. 22 - 24
1шт.
22
A27173
BREATHER
- oil
1шт.
23
221-211
PIPE,Nipple, 3/4" NPT x 1 3/8"
NIPPLE - breather, 3/4" PT x 1-3/8"
1шт.
24
221-395
FITTING
ELBOW - reducing, 3/4" x 1/4" PT, 90 deg.
1шт.
25
A21462
SENDER UNIT
SENDER - transmission oil temperature
1шт.
26
193-1000
NUT,Keps, w/LW,#10-32
- #10-32 hex (Sems)
1шт.
27
A66729
TUBE
- oil filler (Used w/casting nos. A62171 & A65824) (1st used trans ser no. 2452272)
1шт.
28
A62172
TUBE
- oil filler (Use w/casting no. A62171 & A65824) (Used prior to trans ser no. 2452272) (Order A66729)
1шт.
29
A59122
TUBE - oil filler (Use w/Casting No. A58191)
1шт.
30
A64404
BREATHER
ASSY - filler tube, Includes: Ref. 31
1шт.
Выбрано товаров: 32
