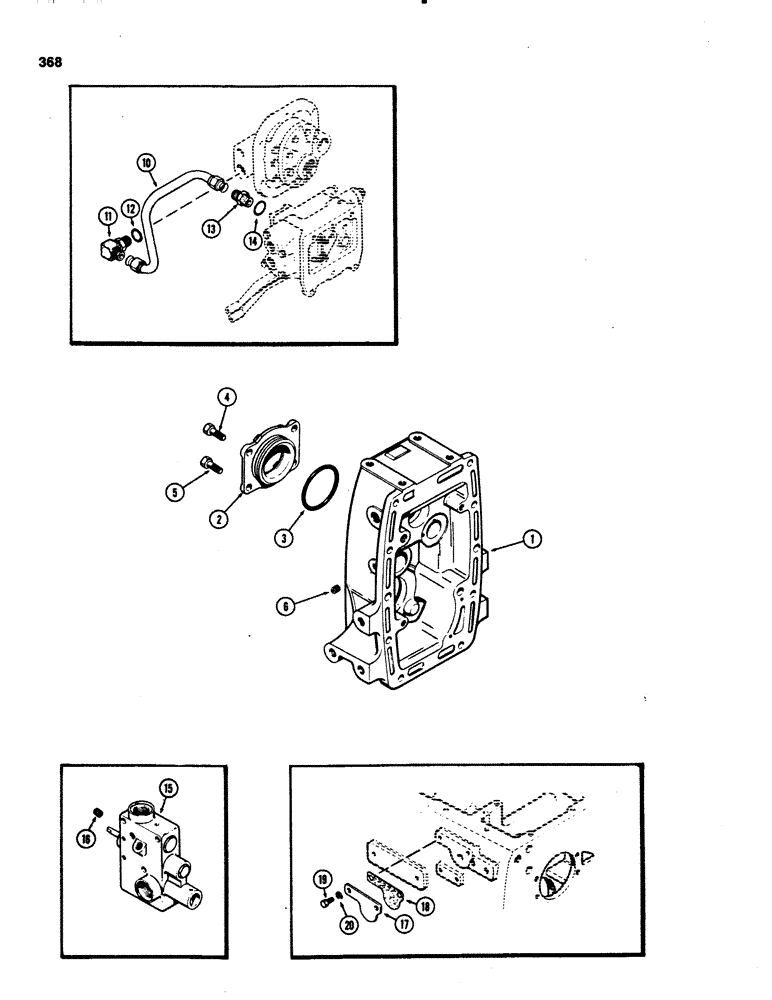

Запчасти Case IH 1070 (0368) - HYDRAULIC PARTS WITHOUT PTO (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING ASSY - hydraulic & PTO (Order from Fig. 370)

1шт.

2

A58193

COVER - PTO output shaft opening

1шт.

3

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- cover (4 x 4-1/4 x 1/8")

1шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Cover Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

5

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Cover Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

6

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

10

A60294

TUBE

- hydraulic pump to dual remote valve

1шт.

11

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- pump, 3/4" tube x 1-1/16" PT, Incl. Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8"

1шт.

13

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - valve, 3/4" tube x 1-1/6" PT, Incl. Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8"

1шт.

15

REF

INSTRUCTION

VALVE - flow divider (w/power shift) (Order from Fig. 418)

1шт.

16

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe (w/power shift w/o PTO) Hex Soc, 1/4"-18 NPTF

1шт.

17

A60295

COVER - transmission case side (w/mechanical shift w/o PTO)

1шт.

18

A60296

GASKET

- cover w/mechanical shift w/o PTO)

1шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.
