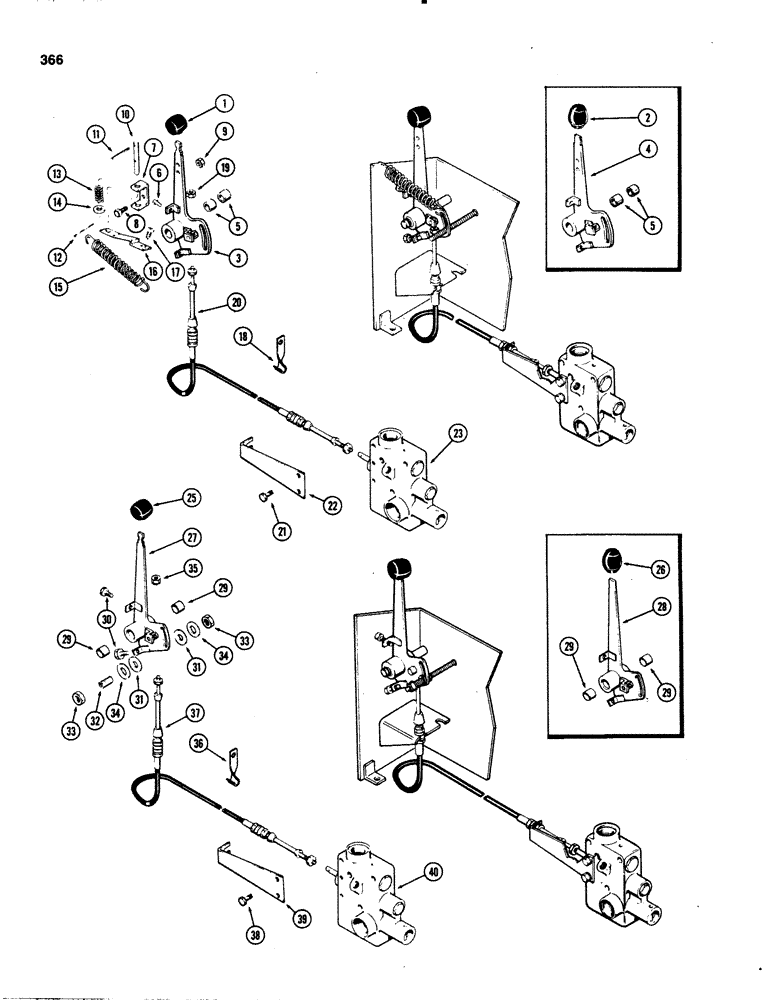

Запчасти Case IH 1070 (0366) - PTO CONTROL LINKAGE, WITH POSITIVE ON-OFF (06) - POWER TRAIN

1

A137806

KNOB

- PTO hand lever (Rubber)

1шт.

2

A65699

KNOB

- PTO hand lever (Plastic) (Replaces A62078 & A65541)

1шт.

3

A137817

LEVER

ASSY - PTO hand (Replaces A65574)

1шт.

4

A65574

LEVER

ASSY - PTO hand (Order A137817 lever & A137806 knob), Includes: Ref. 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

6

A59463

BOLT

- 1/4 x 5/8" NC hex, nylon

2шт.

A65481

KIT

- positive on & off, Includes: Ref. 7 - 17

1шт.

7

A65478

BRACKET

- hand lever

1шт.

8

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

9

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

10

A65479

PIN

- hand lever

1шт.

11

138-324

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

12

138-321

LOCK PIN,3/16" x 2", Slotted

Pin, 3/16" x 2", Slotted

1шт.

13

A137733

SPRING

- pin

1шт.

14

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16"

1шт.

15

A35789

SPRING

- return

1шт.

16

A66387

LOCK

- lever position

1шт.

17

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" Truss head self-tapping

2шт.

18

A59467

CLIP - cable

1шт.

19

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex Keps w/external shakeproof washer

1шт.

20

A59466

CABLE

- PTO control

1шт.

21

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

22

A60267

BRACKET

- PTO cable

1шт.

23

REF

INSTRUCTION

VALVE ASSY - flow divider & PTO, control (See Figure 418)

1шт.

25

A137806

KNOB

- PTO hand lever (Rubber), without positive on-off

1шт.

26

A65699

KNOB

- PTO hand lever (Plastic) (Replaces A62078 & A65541), without positive on-off

1шт.

27

A137817

LEVER

ASSY - PTO hand (Replaces A65574), without positive on-off

1шт.

28

A65574

LEVER

ASSY - PTO hand (Order A137817 lever & A137866 knob), Includes: Ref. 29, without positive on-off

1шт.

29

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever, without positive on-off

2шт.

30

A59463

BOLT

- 1/4 x 5/8" NC hex, nylon, without positive on-off

2шт.

31

A61069

DISC

- friction, 35/64 x 1-1/4 x 1/8", without positive on-off

2шт.

32

A65583

SPRING

- compression, friction disc, without positive on-off

1шт.

33

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" NC hex, top face lock, without positive on-off

2шт.

34

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 14 ga, without positive on-off

2шт.

35

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex keps w/external shakeproof washer, without positive on-off

1шт.

36

A59467

CLIP - cable, without positive on-off

1шт.

37

A59466

CABLE

- PTO control, without positive on-off

1шт.

38

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

PTO control, w/o positive on-off Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

39

A60267

BRACKET

- PTO cable, without positive on-off

1шт.

40

REF

INSTRUCTION

VALVE ASSY - flow divider & PTO control (See Figure 418), without positive on-off

1шт.
