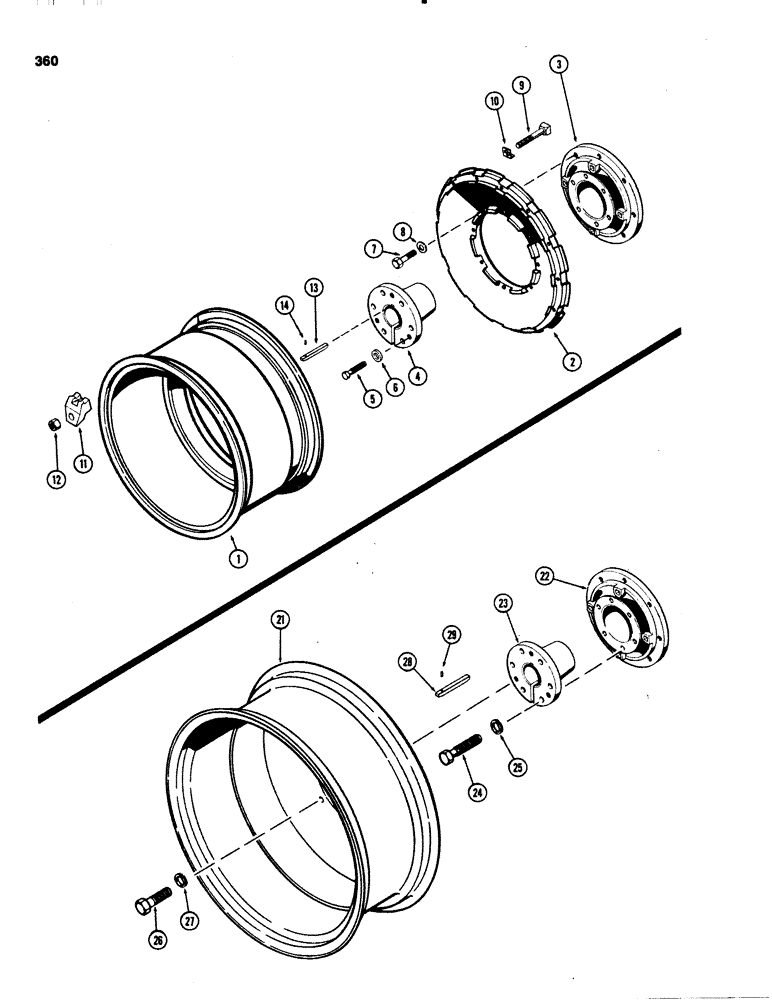

Запчасти Case IH 1070 (0360) - DUAL REAR WHEELS WITH 38 INCH RIMS, USED WITH 3-1/2 INCH DIAMETER AXLE CAST (06) - POWER TRAIN

1

A34102

RIM

- rear wheel (takes 18.4 x 38" tire)

2шт.

2

A33174

WHEEL

- rear, universal hub

2шт.

3

A59791

HUB

- universal

2шт.

4

A59792

HUB

BUSHING - rear wheel hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

6шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4"

6шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- 3/4 x 3-1/2" NC square head

16шт.

10

A34799

LOCK WASHER

- lock, wheel clamp bolt

16шт.

11

A57654

CLAMP

- double ramp type, Serial Range: rim-wheel

16шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" NC hex

16шт.

13

A34890

BUCKET TOOTH KEY

KEY -, Serial Range: hub-axle

2шт.

14

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

21

A65473

WHEEL

RIM - rear wheel (takes 18.4 x 38" tire), stamped

2шт.

22

A59791.

HUB - universal, stamped

2шт.

23

A59792

HUB

BUSHING -rear wheel hub, stamped

2шт.

24

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub, stamped

6шт.

25

D31328

WASHER

- 49/64 x 1-5/8 x 1/4", stamped

6шт.

26

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Stamped 5/8"

16шт.

28

A34890

BUCKET TOOTH KEY

KEY - hub to axle, stamped

2шт.

29

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Stamped 1/4" x 1/2", Slotted

2шт.
