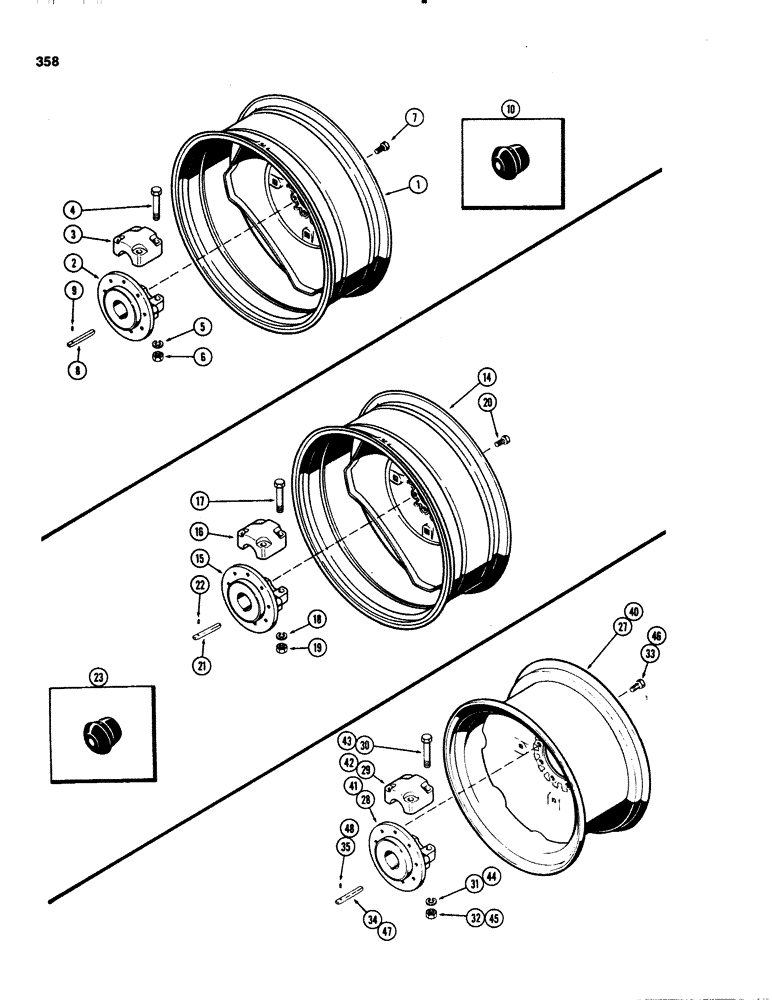

Запчасти Case IH 1070 (0358) - DUAL REAR WHEELS WITH 38 INCH RIMS, USED WITH 3-3/16 INCH DIAMETER AXLE CAST STAMPED (06) - POWER TRAIN

1

A34839

WHEEL

- dual rear (takes 15.5 x 38 tire)

2шт.

2

A34843

HUB ASSY. - dual rear wheel, Includes: Ref. 3 - 6

2шт.

3

A34837

HUB CAP

CAP - hub

1шт.

4

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- 7/8 x 6" N.F. hex

4шт.

5

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

6

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex

4шт.

7

B18264

WHEEL BOLT

BOLT -, Serial Range: wheel-hub

18шт.

8

A34890

BUCKET TOOTH KEY

KEY -, Serial Range: hub-axle

2шт.

9

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

10

A145052

PLUG

- rim (Used with tubeless tires)

2шт.

14

A34839

WHEEL

- dual rear (takes 15.5 x 38 tire), used with 3-1/2 inch diameter axle

2шт.

15

A60625

HUB

ASSY. - with 9/16" N.F. holes (Order A62565 & A62567), used with 3-1/2 inch diameter axle

2шт.

15

A62565

HUB

ASSY. - with 5/8" N.F. holes, Includes: Ref. 16 - 19, used with 3-1/2 inch diameter axle

2шт.

16

A60627

CAP

- hub, used with 3-1/2 inch diameter axle

1шт.

17

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- 7/8 x 6" N.F. hex, used with 3-1/2 inch diameter axle

4шт.

18

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Used with 3-1/2 inch diameter axle 7/8"

4шт.

19

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex, used with 3-1/2 inch diameter axle

4шт.

20

B18264

WHEEL BOLT

BOLT - wheel to hub, 9/16" N.F. x 1-5/32" , used with 3-1/2 inch diameter axle

18шт.

20

A62567

WHEEL BOLT

BOLT - wheel to hub, 5/8" N.F. x 1-1/2", used with 3-1/2 inch diameter axle

18шт.

21

A34890

BUCKET TOOTH KEY

KEY - hub to axle, used with 3-1/2 inch diameter axle

2шт.

22

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Used with 3-1/2 inch diameter axle 1/4" x 1/2", Slotted

2шт.

23

A145052

PLUG

- rim (Used with tubeless tires) , used with 3-1/2 inch diameter axle

2шт.

27

A62990

WHEEL

- dual rear, 5/16" offset (takes 18.4 x 38 tire), with 5/8" holes

2шт.

27

A60629

WHEEL - dual rear, 5-3/16" offset (takes 18.4 x 38 tire), with 5/8" holes

2шт.

28

A62565

HUB

ASSY. - with 5/8" N.F. holes, Includes: Ref. 29 - 32

2шт.

29

A60627

CAP

- hub, with 5/8" holes

1шт.

30

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- 7/8 x 6" N.F. hex, with 5/8" holes

4шт.

31

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , with 5/8 inch holes 7/8"

4шт.

32

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex, with 5/8" holes

4шт.

33

A61567

SPACER

BOLT - wheel to hub, 5/8" N.F. x 1-1/2", with 5/8" holes

18шт.

34

A34890

BUCKET TOOTH KEY

KEY - hub to axle, with 5/8" holes

2шт.

35

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , with 5/8" holes 1/4" x 1/2", Slotted

2шт.

40

A62990

WHEEL

- dual rear, 5/16" offset (takes 18.4 x 38 tire), with 9/16" holes

2шт.

40

A60629

WHEEL - dual rear, 5-3/16" offset (takes 18.4 x 38 tire), with 9/16" holes

2шт.

41

A60625

HUB

ASSY. - with 9/16 N.F. holes (Order A62565 & A62567), Includes: Ref. 42 - 45

2шт.

42

A60627

CAP

- hub, with 9/16" holes

1шт.

43

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- 7/8 x 6" N.F. hex, with 9/16" holes

4шт.

44

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , with 9/16 inch holes 7/8"

4шт.

45

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex, with 9/16" holes

4шт.

46

L13538

WHEEL BOLT

- wheel to hub, 9/16 N.F. x 1-1/2" WITH 9/16 INCH HOLES

18шт.

47

A34890

BUCKET TOOTH KEY

KEY - hub to axle WITH 9/16 INCH HOLES

2шт.

48

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , with 9/16" holes 1/4" x 1/2", Slotted

2шт.
