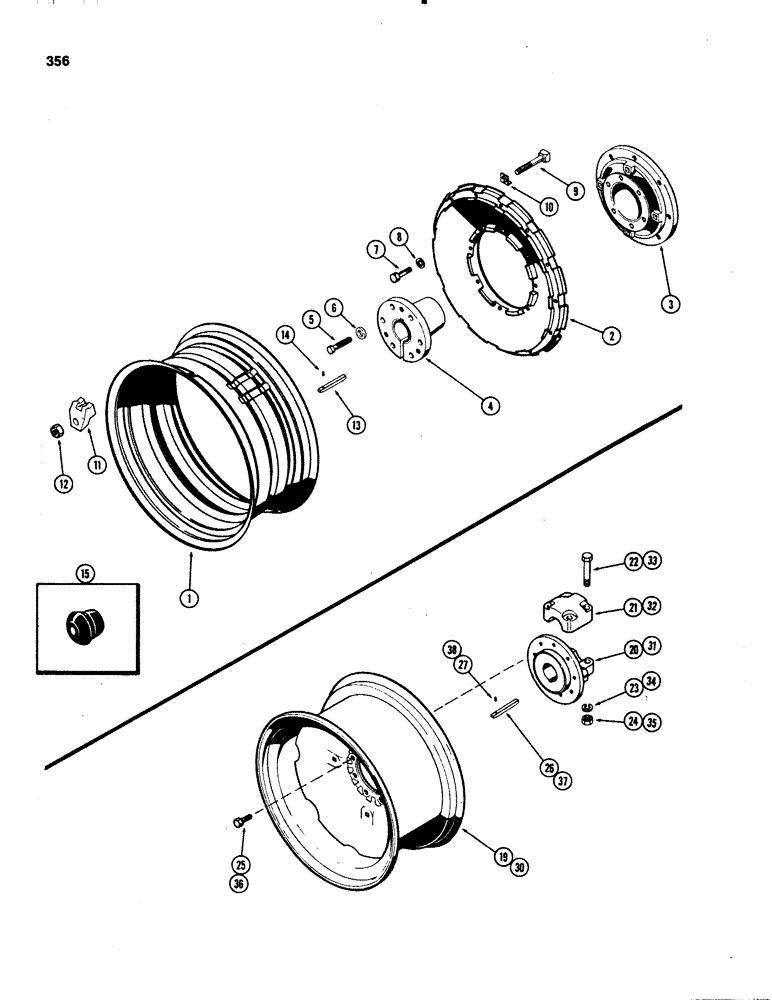

Запчасти Case IH 1070 (0356) - DUAL REAR WHEELS WITH 34 INCH RIMS, USED WITH 3-1/2 INCH DIAMETER AXLE CAST (06) - POWER TRAIN

1

A57045

RIM

- rear wheel (takes 18.4 x 34 tire)

2шт.

2

A33172

WHEEL

- rear, universal hub

2шт.

3

A59791

HUB

- universal

2шт.

4

A59792

HUB

BUSHING - wheel hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

6шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4"

6шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

- 3/4 x 3-1/2" N.C. square head

24шт.

10

A34799

LOCK WASHER

- lock, wheel clamp bolt

24шт.

11

A57654

CLAMP

- double ramp type, Serial Range: rim-wheel

24шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" N.C. hex

24шт.

13

A34890

BUCKET TOOTH KEY

KEY -, Serial Range: hub-axle

2шт.

14

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

15

A145052

PLUG

- rim (used with tubelss tires)

2шт.

19

A60628

RIM

WHEEL - rear (5-1/2" offset) (takes 18.4 x 34 tire), stamped with 5/8 inch holes

2шт.

20

A62565

HUB

ASSY - with 5/8" N.F. holes, Includes: Ref. 21 - 24, stamped with 5/8 inch holes

2шт.

21

A60627

CAP

- hub, stamped with 5/8 inch holes

1шт.

22

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- 7/8 x 6" N.F. hex, stamped with 5/8 inch holes

4шт.

23

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Stamped, with 5/8 inch holes 7/8"

4шт.

24

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex, stamped with 5/8 inch holes

4шт.

25

A62567

WHEEL BOLT

BOLT - wheel to hub, 5/8" N.F. x 1-1/2", stamped with 5/8 inch holes

18шт.

26

A34890

BUCKET TOOTH KEY

KEY - hub to axle, stamped with 5/8 inch holes

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Stamped with 5/8 inch holes 1/4" x 1/2", Slotted

2шт.

30

A60628

RIM

WHEEL - rear (5-1/2" offset)(takes 18.4 x 34 tire), with 9/16 inch holes

2шт.

31

A60625

HUB

ASSY - with 9/16" N.F. holes (Order A62565 & A62567)

2шт.

32

A60627

CAP

- hub, with 9/16 inch holes

1шт.

33

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

- 7/8 x 6" N.F. hex, with 9/16 inch holes

4шт.

34

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , with 9/16 inch holes 7/8"

4шт.

35

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex, with 9/16 inch holes

4шт.

36

L13538

WHEEL BOLT

- wheel to hub, 9/16" N.F. x 1-1/2", with 9/16 inch holes

18шт.

37

A34890

BUCKET TOOTH KEY

KEY - hub to axle, with 9/16 inch holes

2шт.

38

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , with 9/16 inch holes 1/4" x 1/2", Slotted

2шт.
