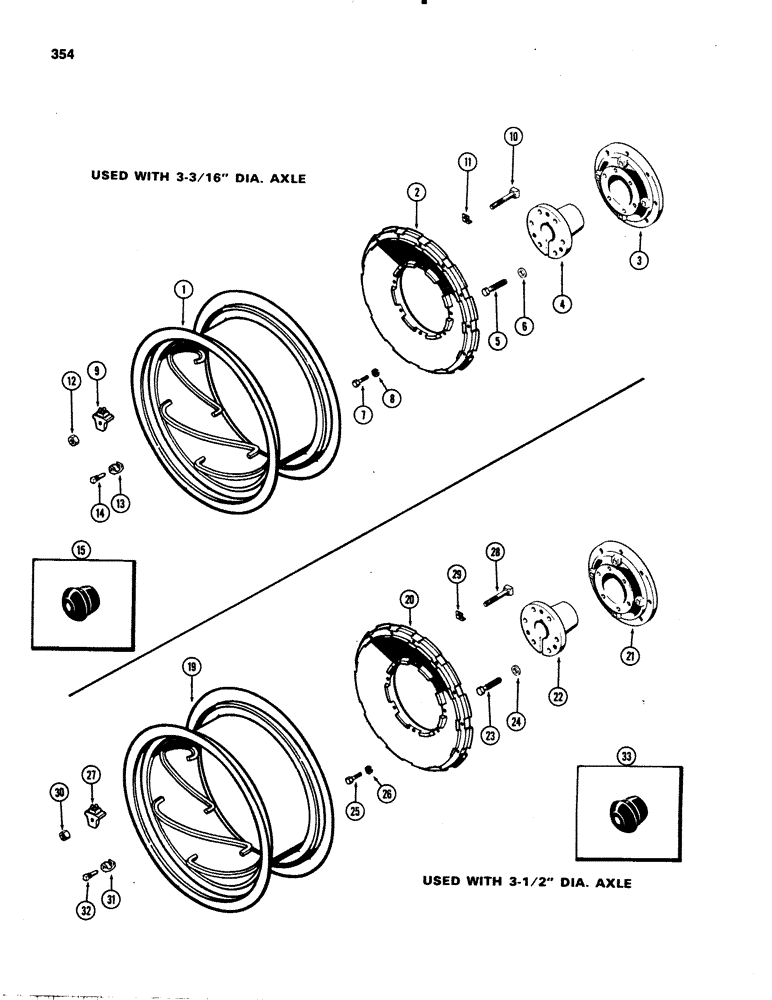

Запчасти Case IH 1070 (0354) - REAR WHEELS WITH 38 INCH RIMS, POWER ADJUSTABLE, USED WITH 3-3-16 INCH DIAMETER AXLE (06) - POWER TRAIN

1

A11076

DISC, WHEEL

RIM - rear wheel (takes 14.9 x 38 or 15.5 x 38 tire)

2шт.

2

A33174

WHEEL

- rear, universal hub

2шт.

3

A59789

HUB

- universal

2шт.

4

A57993

BUSHING

- universal hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

12шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4"

12шт.

7

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8 x 2-3/4" N.C. hex

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

A33171

CLAMP

- double ramp type, Serial Range: rim-wheel

12шт.

10

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- 3/4 x 3" N.C. square head

12шт.

11

A34799

LOCK WASHER

- lock, wheel clamp bolt

12шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" N.C. hex

12шт.

13

A9406

STOP

LUG - rim stop

4шт.

14

A9440

STOP

SCREW - lock, stop lug

4шт.

15

A145052

PLUG

- rim (Used with tubeless tires)

2шт.

19

A11076

DISC, WHEEL

RIM - rear wheel (takes 14.9 x 38 or 15.5 x 38 tire), used with 3-1/2 inch diameter axle

2шт.

20

A33174

WHEEL

- rear, universal hub, used with 3-1/2 inch diameter axle

2шт.

21

A59791

HUB

- universal, used with 3-1/2 inch diameter axle

2шт.

22

A59792

HUB

BUSHING - rear wheel hub, used with 3-1/2 inch diameter axle

2шт.

23

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub, used with 3-1/2 inch diameter axle

12шт.

24

D31328

WASHER

- 49/64 x 1-5/8 x 1/4", used with 3-1/2 inch diameter axle

12шт.

25

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8 x 2-3/4" N.C. hex, used with 3-1/2 inch diameter axle

16шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used with 3-1/2 inch diameter axle 5/8"

16шт.

27

A33171

CLAMP

- double ramp type, rim to wheel, used with 3-1/2 inch diameter axle

12шт.

28

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- 3/4 x 3" N.C. square head, used with 3-1/2 inch diameter axle

12шт.

29

A34799

LOCK WASHER

- lock, wheel clamp bolt, used with 3-1/2 inch diameter axle

12шт.

30

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" N.C. hex, used with 3-1/2 inch diameter axle

12шт.

31

A9406

STOP

LUG - rim stop, used with 3-1/2 inch diameter axle

4шт.

32

A9440

STOP

SCREW - lock, stop lug, used with 3-1/2 inch diameter axle

4шт.

33

A145052

PLUG

- rim (Used with tubeless tires), used with 3-1/2 inch diameter axle

2шт.
