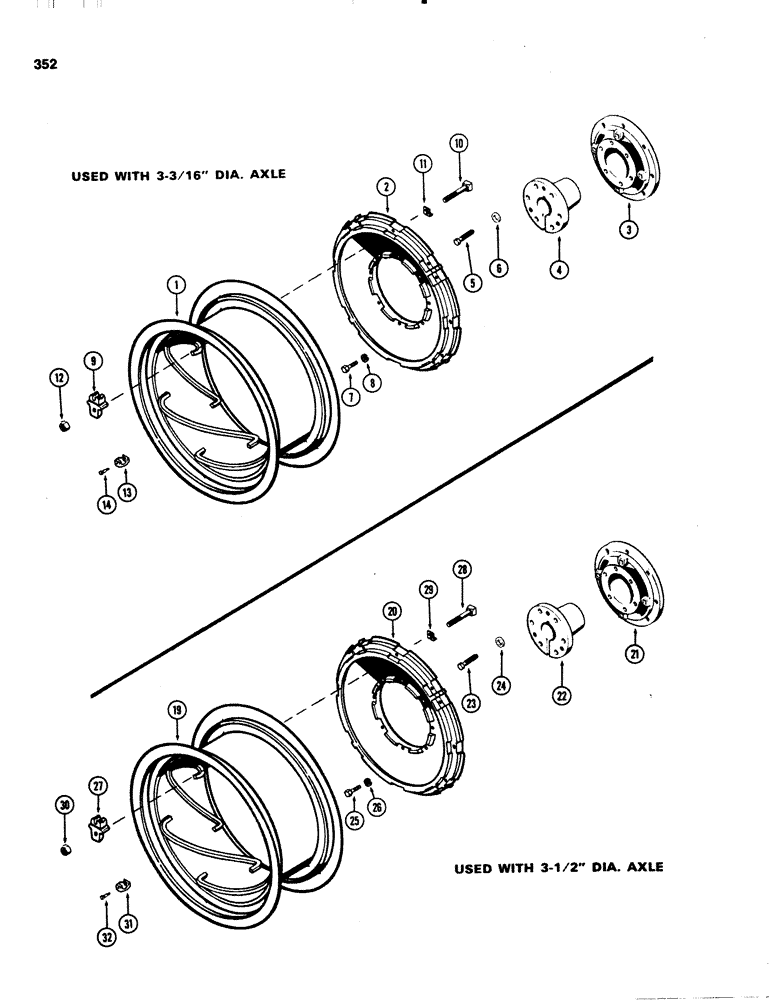

Запчасти Case IH 1070 (0352) - REAR WHEELS WITH 34 INCH RIMS, POWER ADJUSTABLE, USED WITH 3-3/16" DIAMETER AXLE (06) - POWER TRAIN

1

A33170

RIM

- rear wheel (takes 16.9 x 34 tire)

2шт.

2

A33172

WHEEL

- rear, universal hub

2шт.

3

A59789

HUB

- universal

2шт.

4

A57993

BUSHING

- rear wheel hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

12шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4"

12шт.

7

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8 x 2-3/4" NC hex

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

A33171

CLAMP

- double ramp type, Serial Range: rim-wheel

12шт.

10

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- 3/4 x 3" NC square head

12шт.

11

A34799

LOCK WASHER

- lock, wheel clamp bolt

12шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" NC hex

12шт.

13

A9406

STOP

LUG - rim stop

4шт.

14

A9440

STOP

SCREW - lock, stop lug

4шт.

19

A33170

RIM

- rea wheel (takes 16.9 x 34 tire), used with 3-1/2 inch diameter axle

2шт.

20

A33172

WHEEL

- rear, universal hub, used with 3-1/2 inch diameter axle

2шт.

21

A59791

HUB

- universal, used with 3-1/2 inch diameter axle

2шт.

22

A59792

HUB

BUSHING - rear wheel hub, used with 3-1/2 inch diameter axle

2шт.

23

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub, used with 3-1/2 inch diameter axle

12шт.

24

D31328

WASHER

- 49/64 x 1-5/8 x 1/4, used with 3-1/2 inch diameter axle

12шт.

25

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8 x 2-3/4" NC hex, used with 3-1/2 inch diameter axle

16шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used with 3-1/2 inch diameter axle 5/8"

16шт.

27

A33171

CLAMP

-double ramp type, rim to wheel, used with 3-1/2 inch diameter axle

12шт.

28

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

- 3/4 x 3" NC square head, used with 3-1/2 inch diameter axle

12шт.

29

A24799

WASHER - lock, wheel clamp bolt, used with 3-1/2 inch diameter axle

12шт.

30

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" NC hex, used with 3-1/2 inch diameter axle

12шт.

31

A9406

STOP

LUG - rim stop, used with 3-1/2 inch diameter axle

4шт.

32

A9440

STOP

SCREW - lock, stop lug, used with 3-1/2 inch diameter axle

4шт.
