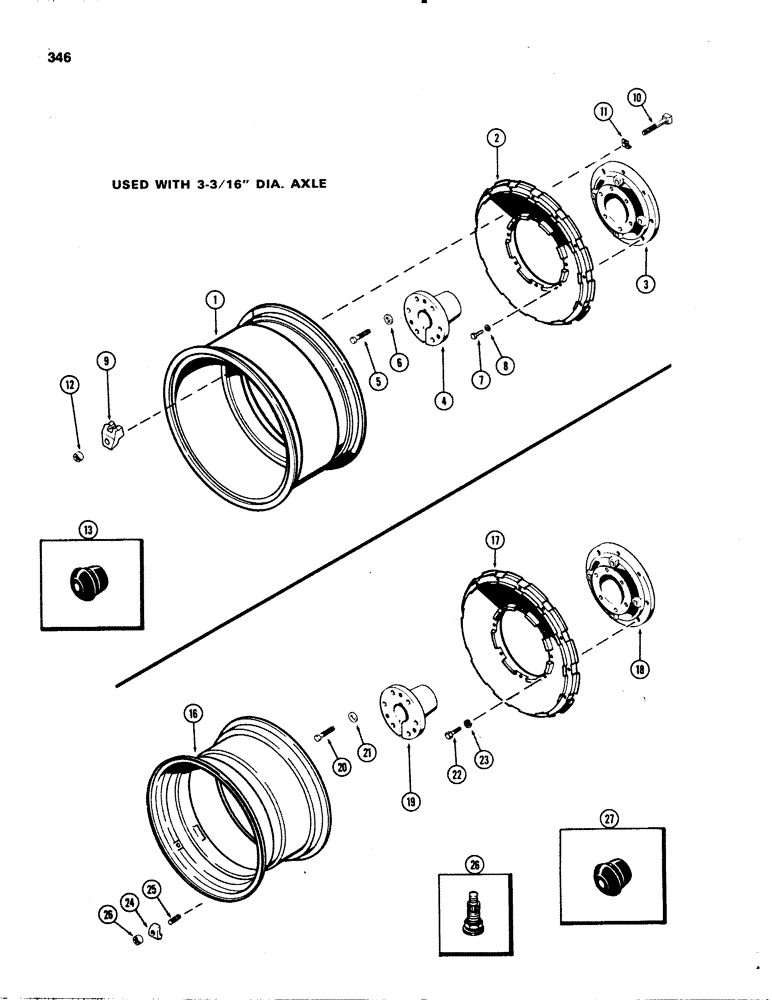

Запчасти Case IH 1070 (0346) - REAR WHEELS WITH 34 INCH RIMS, MANUAL ADJUSTBLE, USED WITH 3-3/16" DIAMETER AXLE (06) - POWER TRAIN

1

A33168

RIM

- rear wheel (takes 16.9 x 34 tire)

2шт.

1

A57045

RIM

- rear wheel (takes 18.4 x 34 tire)

2шт.

1

A63810

RIM

- rear wheel (takes 20.8 x 34 tire)

2шт.

2

A33172

WHEEL

- rear, universal hub

2шт.

3

A59789

HUB

- universal

2шт.

4

A57993

BUSHING

- rear wheel hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

12шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4"

12шт.

7

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8 x 2-3/4" N.C. hex

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

A57654

CLAMP

- double ramp type, Serial Range: rim-wheel

24шт.

10

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

-3/4 x 3-1/2" N.C. hex

24шт.

11

A34799

LOCK WASHER

- lock, rim to clamp bolt

24шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

- 3/4" N.C. hex

24шт.

13

A145052

PLUG

- rim (Used w/tubeless tires)

2шт.

16

A33460

RIM

- rear wheel (takes 23.1 x 34 tires)

2шт.

17

A57686

WHEEL

- rear, universal hub

2шт.

18

A59789

HUB

- universal

2шт.

19

A57993

BUSHING

- rear wheel hub

2шт.

20

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

12шт.

21

D31328

WASHER

- 49/64 x 1-5/8 x 1/4"

12шт.

22

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- 5/8 x 2-3/4" N.C. hex

16шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

24

F62001

CLAMP

-, Serial Range: rim-wheel

16шт.

25

A60047

STUD

- 5/8" N.C. x 2-7/16"

16шт.

26

A27183

NUT

- 5/8" N.C. hex

16шт.

27

A20058

VALVE STEM

- Tubeless tire

2шт.

28

A145052

PLUG

- rim (Used w/tubless tires)

2шт.
