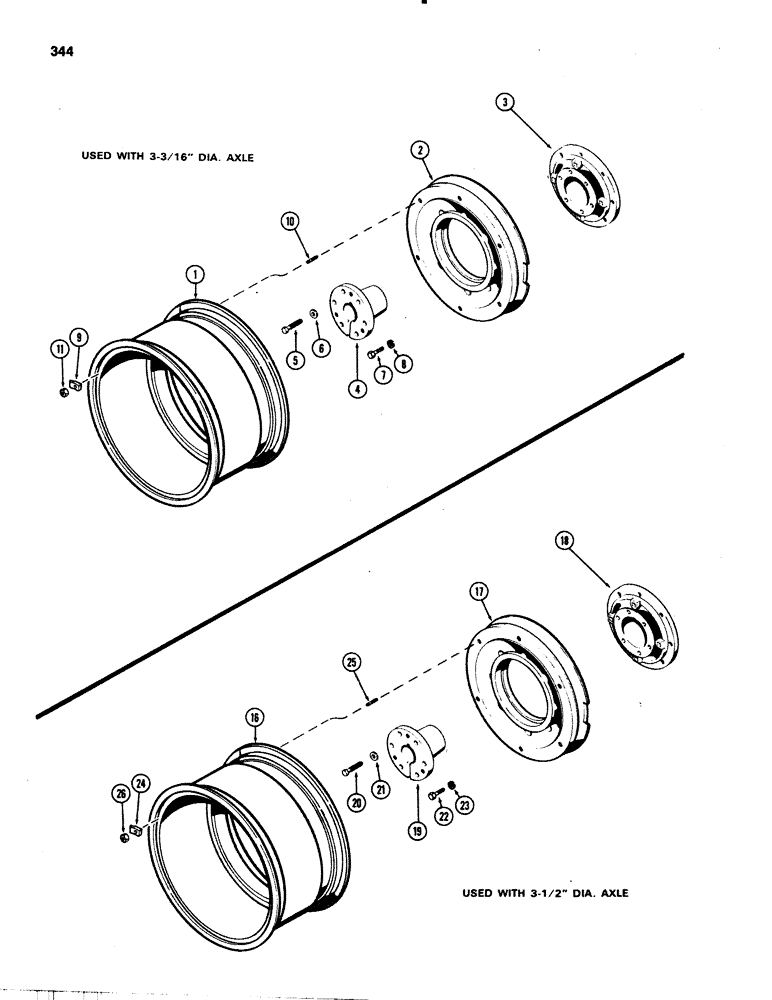

Запчасти Case IH 1070 (0344) - REAR WHEELS WITH 30 INCH RIMS, MANUAL ADJUSTABLE, USED WITH 3-3/16 INCH DIAMETER AXLE (06) - POWER TRAIN

1

A33176

RIM

- rear wheel (takes 23.1 x 30 tire)

2шт.

2

A33175

WHEEL

- rear, universal hub

2шт.

3

A59789

HUB

- universal

2шт.

4

A57993

BUSHING

- rear wheel hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub

12шт.

6

D31328

WASHER

- 49/64 x 1-5/8 x 1/4"

12шт.

7

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

F62001

CLAMP

-, Serial Range: rim-wheel

12шт.

10

A60047

STUD

- 5/8" NC x 2-7/16"

12шт.

11

A27183

NUT

- 5/8" NC hex, special

12шт.

16

A33176

RIM

- rear wheel (takes 23.1 x 30 tire), used with 3-1/2 inch diameter

2шт.

17

A33175

WHEEL

- rear, unversal hub, used with 3-1/2 inch diameter

2шт.

18

A59791

HUB

- universal, used with 3-1/2 inch diameter

2шт.

19

A59792

HUB

BUSHING - rear wheel hub, used with 3-1/2 inch diameter

2шт.

20

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT - bushing to hub, used with 3-1/2 inch diameter

12шт.

21

D31328

WASHER

- 49/64 x 1-5/8 x 1/4", used with 3-1/2 inch diameter

12шт.

22

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Used with 3-1/2 inch diameter Hex, 5/8"-11 x 2 1/4", G5

16шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used with 3-1/2 inch diameter 5/8"

16шт.

24

F62001

CLAMP

- rim to wheel, used with 3-1/2 inch diameter

12шт.

25

A60047

STUD

- 5/8" NC x 2-7/16", used with 3-1/2 inch diameter

12шт.

26

A27183

NUT

- 5/8" NC hex, special, used with 3-1/2 inch diameter

12шт.
