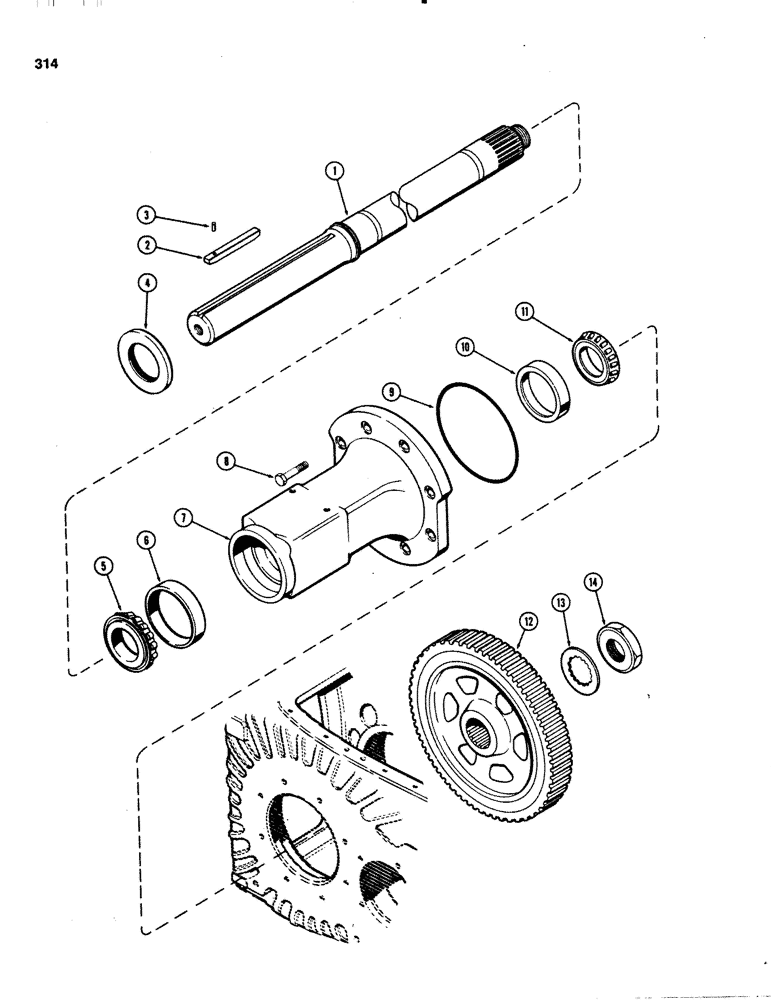

Запчасти Case IH 1070 (0314) - 118 INCH REAR AXLE, LONG, 3-1/2 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN

1

A59047

SHAFT

- rea axle (3-1/2 diameter) (118" long)

2шт.

2

A34890

BUCKET TOOTH KEY

KEY - axle

2шт.

3

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN - roll, 1/4 x 1-3/8"

2шт.

4

A59046

OIL SEAL

- oil

2шт.

5

A59049

ROLLER BEARING

CONE - bearing, housing outer (3-9/16" ID)

2шт.

6

A59048

BEARING CUP

CUP - bearing, housing outer (5-11/16" OD)

2шт.

7

A62283

HOUSING

- rear axle

2шт.

8

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- 5/8 x 2" NC hex

16шт.

9

A33050

OIL SEAL

- oil

2шт.

10

A50324

BEARING CUP

CUP - bearing, housing inner (5-1/4" OD)

2шт.

11

A34339

BEARING

CONE - bearing, housing inner (3-1/4" ID)

2шт.

12

A32805

GEAR

- final drive

2шт.

13

A32806

LOCK WASHER

- lock

2шт.

14

A23386

NUT

- lock

2шт.
