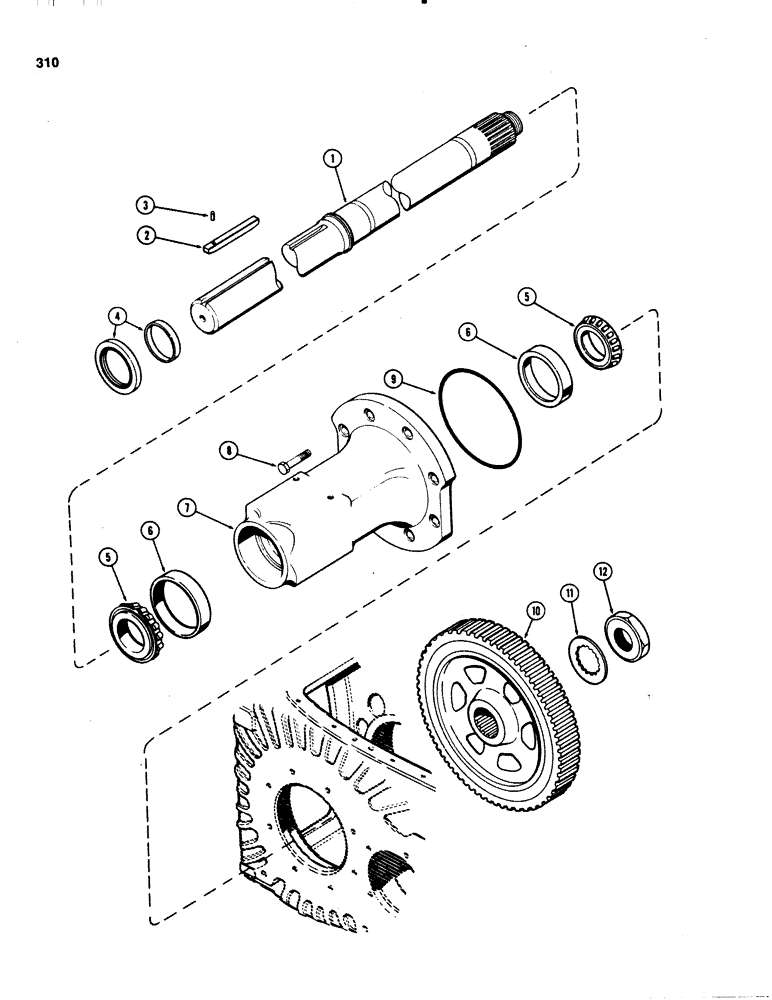

Запчасти Case IH 1070 (0310) - 88 INCH REAR AXLE, SHORT, 3-3/16 INCH DIAMETER AXLE SHAFT (06) - POWER TRAIN

1

A57646

SHAFT

- rear axle (3-3/16 diameter) (40-3/4" long)

2шт.

2

A34890

BUCKET TOOTH KEY

KEY - axle

2шт.

3

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN - roll, 1/4 x 1-3/8"

2шт.

4

A41814

SEAL

KIT - seal, oil

2шт.

5

PA34339

NUT

CONE - bearing, rear axle shaft

4шт.

6

A50324

BEARING CUP

CUP - bearing, rear axle shaft

4шт.

7

A58481

HOUSING - axle

2шт.

8

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- 5/8 x 2" NC hex

16шт.

9

A33050

OIL SEAL

- oil, housing (Rubber)

2шт.

10

A32805

GEAR

- final drive

2шт.

11

A32806

LOCK WASHER

- lock

2шт.

12

A23386

NUT

- lock

2шт.
