Запчасти Case IH 1070 (0308) - PARKING BRAKE (06) - POWER TRAIN

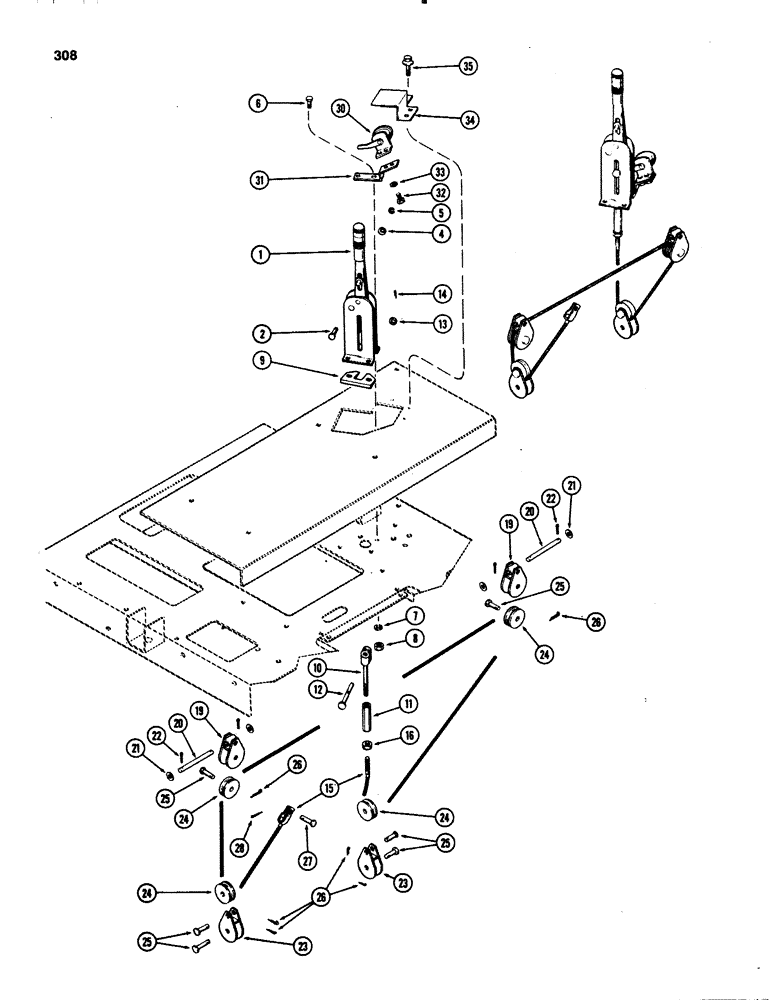

Схема запчастей Case IH 1070 - (0308) - PARKING BRAKE (06) - POWER TRAIN
10
11
9
25
32
26
24
21
1
24
26
22
19
22
7
16
34
31
23
4
27
23
28
33
25
12
20
24
24
5
13
14
20
21
25
35
15
8
19
2
25
26
30
6

Артикул

Название

Примечание

Количество

1

A59410

LEVER

ASSY. - hand brake, Includes: Ref. 2 - 5

1шт.

2

A42204

PIN

- lever

1шт.

A55934

WASHER

- 21/64 x 39/64" (conical spring)

1шт.

4

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 16 ga

1шт.

5

C14652

RING

- pin retaining

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

9

A143838

SPACER - park brake lever

1шт.

10

A59411

ROD

END - rod

1шт.

11

A59412

TURNBUCKLE

1шт.

12

A76379

PIN

- clevis, brake lever (Replaces A59153)

1шт.

13

195-21

WASHER,5/16"

- 5/16 x 7/8 x 1/16"

2шт.

14

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

15

A59420

CABLE

- parking brake

1шт.

16

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex., jam

1шт.

19

A62258

SUPPORT

ASSY. - pulley, upper

2шт.

20

A62262

PIN

- pulley support

2шт.

21

195-21

WASHER,5/16"

- 11/32 x 11/16 x 1/16"

4шт.

22

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

23

A62260

SUPPORT

ASSY. - pulley, lower

2шт.

24

A59416

SHEAVE

PULLEY - parking brake cable

4шт.

25

A59419

PIN,7.9mm OD x 30.96mm L

- clevis, pulley

6шт.

26

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

6шт.

27

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16 x 37/64"

1шт.

28

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

30

A33977

SWITCH

- brake light

1шт.

31

A60542

BRACKET - switch

1шт.

32

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

- #10 x 3/8" N.F. rd. hd. mach

2шт.

33

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

34

A59422

COVER - light switch

1шт.

35

187-1053

SELF-TAP SCREW,Truss Hd, #10 x 1/2"

SCREW - #10 x 1/2" Truss hd., self-tapping

3шт.

Выбрано товаров: 32
