Запчасти Case IH 1070 (0306) - DIFFERENTIAL BRAKE (06) - POWER TRAIN

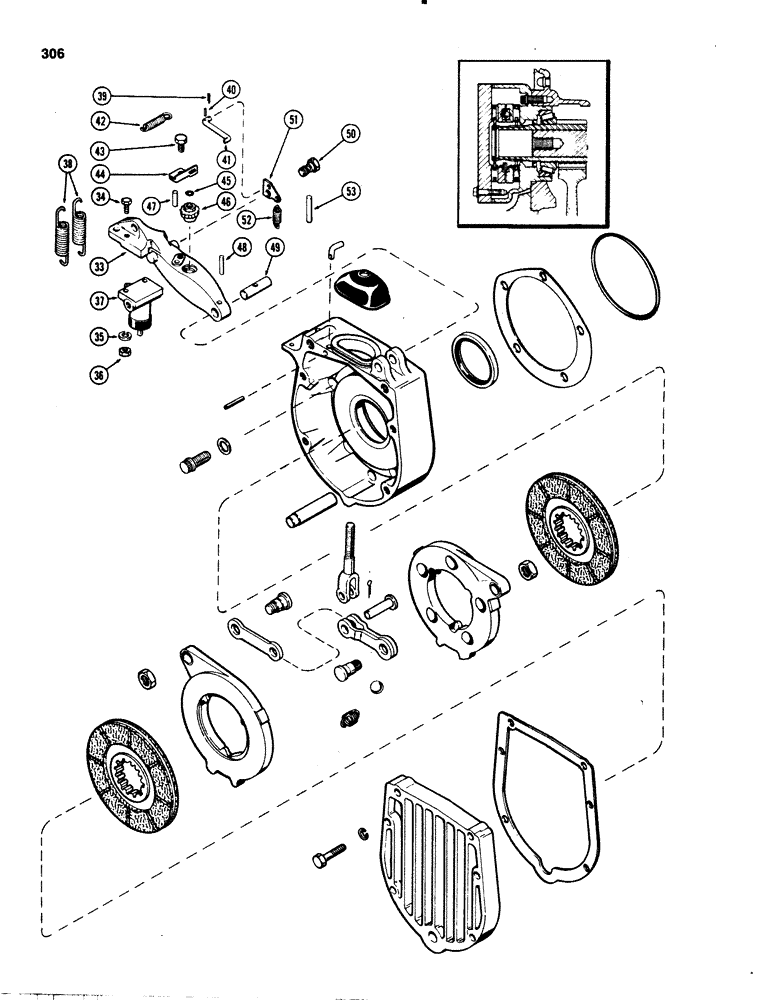

Схема запчастей Case IH 1070 - (0306) - DIFFERENTIAL BRAKE (06) - POWER TRAIN
39
35
51
53
47
50
45
34
33
49
37
41
36
52
43
46
48
42
40
38
44

Артикул

Название

Примечание

Количество

33

A62923

LEVER

- brake actuating (Replaces A60695)

2шт.

34

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

35

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

36

25-104

NUT,1/4"-20, G5

4шт.

37

A62483

CYLINDER

ASSY. - brake slave, 7/8" dia. (See Fig. 342)

2шт.

38

A35789

SPRING

- return, 2-3/8" free length

4шт.

39

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

40

138-20

LOCK PIN,5/64" x 1/2", Slotted

PIN, 5/64" x 1/2", Slotted

2шт.

41

A59607

ROD

- brake, self-adjusting

2шт.

42

A60555

SPRING

- brake rod, 1-39/64" free length

2шт.

43

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

44

A59609

BRACKET

- brake rod

2шт.

45

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- 3/8 x 9/16 x 3/32"

2шт.

46

A62230

NUT

- ratchet, 20 teeth (w/hydraulic brakes)

2шт.

46

A151674

NUT

- ratchet, 16 teeth (w/power brakes) (Replaces A60488)

2шт.

47

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

2шт.

48

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

49

A62822

PIN

- roll, 3/16 x 1-1/4"

2шт.

50

A58471

STEP BOLT

BOLT - shoulder, self adjuster cam

2шт.

51

A64490

CAM

- self-adjusting (Replaces A59606)

2шт.

52

A60489

SPRING

- cam to sud, 1-23/32" free length

2шт.

53

A61216

ROD

- spring

2шт.

A43049

SOCKET/RECEPTACLE

WRENCH - socket, housing cap screw (Not Shown)

2шт.

Выбрано товаров: 23
