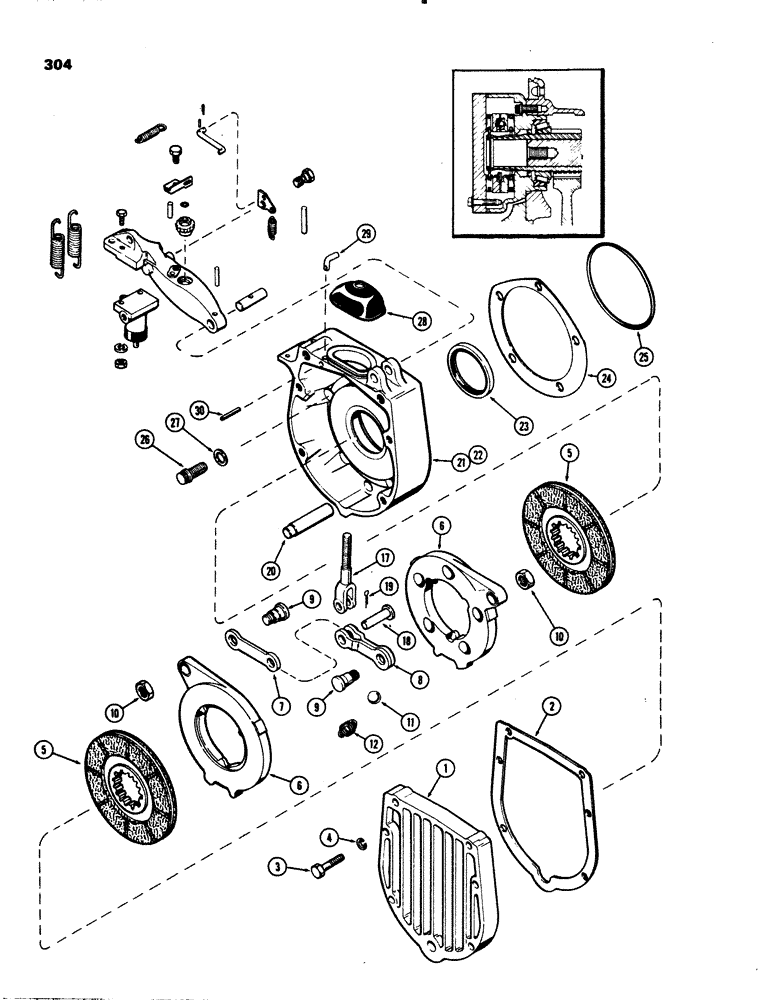

Запчасти Case IH 1070 (0304) - DIFFERENTIAL BRAKE (06) - POWER TRAIN

1

A58461

COVER

- differential brake

2шт.

2

A59088

SHIM,.1196" Thk

Brake cover .1196" Thk

4шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex

12шт.

4

92-8

LOCK WASHER,1/2"

12шт.

5

A44062

DISC

ASSY. - brake, w/metallic lining (Riceland only) (can use A65189)

4шт.

5

A65189

DISC

ASSY. - brake, w/bonded lining (can use A44062)

4шт.

6

A41860

DISC

- brake actuating

4шт.

7

A41861

LINK

- actuating disc, single

2шт.

8

A41862

LINK

- actuating disc, dual

2шт.

9

A41865

BOLT

BOLT - actuating disc

4шт.

10

A42801

JAM NUT

- 1/2" N.F. hex, jam

4шт.

11

211-223

BALL,1" Dia

- actuating, . (Replaces A42043) 1" Dia

10шт.

12

A41864

SPRING

- disc tension

6шт.

17

A58021

ROD

- differential brake

2шт.

18

141-7

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, 5/8 x 1-29/64"

2шт.

19

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

20

A58449

PIN

- anchor

2шт.

21

A58454

HOUSING

ASSY. - brake, R.H. (Incl. Ref. 23)

1шт.

22

A58455

HOUSING

ASSY. - brake, L.H., Includes: Ref. 23

1шт.

23

A57658

OIL SEAL

- oil

1шт.

24

A60490

SHIM,.003" Thk

Differential brg. carrier .003" Thk

1шт.

24

A60491

SHIM,.005" Thk

Differential brg. carrier .005" Thk

1шт.

24

A60492

SHIM,.010" Thk

Differential brg. carrier .010" Thk

1шт.

25

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

- 5-5/8 x 5-7/8 x 1/8"

2шт.

26

A60496

LOCK BOLT

BOLT - 5/8 x 2-3/4" N.C. Jay-lock

4шт.

26

A62449

FLANGE BOLT

BOLT - 5/8 x 2-3/4" N.C. Ferry cap

6шт.

27

A64303

WASHER

- 41/64 x 1-1/16 x 1/16" (Replaces A29881)

10шт.

28

A27465

CAP

- dust, brake rod

2шт.

29

A59319

STUD

- spring hold-down

2шт.

30

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

2шт.
