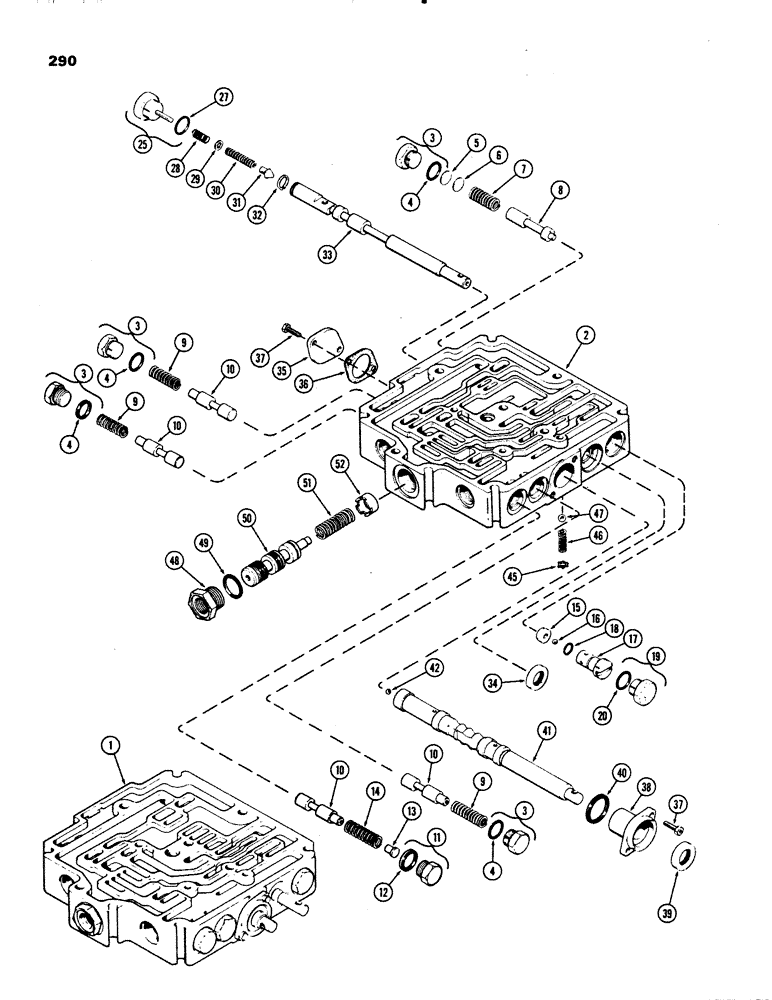

Запчасти Case IH 1070 (0290) - TRANSMISSION CONTROL VALVE, POWER SHIFT (06) - POWER TRAIN

1

A148169

VALVE

ASSY - transmission control (Replaces A62634 & A66708), Includes: Ref. 1 - 52

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order Ref 1)

1шт.

3

A62564

PLUG

ASSY - pressure regulator, Includes: Ref. 4

4шт.

5

A37554

SHIM,.0269" Thk

Pressure regulator (10 PSI) .0269" Thk

1шт.

6

A37555

SHIM,.0120" Thk

Pressure regulator (5 PSI) .0120" Thk

1шт.

7

A58436

SPRING

- compression, 1-3/8" free length

1шт.

8

A146644

SPOOL

PLUNGER - pressure regulator

1шт.

9

A58271

SPRING

- compression, 1-49/64" free length

3шт.

10

A146590

SPOOL

- pilot

4шт.

11

A62641

PLUG

ASSY - C-4 pilot spool return, Includes: Ref. 12

1шт.

13

A62640

STOP

- pilot spool

1шт.

14

A66692

SPRING

- pilot spool return, 1-3/4" free length

1шт.

15

A58441

SEAT

- ball, shuttle valve

1шт.

16

211-7

BALL,1/4" Dia

- shuttle valve, steel 1/4" Dia

1шт.

17

A58440

SLEEVE

- shuttle valve

1шт.

18

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- 3/32 x 1/2 x 11/16"

1шт.

19

86512512

PLUG,7/8" - 14 ORB

Assy, Shuttle valve, Incl. Ref. 20 Hex Hd, 7/8"-14 ORB

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32"

1шт.

A42887

KIT

- clutch modulator, Includes: Ref. 25 - 27

1шт.

25

A61985

PLUG

- modulator, Includes: Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 5/8 x 3/32"

1шт.

28

A61988

SPRING

- clutch modulator, 1-43/64" free length

1шт.

29

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

- spring guide

1шт.

A60155

SPRING

POINT & SPRING ASSY - clutch modulator, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

SPRING - primary, 1-39/64" free length

1шт.

31

NSS

NOT SOLD SEPARAT

POINT - modulator

1шт.

32

G46176

SNAP RING,#56, Ext

Ring, Snap, , spool #56, Ext

1шт.

33

A62636

SPOOL

- clutch control

1шт.

34

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

- spool

1шт.

35

A58429

COVER

- selector spool

1шт.

36

A66110

GASKET

- cover (Replaces A58427)

1шт.

37

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- 1/4 x 3/4" NC hex socket head, cap

4шт.

38

A62839

SLEEVE

- 1/4 x 3/4" NC hex socket head, cap

1шт.

39

A58428

SEAL

- oil

1шт.

40

A59066

O-RING,1.239" ID x 1.379" OD

- 1-1/4 x 1-3/8 x 1/16"

1шт.

41

A60550

SPOOL

ASSY - selector, Includes: Ref. 42

1шт.

42

NSS

NOT SOLD SEPARAT

BALL - 9/32" diameter steel (Order Ref 41)

1шт.

45

A58439

RETAINER

- retard check spring

2шт.

46

A58438

SPRING

- compression, 15/16" free length

2шт.

47

211-8

BALL,9/32" Dia

- check, steel 9/32" Dia

2шт.

48

A58434

PLUG - reverse lock-out spool

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 x 3/4 x 7/64"

1шт.

50

A146637

SPOOL

- reverse lock-out

1шт.

51

A58432

SPRING

- compression (replaces A57432)

1шт.

52

A61033

SLEEVE

- reverse lock-out spool

1шт.

A42885

SEAL KIT

- seal (Includes Items 4, 18, 20, 27, 32, 34, 37, 38, & 49)

1шт.

A42887

KIT

- clutch modulator (Includes Item 25, 28, 29, & 31)

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 1/2 x 5/64"

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 1/2 x 5/64"

1шт.
