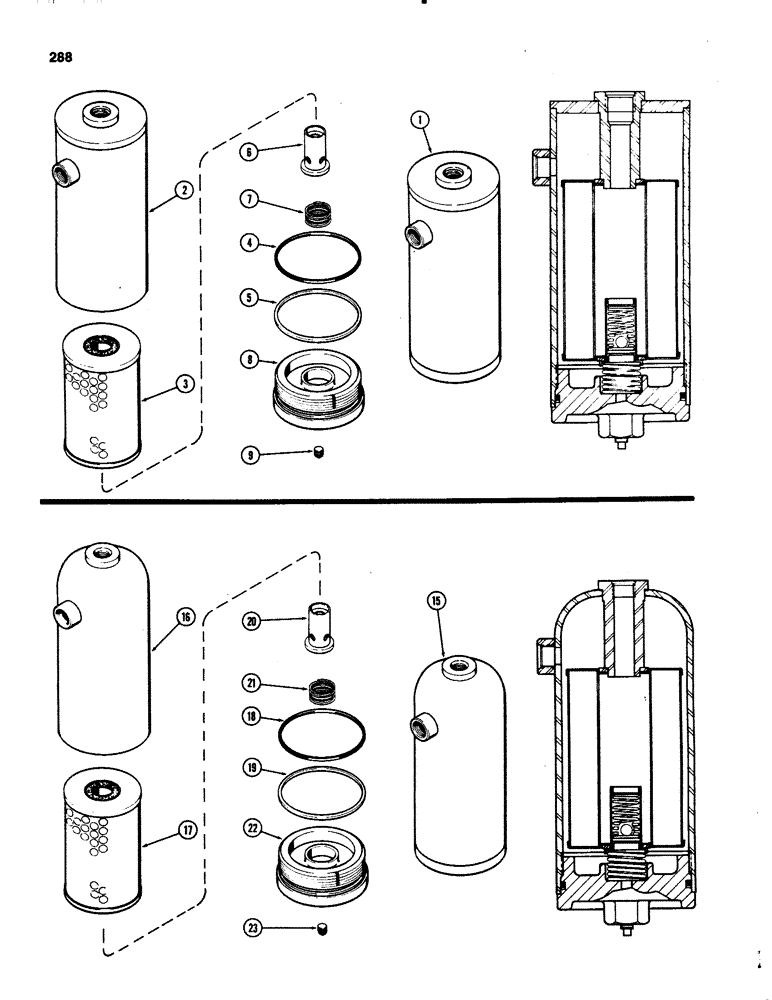

Запчасти Case IH 1070 (0288) - G100000 HYDRAULIC OIL FILTER, POWER SHIFT (06) - POWER TRAIN

1

G100000

SPARE PART

FILTER ASSY - (10 micron), Includes: Ref. 1 - 9

1шт.

2

G100002

TUBE,7.89" L

ASSY - filter

1шт.

A65854

HYDRAULIC OIL FILTER

ELEMENT KIT - filter, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER - (10 micron)

1шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- 4 x 4-1/4 x 9/64"

1шт.

5

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

6

D37207

VALVE

- relief

1шт.

7

D31212

SPRING

- retaining

1шт.

8

A60765

CAP

- end

1шт.

9

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" square head pipe

1шт.

15

G102102

FILTER

ASSY - hydraulic oil (10 Micron) (Replaces A60766), Includes: Ref. 16 - 23

1шт.

16

A60767

BODY

- oil filter A60766, hydraulic

1шт.

17

G35446

FILTER, ELEMENT

FILTER - (10 Micron) A60766, hydraulic oil

1шт.

18

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- 4 x 4-1/4 x 9/64" A60766, hydraulic oil

1шт.

19

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

A60766, Hydraulic oil

1шт.

20

D37207

VALVE

- relief A60766, hydraulic oil

1шт.

21

D31212

SPRING

- retaining A60766, hydraulic oil

1шт.

22

A60765

CAP

- end A60766, hydraulic oil

1шт.

23

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" square head pipe A60766, hydraulic oil

1шт.
