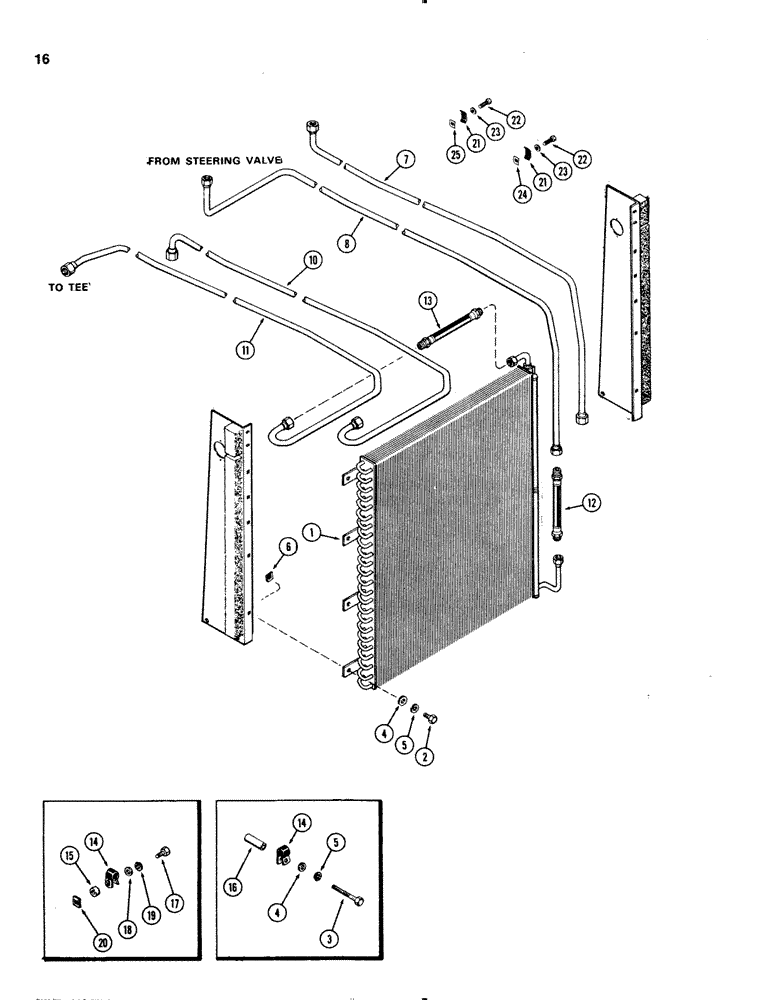

Запчасти Case IH 1070 (0016) - OIL COOLER, 451B DIESEL ENGINE (02) - ENGINE

1

A61454

COOLER

- oil

1шт.

2

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

7шт.

3

13-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

1шт.

4

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

8шт.

5

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

6

131-611

NUT,Ret, 1/4"-20

- 1/4" Tinnerman

8шт.

7

A64521

TUBE

- oil cooler, upper (1st used trac. ser. no. 8693001)

1шт.

8

A61455

TUBE - oil cooler, upper (Used prior to trac. ser. no. 8693001)

1шт.

10

A64522

TUBE

- oil cooler, lower (1st used trac. ser. no. 8693001)

1шт.

11

A61456

TUBE

- oil cooler, lower (Used prior to trac. ser. no. 8693001)

1шт.

12

A61458

HOSE,0.50" ID x 6.60", SAE 30R2 Type 3 PER SAE J30

RADIATOR HOSE, , Tube to Cooler, Upper 0.50" ID x 6.60", SAE 30R2 Type 3 PER SAE J30

1шт.

13

A145874

HOSE,0.50" ID x 8.50", SAE 100R1

0.50" ID x 8.50" - Tube to cooler, Lower (Replaces A60399)

1шт.

14

49838

CLAMP

- oil cooler tube lower

2шт.

15

A61457

SPACER - cooler to clamp, lower (9/32 x 3/4 x 7/16")

1шт.

16

A61813

SPACER - cooler to clamp, upper (23/64 x 35/64 x 2")

1шт.

17

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

18

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

20

131-611

NUT,Ret, 1/4"-20

- 1/4" Tinnerman

1шт.

21

A60404

CLIP

- tube mounting

2шт.

22

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

23

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

2шт.

24

131-611

NUT,Ret, 1/4"-20

- 1/4" Tinnerman

1шт.

25

25-104

NUT,1/4"-20, G5

1шт.
