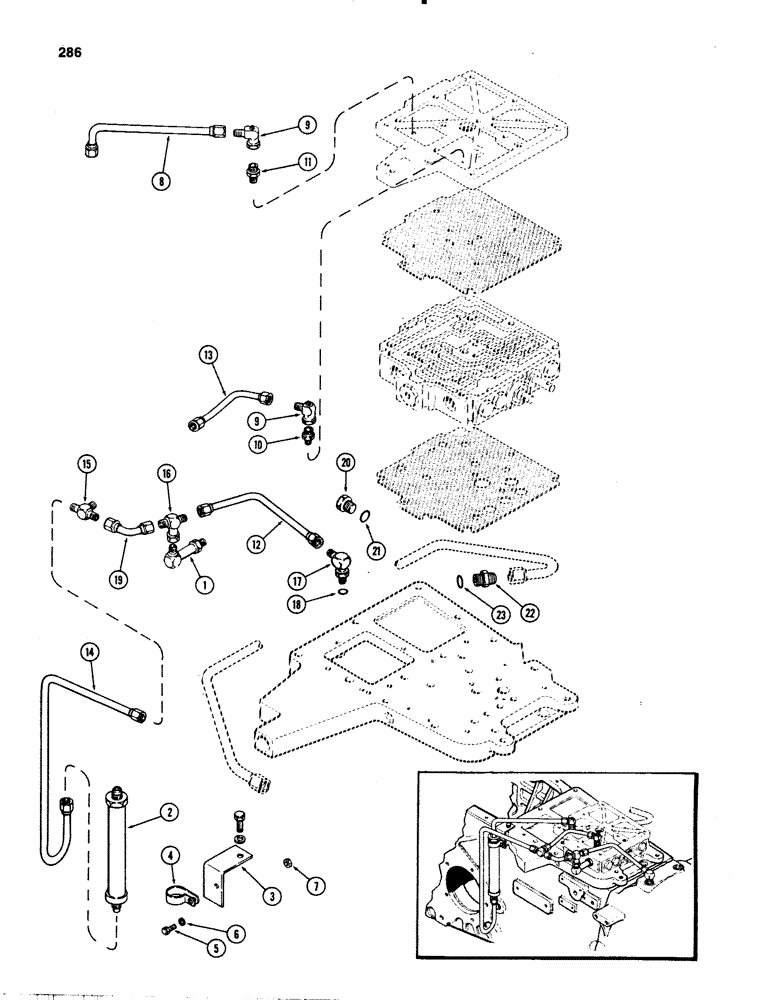

Запчасти Case IH 1070 (0286) - TRANSMISSION SHUTTLE CONTROL, POWER SHIFT, USED TRACTOR SERIAL NUMBERS 8702757 TO 8752656 (06) - POWER TRAIN

A65063

KIT

- shuttle valve (Replaces A62987), Includes: Ref. 1 - 23

1шт.

1

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

- long, control, valve (3/4" - 16)

1шт.

2

A65064

VALVE

ASSY - shuttle, hydraulic

1шт.

3

A65068

BRACKET - valve mounting

1шт.

4

A65069

CLAMP,1 3/8", 5/16" Bolt

- valve to bracket

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

6

92-5

LOCK WASHER,5/16"

1шт.

7

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC hex

1шт.

8

A65070

TUBE

- valve to C-1 clutch

1шт.

9

A65071

ELBOW

- w/check valve (1/4" PT female x 3/4"-16)

2шт.

10

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

NIPPLE - pipe, 1/4 x 1/8"

1шт.

11

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE) 1/4"-18 NPTF

1шт.

12

A65073

TUBE - tee to clutch housing

1шт.

13

A65072

ADAPTER

TUBE - tee to C-4 clutch

1шт.

14

A65077

TUBE - tee to C-4 clutch

1шт.

15

218-594

TEE,3/4"-16, 37 Degree

- union, 1/2" tube x 3/4"-16

1шт.

16

218-840

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Br

- swivel, 1/2" tubue x 3/4"-16

1шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- clutch housing, 1/2" tube x 3/4"-16, Includes: Ref. 18

1шт.

19

A65074

TUBE -, Serial Range: tee-tee

1шт.

20

214389

PLUG,3/4" - 16 ORB

(In clutch housing), Includes Ref. 21 Hex Hd, 3/4"-16 ORB

1шт.

22

A65072

ADAPTER

- restrictor (3/4" tube x 1-1/16"-12), Includes: Ref. 23

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 15/16 x 1-1/16 x 1/8"

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 7/8 x 1/8"

1шт.

21

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 5/8 x 7/8 x 1/8"

1шт.
