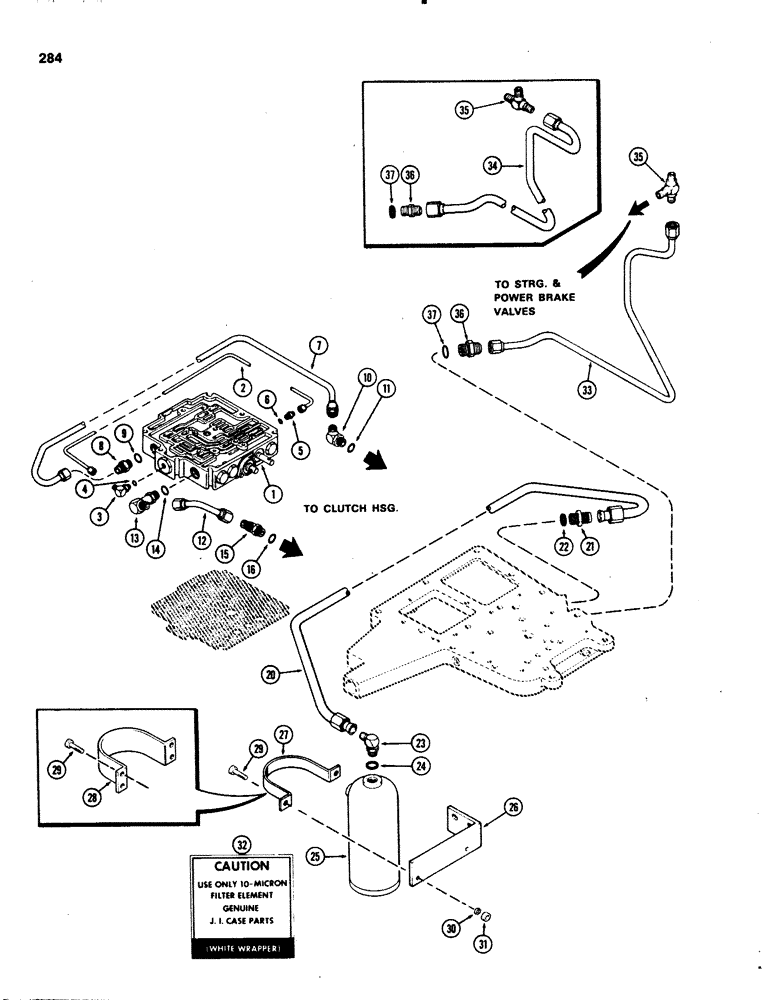

Запчасти Case IH 1070 (0284) - TRANSMISSION CONTROL VALVE AND HYDRAULIC LINES, WITHOUT HYDRAULIC SHUTTLE POWER SHIFT (06) - POWER TRAIN

1

REF

INSTRUCTION

VALVE ASSY - transmission control (See Fig. 290)

1шт.

2

A60656

TUBE

- reverse lock-out pilot

1шт.

3

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSY - 90 deg. adjustable for 1/4" tube, Includes: Ref. 4

1шт.

4

128-5003

O-RING - 23/64 x 1/4 x 5/64"

1шт.

5

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR ASSY - for 1/4" tube, Incl. Ref. 6

1шт.

6

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- 23/64 x 1/4 x 5/64"

1шт.

7

A60269

TUBE

- valve to clutch housing, LH

1шт.

8

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSY - for 1/2" tube, Incl. Ref 9

1шт.

10

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY - 45 deg. adjustable for 1/2" tube, Incl. Ref 11

1шт.

12

A62101

TUBE

- valve to clutch housing, RH

1шт.

13

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

ASSY - 90 deg. adjustable for 1/2" tube, Includes: Ref. 14

1шт.

15

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY - 45 deg. adjustable for 1/2" tube, Incl. Ref 16

1шт.

20

A61780

TUBE

-, Serial Range: filter-valve

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY - for 3/4" tube, Incl. Ref. 22

1шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8"

1шт.

23

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY - 90 deg. for 3/4" tube, Incl. Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 3/4 x 59/64 x 1/8"

1шт.

25

REF

INSTRUCTION

FILTER ASSY - hydraulic oil (See Figure 156)

1шт.

26

A143908

BRACKET

- filter mounting (Replaces A62650)

1шт.

27

A65004

CLAMP - filter to bracket (1st used trans ser no. 2397230)

1шт.

28

A60857

CLAMP - filter to bracket (Used prior to trans ser no. 2397230) (Order A65004)

1шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" NC hex

1шт.

30

92-6

LOCK WASHER,3/8"

1шт.

31

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

32

321-1762

DECAL

- warning, oil filter

1шт.

33

A64534

TUBE

- tee to transmission cover (1st used trac ser no. 8693227)

1шт.

34

A60772

TUBE

- tee to transmission cover (Used prior to trac ser no. 8693001)

1шт.

35

218-594

TEE,3/4"-16, 37 Degree

- junction

1шт.

36

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR ASSY - for 1/2" tube, Incl. Ref 37

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 1/2 x 5/64"

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 1/2 x 5/64"

1шт.

14

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 1/2 x 5/64"

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 1/2 x 5/64"

1шт.

37

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 41/64 x 1/2 x 5/64"

1шт.
