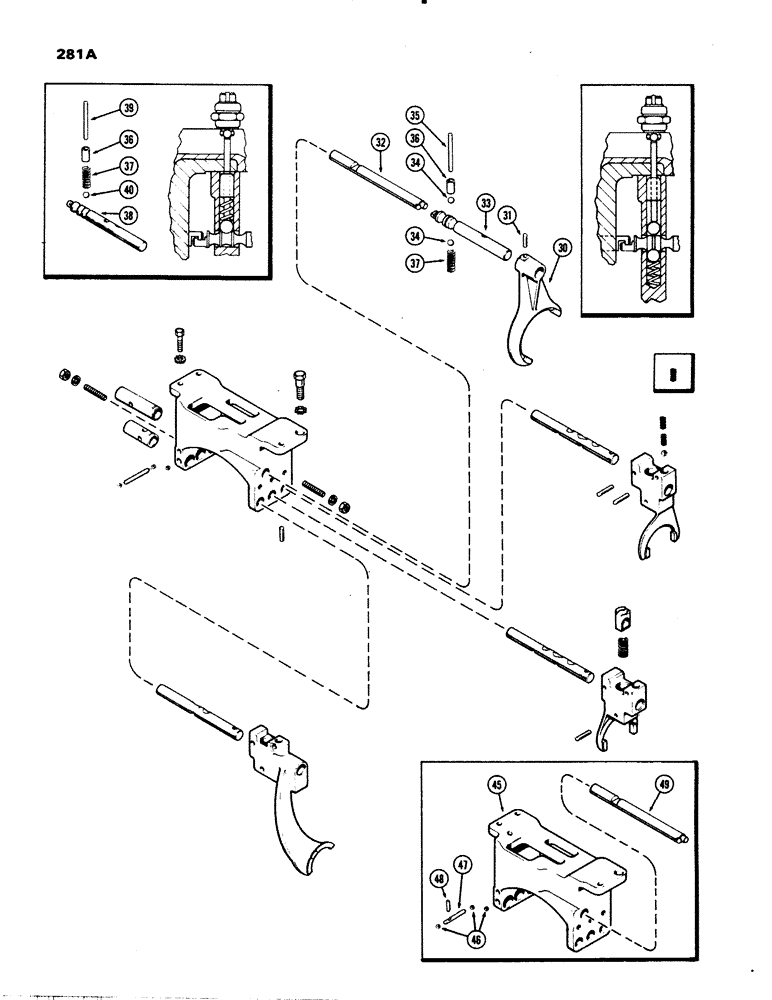

Запчасти Case IH 1070 (0281A) - GEAR SHIFT MECHANISM, SHAFTS AND FORKS, MECHANICAL SHIFT (06) - POWER TRAIN

30

A62249

FORK

- range shift

1шт.

31

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

1шт.

32

A59117

TUBE

SHAFT - range

1шт.

33

A62842

SHAFT

- fork, range (1st used trans ser no. 2374490)

1шт.

34

211-13

BALL,1/2" Dia

- detent 1/2" Dia

2шт.

35

A62843

ROD - neutral switch (3-5/16") (1st used trans ser no. 2374490)

1шт.

36

A59113

SPACER

- detent spring

1шт.

37

A33749

SPRING

- detent

1шт.

38

A62248

SHAFT

- fork, range (Used prior to trans ser no. 2374490)

1шт.

39

A59116

ROD

- neutral switch (3-3/8") (Used priot to trans ser no. 2374490)

1шт.

40

211-13

BALL,1/2" Dia

- detent 1/2" Dia

1шт.

45

A64410

BRACKET - gear shift control

1шт.

This lockout arrangement was only used on tractors with the following tractor serial numbers: 8653989, 8654544, 8654752, 8655417, 8658736, and 8658779

1шт.

46

211-28

BALL,13/32" Dia

- steel, meter 13/32" Dia

4шт.

47

A64412

ROD - gear shift interlock

1шт.

This lockout arrangement was only used on tractors with the following tractor serial numbers: 8653989, 8654544, 8654752, 8655417, 8658736, and 8658779

1шт.

48

A64413

PIN - interlock

1шт.

This lockout arrangement was only used on tractors with the following tractor serial numbers: 8653989, 8654544, 8654752, 8655417, 8658736, and 8658779

1шт.

49

A64411

SHAFT - range

1шт.

This lockout arrangement was only used on tractors with the following tractor serial numbers: 8653989, 8654544, 8654752, 8655417, 8658736, and 8658779

1шт.
