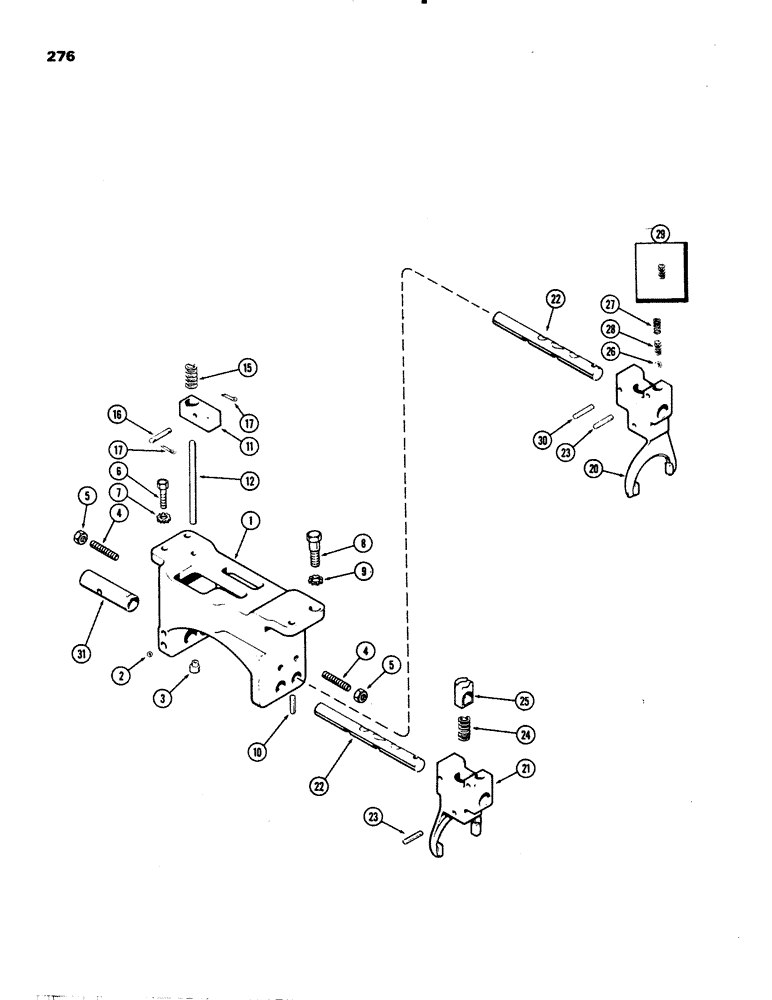

Запчасти Case IH 1070 (0276) - GEAR SHIFT MECHANISM, SHAFTS AND FORKS, POWER SHIFT (06) - POWER TRAIN

1

A61187

BRACKET

- gear shift control, Includes: Ref. 2 and 3

1шт.

2

211-28

BALL,13/32" Dia

- steel, meter 13/32" Dia

1шт.

3

A60714

PIN

- ball return

1шт.

4

83-628

SET SCREW,Hex Soc, 3/8"-16 x 1 3/4"

SCREW - 3/8 x 1-3/4" NC hex socket headless

2шт.

4

83-632

SET SCREW,Hex Soc, 3/8"-16 x 2"

SCREW - 3/8 x 2" NC hex socket headless

2шт.

5

25-146

JAM NUT,Jam, 3/8"-16, G5

-3/8" NC hex, jam

4шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- 3/8 x 1-1/2" NC hex

2шт.

7

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

8

A32042

STEP BOLT

BOLT - 7/16 x 1-15/16" NC hex, shoulder

1шт.

9

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

10

138-2048

PIN,5/16" x 5/8", Coiled

2шт.

11

A60836

LEVER

- neutral switch (Order A146409)

1шт.

12

A60713

ROD

- neutral switch

1шт.

15

A61705

SPRING

- neutral switch

1шт.

16

A61030

PIN

- pivot, neutral switch

1шт.

17

132-3

COTTER PIN,1/16" x 3/8"

Pin, Split (Cotter), 1/16" x 3/8"

2шт.

20

A59107

FORK

- gear shift, 1st & 3rd

1шт.

21

A59108

FORK

- gear shift, 2nd & 4th

1шт.

22

A61031

SHAFT

- gear shift

2шт.

23

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

4шт.

24

A58492

SPRING

- fork detent

2шт.

25

A65961

CLIP

- locking, detent (Replaecs A58491)

2шт.

26

211-14

BALL,9/16" Dia

- detent, steel, meter 9/16" Dia

2шт.

27

A150911

SPRING

- detent ball, outer (3/4" free length, 7/16" diameter)

2шт.

28

A150912

SPRING

- detent ball, inner (43/64" free length, 11/32" diameter)

2шт.

29

A59588

SPRING

- detent ball (Production) (Order A150911 & A150912)

2шт.

30

138-2002

PIN,3/16" x 1 1/4", Coiled

2шт.

31

A59118

TUBE

- gear shift interlock

2шт.
