(0274) - GEAR SHIFT MECHANISM, COVERS AND RELIEF VALVE, POWER SHIFT

Запчасти Case IH 1070 (0274) - GEAR SHIFT MECHANISM, COVERS AND RELIEF VALVE, POWER SHIFT (06) - POWER TRAIN

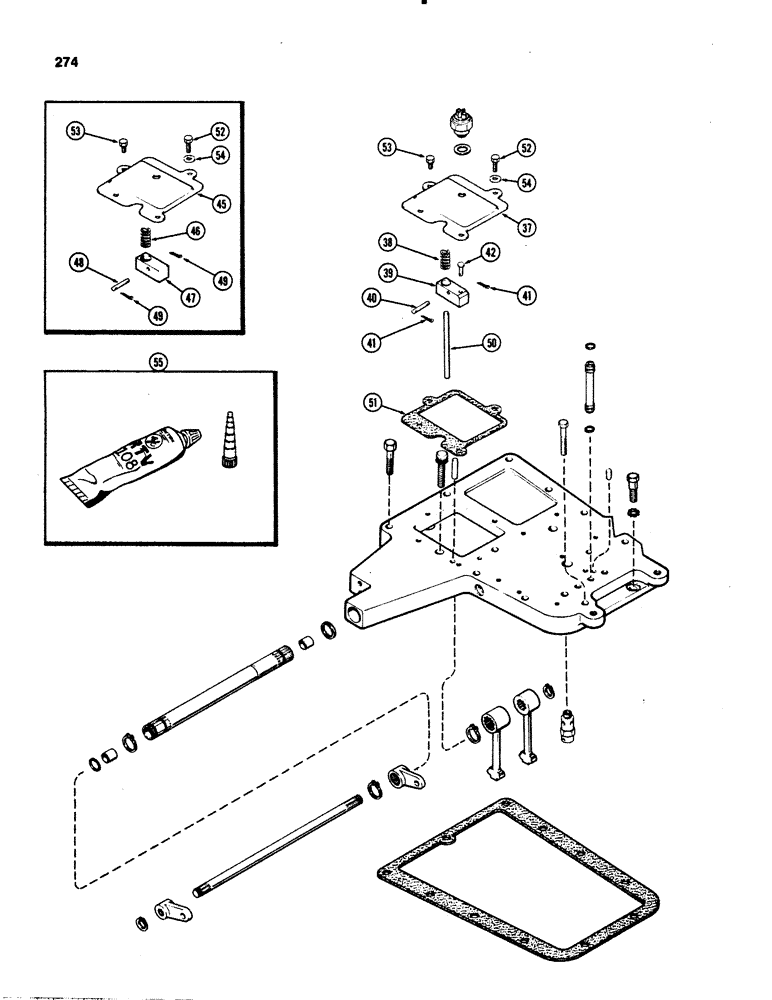

Схема запчастей Case IH 1070 - (0274) - GEAR SHIFT MECHANISM, COVERS AND RELIEF VALVE, POWER SHIFT (06) - POWER TRAIN
39
55
52
40
45
53
50
38
46
42
53
49
54
54
37
41
48
41
48
47
52
51
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

37

A146772

COVER

ASSY. - gear shift lever & neutral switch (1st used trans. ser. no. 10039568), Includes: Ref. 38 - 42

1шт.

38

A61705

SPRING

- neutral switch

1шт.

39

A146409

LEVER

- neutral start

1шт.

40

A61030

PIN

- pivot, neutral start

1шт.

41

132-3

COTTER PIN,1/16" x 3/8"

Pin, Split (Cotter), 1/16" x 3/8"

2шт.

42

141-2

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 x 43/64"

1шт.

45

A60832

COVER

ASSY. - gear shift lever & neutral switch (Used prior to trans. ser. no. 10039568)(Order A146772), Includes: Ref. 46 - 49

1шт.

46

A61705

SPRING

- neutral switch

1шт.

47

A60836

LEVER

- neutral start (Order A146409)

1шт.

48

A61030

PIN

- pivot, neutral start

1шт.

49

132-3

COTTER PIN,1/16" x 3/8"

Pin, Split (Cotter), 1/16" x 3/8"

2шт.

50

A60713

ROD

- neutral start

1шт.

51

A59115

GASKET

- cover (Order 345-61 adhesive) (See Ref. 55)

1шт.

52

113-217

PREV TORQUE BOLT,Locking, 3/8"-16 x 1", G5, Full Thd

BOLT, Locking, 3/8"-16 x 1", G5, Full Thd

1шт.

53

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

54

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

55

345-61

SEALANT

SEALANT - rubber adhesive (3 oz. tube)

1шт.
