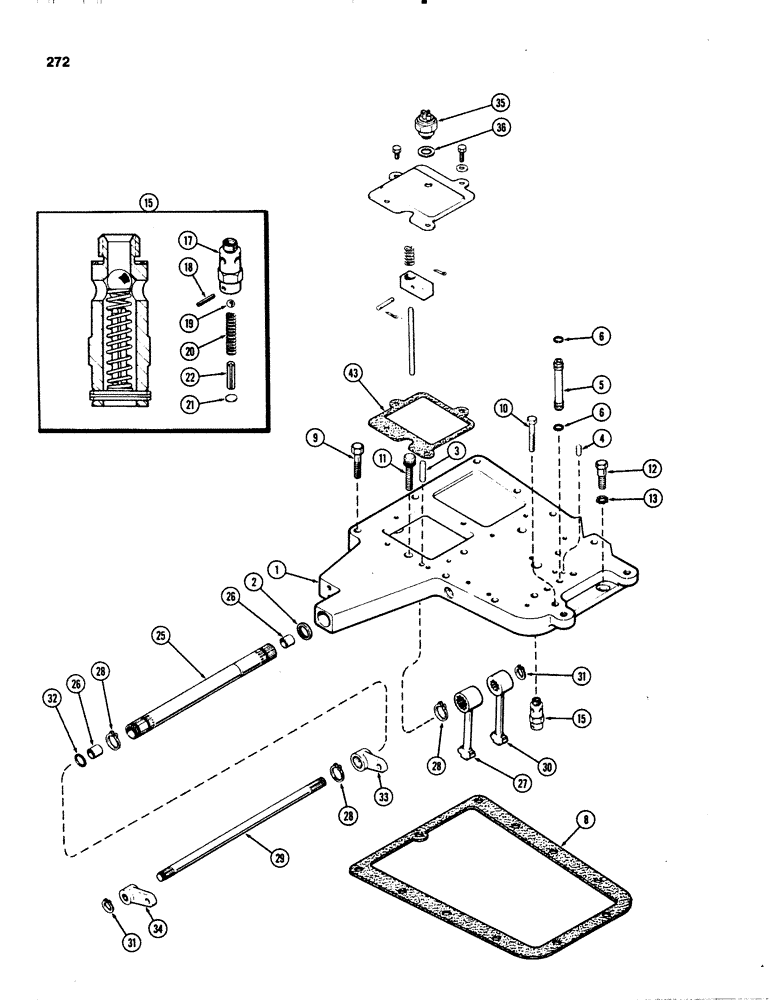

Запчасти Case IH 1070 (0272) - GEAR SHIFT MECHANISM, COVERS AND RELIEF VALVE, POWER SHIFT (06) - POWER TRAIN

1

A62638

COVER - transmission front top

1шт.

2

A28211

OIL SEAL

- oil

1шт.

3

A58950

PIN

- dowel, external range shift lever, Serial Range: shaft-cover

1шт.

4

D24005

PIN

- dowel, trans. top front cover to valve body

1шт.

5

A61677

TUBE

- oil

3шт.

6

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- oil tube

6шт.

8

A62114

GASKET,0.79mm Thk

- transmission cover

1шт.

9

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" N.C. hex

8шт.

10

113-439

SCREW,Locking, 1/2"-13 x 2 1/2", G5

BOLT -1/2 x 2-1/2" N.C. hex. Nylock

1шт.

11

166-91

12 PT SCREW,Flg, 1/2" - 13 x 2 1/2, Gr 8

BOLT - 1/2 x 2-1/2" N.C. Ferry cap

1шт.

12

A60891

STEP BOLT

BOLT - dowel

1шт.

13

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

15

A60890

VALVE

ASSY. - lube oil relief, Includes: Ref. 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - relief valve (Order Ref. 15)

1шт.

18

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

19

211-9

BALL,5/16" Dia

- steel, 5/16" Dia

1шт.

20

A60889

SPRING

- relief valve

1шт.

21

195-6

WASHER,#6

- 5/32 x 5/16 x 1/32"

1шт.

22

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

25

A58245

SHAFT

ASSY. - external gear shift, Includes: Ref. 26

1шт.

26

A57709

BUSHING

- shaft

2шт.

27

A62265

LEVER

- gear shift, 2nd & 4th (Replaces A61281)

1шт.

23 Tooth .9383/.9333 Hole

1шт.

28

B18208

SNAP RING,#100, Ext

lever to shaft #100, Ext

3шт.

29

A59591

SHAFT

- internal gear shift

1шт.

30

A62264

LEVER

- gear shift, 1st & 3rd (Replaces A61280)

1шт.

31

D32101

SNAP RING,#62, Ext

Ring, Snap, , lever to shaft #62, Ext

2шт.

32

A58949

O-RING,0.614" ID x 0.754" OD

- 3/4 x 5/8 x 1/16"

1шт.

33

A64936

LEVER

- range shift, 2nd & 4th (Replaces A60369)

1шт.

34

A64935

LEVER

- range shift, 1st & 3rd (Replaces A60363)

1шт.

35

A20990

SWITCH

- safety, neutral start

1шт.

36

G49402

SHIM,.010" Thk

Neutral start switch .010" Thk

1шт.
