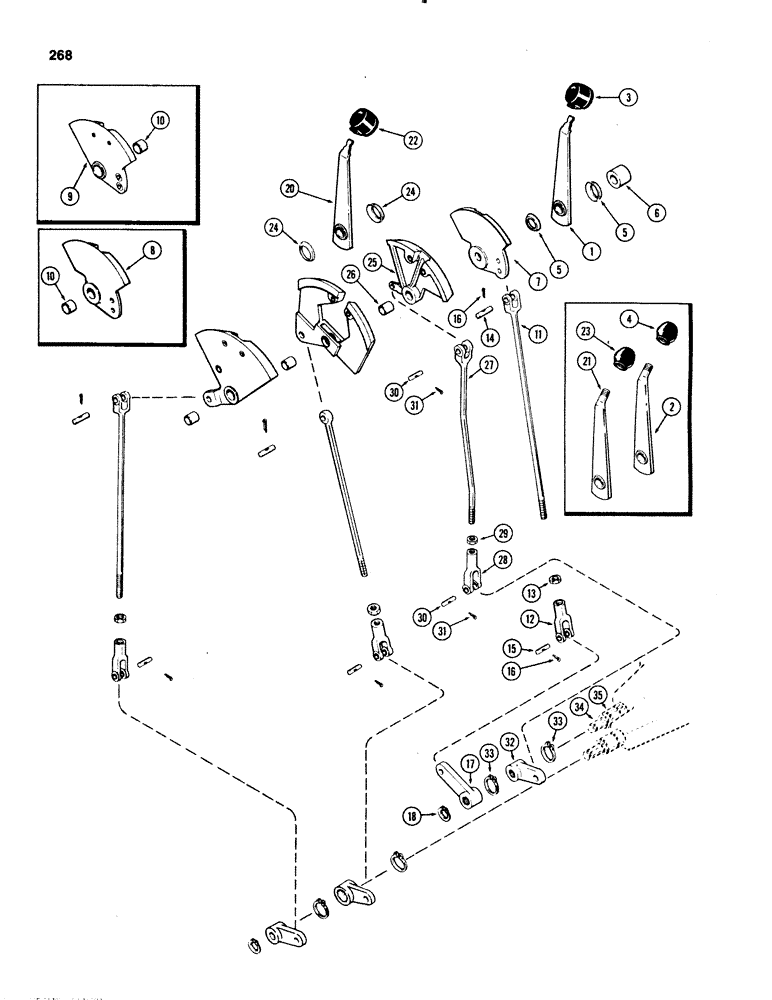

Запчасти Case IH 1070 (0268) - GEAR AND RANGE SHIFT LINKAGE, MECHANICAL SHIFT (06) - POWER TRAIN

1

A137815

LEVER

- hand, range shift

1шт.

2

A59661

LEVER

- hand, range shift (Order A137815 lever & A137806 knob)

1шт.

3

A137806

KNOB

- range shift lever (rubber)

1шт.

4

A65699

KNOB

- range shift lever (plastic)(Replaces A62078 & A65541) (Order A137806)

1шт.

5

A59662

WASHER

- range shift lever

2шт.

6

A59664

SPACER

- range shift lever shaft

1шт.

7

A143835

QUADRANT

- range shift lever (1st used trac ser no. 8804051)

1шт.

8

A135383

QUADRANT

- range shift lever (Used trac ser nos, Serial Range: 8753836-8804051)

1шт.

9

A61862

QUADRANT

- range shift lever (Used priot to trac ser no. 8753836), Includes: Ref. 10

1шт.

10

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- quadrant

1шт.

11

A59775

ROD

- range shift

1шт.

12

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - range shift rod

1шт.

13

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" NF hex

1шт.

14

A59258

PIN

- range shift linkage

1шт.

15

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

16

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

17

A59666

LEVER

- range shift

1шт.

18

D32101

SNAP RING,#62, Ext

Ring, Snap, , range shift lever (replaces A59594) #62, Ext

1шт.

20

A137816

LEVER

- hand, gear shift

1шт.

21

A60360

LEVER

- hand, gear shift (Order A137816 lever & A137806 knob)

1шт.

22

A137806

KNOB

- gear shift lever (rubber)

1шт.

23

A65699

KNOB

- gear shift lever (plastic)(Replaces A62078 & A65541) (Order A137806)

1шт.

24

A59662

WASHER

- gear shift lever

2шт.

25

A61874

QUADRANT

- reverse gear shift, Includes: Ref. 26

1шт.

26

A61866

BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L

- quadrant

1шт.

27

A60358

ROD

- reverse shift

1шт.

28

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - gear shift rod

1шт.

29

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" NF hex

1шт.

30

A59258

PIN

-gear shift linkage

2шт.

31

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

2шт.

32

A64936

LEVER

- reverse shift (Replaces A60369)

1шт.

33

B18208

SNAP RING,#100, Ext

reverse lever #100, Ext

1шт.

34

A59592

SHAFT

- internal range shift (See Fig. 278)

1шт.

35

A59032

SHAFT

- external gear shift (See Fig. 278)

1шт.
