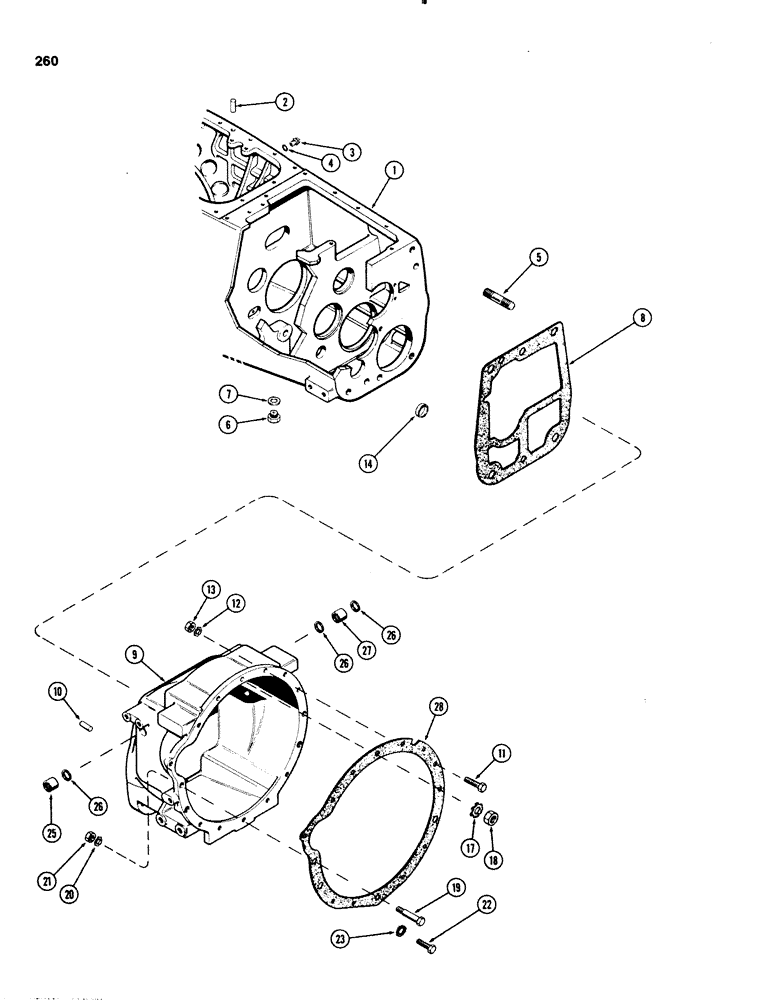

Запчасти Case IH 1070 (0260) - TRANSMISSION AND CLUTCH HOUSINGS, MECHANICAL SHIFT (06) - POWER TRAIN

1

A58972

HOUSING - transmission

1шт.

2

A7077

DOWEL

PIN - dowel, 1/2 x 1-3/8"

2шт.

3

A58420

GAUGE

ASSY - oil sight (Glass), Includes: Ref. 4

2шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- 3/32 x 5/8 x 13/16"

1шт.

5

A151866

STUD

- 7/8" NF x 4"

4шт.

6

A140222

PLUG

- drain, 3/4" (Replaces A14280)

3шт.

7

A58608

GASKET

- drain plug

3шт.

8

A58973

GASKET

- clutch housing to transmission housing

1шт.

9

A62485

HOUSING - clutch

1шт.

10

A28269

PIN

- dowel, 3/4 x 1-1/4"

2шт.

11

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

5шт.

11

113-465

BOLT

- 1/2 x 2" NC hex

2шт.

11

113-2417

BOLT

- 1/2 x 2-1/2" NC hex special

1шт.

11

166-86

12 PT SCREW,Flg, 1/2" - 13 x 1 1/4", Gr 8

BOLT - 1/2 x 2" NC Ferry cap

3шт.

166-89 Bolt 1/2 x 2" NC Ferry Cap, (1/2 x 1 1/4")

1шт.

12

A34650

LOCK WASHER

- Shakeproof, 1/2" external

1шт.

13

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" NC hex

1шт.

14

A58620

PLUG,Cup, 3/4", Stainless

- 3/4" cup type

1шт.

17

193-16

LOCK WASHER,Ext Tooth, 7/8"

WASHER - Shakeproof, 7/8" external

4шт.

18

25-1114

NUT,7/8"-14, G5

- 7/8" NF hex

4шт.

19

A61040

STEP BOLT

BOLT - 1/2 x 3" NC hex, shoulder

1шт.

19

A61041

STEP BOLT

BOLT - 1/2 x 2-3/16" NC hex, shoulder

1шт.

20

A34650

LOCK WASHER

- Shakeproof, 1/2" external

2шт.

21

25-168

NUT,1/2"-13, G5, Hvy

- 1/2" NC hex

2шт.

22

113-753

BOLT - 3/4 x 2-1/4" NC hex

2шт.

23

A34651

LOCK WASHER

- Shakeproof, 3/4" external

2шт.

25

A28210

BEARING, NEEDLE,1" ID x 1.25" OD x 1"

BEARING - needle, clutch throwout shaft (closed end)

1шт.

26

A76307

OIL SEAL,25.4mm ID x 31.9mm OD x 4.75mm Thk

- oil, throwout shaft (Replaces A28211)

3шт.

27

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

BEARING - needle, clutch throwout shaft (opened end)

1шт.

28

A58139

GASKET

- clutch, Serial Range: housing-engine

1шт.
