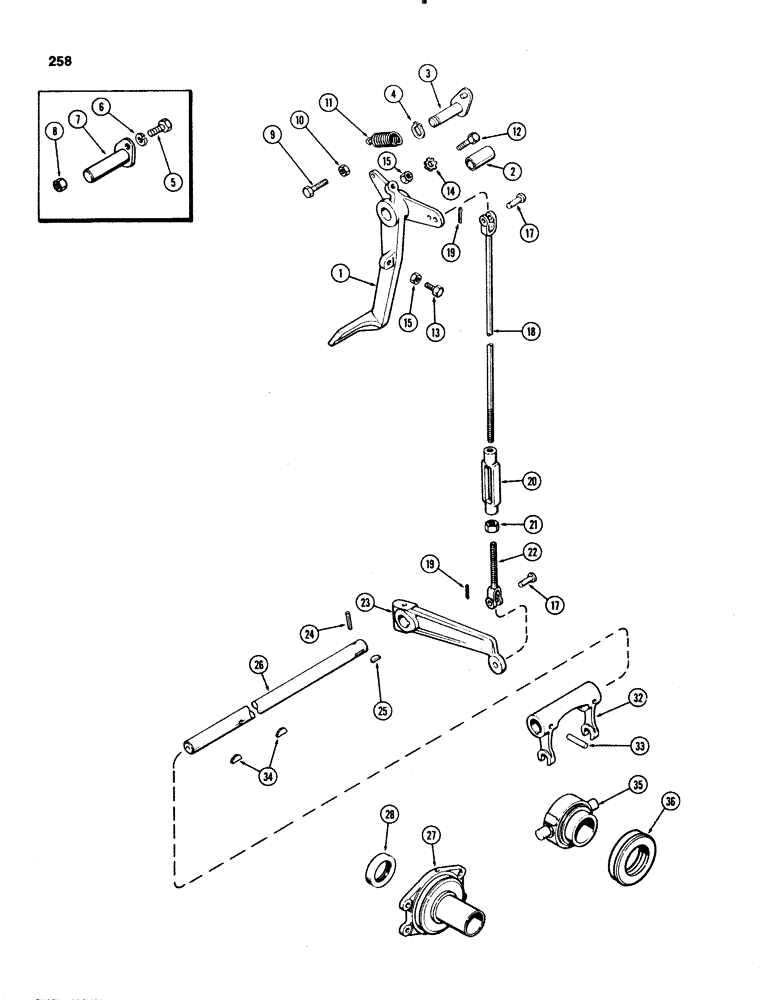

Запчасти Case IH 1070 (0258) - CLUTCH RELEASE MECHANISM, MECHANICAL SHIFT (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A185100
PEDAL
ASSY. - foot clutch (replaces A60300), Includes: Ref. 2
1шт.
2
A59475
BUSHING
- clutch pedal
1шт.
3
A143472
SHAFT
- pivot, clutch pedal
1шт.
4
A33531
SNAP RING,#75, Ext
Ring, Snap, , pivot shaft #75, Ext
1шт.
5
A13-516
BOLT - 5/16 x 1" N.C. hex
1шт.
6
92-5
LOCK WASHER,5/16"
1шт.
7
A60305
SHAFT
- pivot, clutch pedal (Order 1-A143472 & 1-A33531)
1шт.
8
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N.C. hex
1шт.
9
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
1шт.
10
25-146
JAM NUT,Jam, 3/8"-16, G5
- 3/8" N.C. hex., jam
2шт.
11
A59470
SPRING
- tension, clutch return
1шт.
12
A59472
BOLT
- stop clutch pedal
1шт.
13
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
1шт.
14
193-9
LOCK WASHER,Ext Tooth, 5/16"
WASHER, LOCK, Ext Tooth, 5/16"
1шт.
15
25-145
JAM NUT,Jam, 5/16"-18, G5
- 5/16" N.C. hex., jam
2шт.
17
141-4
CLEVIS PIN,3/8" x 1.060"
PIN, CLEVIS, , Upper & lower links 3/8" x 1.060"
2шт.
18
A60310
LINK
- upper, clutch adjusting (Replaces A60312)
1шт.
19
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
20
A60303
TURNBUCKLE
- clutch adjusting links, 3/8"
1шт.
21
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex
1шт.
22
A60313
LINK
- lower, clutch adjusting
1шт.
23
A59191
LEVER
- foot clutch release
1шт.
24
138-160
LOCK PIN,5/16" x 2", Slotted
Pin, 5/16" x 2", Slotted
1шт.
25
126-24
WOODRUFF KEY,#15, 1/4" x 1"
1шт.
26
A62484
SHAFT
- clutch release (Replaces A58979)
1шт.
27
A57698
CARRIER
ASSY. - range drive shaft bearing, Includes: Ref. 28
1шт.
28
A60076
OIL SEAL
- oil, range drive shaft
1шт.
32
A58980
YOKE
- clutch release shaft
1шт.
33
138-158
LOCK PIN,5/16" x 1 5/8", Slotted
Pin, 5/16" x 1 5/8", Slotted
1шт.
34
126-24
WOODRUFF KEY,#15, 1/4" x 1"
2шт.
35
A57997
CARRIER
ASSY. - clutch throwout bearing, Includes: Ref. 36
1шт.
36
A58982
BALL BEARING,2.5" ID x 4.062" OD x 0.885"
BEARING - clutch release
1шт.
Выбрано товаров: 32
