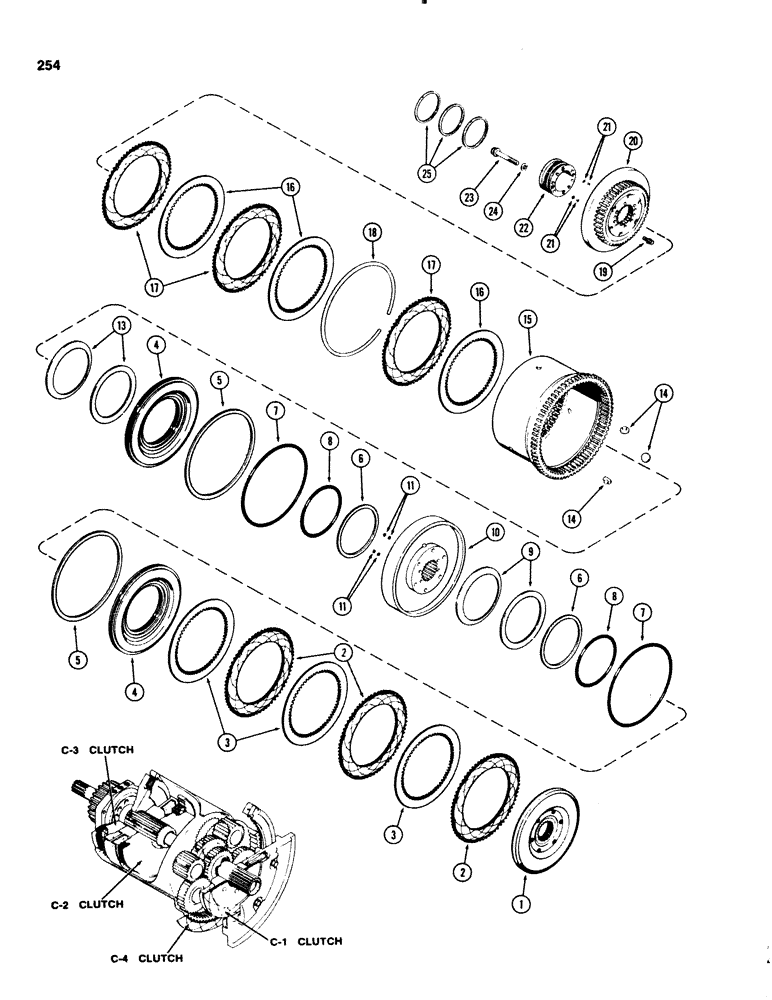

Запчасти Case IH 1070 (0254) - CLUTCH, C-2 AND C-3, POWER SHIFT, 1ST USED TRANSMISSION SERIAL NUMBER 10063614 (06) - POWER TRAIN

NSS

NOT SOLD SEPARAT

CLUTCH PACK - (C-2 & C-3 clutch), Includes: Ref. 1 - 25

1шт.

Not available as an assembled unit. Order components

1шт.

1

A61295

HUB

- (C-2 clutch)

1шт.

2

A61981

PLATE

- sintered (C-2 clutch)

3шт.

3

A58089

PLATE

- steel (C-2 clutch)

3шт.

4

A146670

PISTON

- (C-2 & C-3 clutch)

2шт.

5

A146682

RING

SEAL - external, piston (C-2 & C-3 clutch) (8-1/4" O.D.)

2шт.

Included w/ SEAL KIT, A46286

1шт.

6

A146683

RING

SEAL - internal, piston (C-2 & C-3 clutch) (4-1/2" I.D.)

2шт.

Included w/ SEAL KIT, A46286

1шт.

7

A150753

O-RING,7.84" ID x 0.107"

- piston O.D. (C-2 & C-3 clutch) (7-3/4 x 7-27/32 x 3/32")

2шт.

Included w/ SEAL KIT, A46286

1шт.

8

A150754

O-RING,4.718" ID x 0.107"

- piston I.D. (C-2 & C-3 clutch) (4-21/32 x 4-3/4 x 3/32")

2шт.

Included w/ SEAL KIT, A46286

1шт.

9

A58094

SPRING

- return, belleville (C-2 clutch)

2шт.

10

A148688

CARRIER

- piston (C-2 & C-3 clutch) (w/31 internal splines)

1шт.

10

A64487

CARRIER

- piston (C-2 & C-3 clutch) (w/o internal splines) (Replaces A62121) (Order A148688)

1шт.

11

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - 5/16 x 7/16 x 1/16" (C-2 & C-3 clutch)

4шт.

Included w/ SEAL KIT, A46286

1шт.

13

A58094

SPRING

- return, belleville (C-3 clutch)

2шт.

14

A58413

BUTTON

BEARING - button, planetary ring gear

3шт.

15

A58412

GEAR

- ring, planetary

1шт.

16

A58089

PLATE

- steel (C-3 clutch)

3шт.

17

A61981

PLATE

- sintered (C-3 clutch)

3шт.

18

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

- snap, plate to ring gear (C-2 & C-3 clutch)

1шт.

19

166-4

12 PT SCREW,Flg, 1/4" - 20 x 3/4", Gr 8

SCREW - 1/4 x 3/4" N.C., 12 pt. flanged (C-3 clutch)

2шт.

20

A58386

HUB

- (C-3 clutch)

1шт.

Included w/ SEAL KIT, A46286

1шт.

21

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

O-RING - 5/16 x 7/16 x 1/16"

4шт.

Included w/ SEAL KIT, A46286

1шт.

22

A58103

HUB

- oil distributor (C-3 clutch)

1шт.

23

A64403

SCREW,Ferry 3/8" - 16 x 2 1/2", Gr 8

- 3/8 x 2-1/2" N.C., Ferry cap

6шт.

24

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 13/32 x 13/16 x 3/32" (Replaces A59238)

6шт.

25

A58384

RING

- seal, oil distributor hub (C-3 clutch)

3шт.

If the oil distributer hub seal rings are found to be defective, replace all three rings

1шт.

A46286

SEAL KIT,Power Shift

SEAL KIT - seal, clutch, Includes: Ref. 5 - 8, 11, 20 and 21

1шт.
