Запчасти Case IH 1070 (0012) - RADIATOR BAFFLES, 451B DIESEL ENGINE (02) - ENGINE

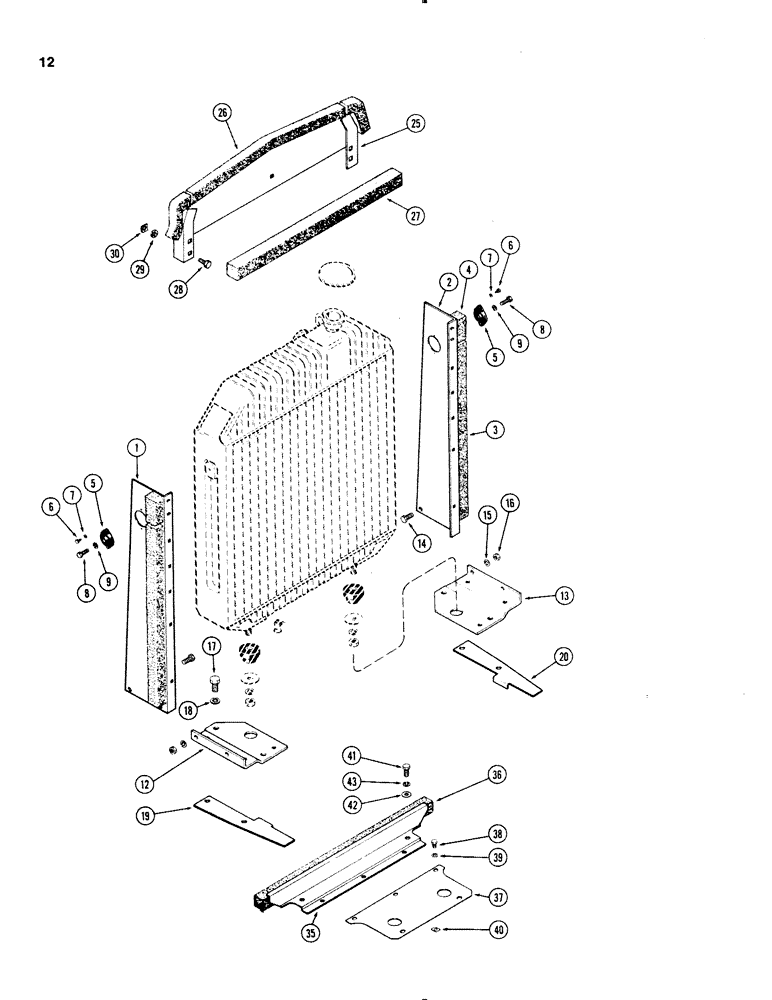

Схема запчастей Case IH 1070 - (0012) - RADIATOR BAFFLES, 451B DIESEL ENGINE (02) - ENGINE
9
16
17
39
6
18
36
3
35
2
4
7
30
1
9
7
28
42
8
37
26
6
13
15
38
43
5
29
40
8
12
41
19
25
14
20
5
27

Артикул

Название

Примечание

Количество

1

A61718

SUPPORT ASSY - radiator side, RH (Includes Items 3 & 4)

1шт.

2

A61719

SUPPORT

ASSY - radiator side, LH, Includes Ref. 3 and 4

1шт.

3

A59873

SEAL

- radiator side, lower

1шт.

Seals to be attached with adhesive 345-22

1шт.

4

A59890

SEAL

- radiator side, upper

1шт.

5

A59862

ANCHOR

MOUNT - radiator support

2шт.

6

187-1303

SELF-TAP SCREW,Hex Hd, #6 x 3/8"

SCREW - #6-32 x 3/8" round head

4шт.

7

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

4шт.

8

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

A59178

PLATE - radiator support, RH

1шт.

13

A59179

PLATE - radiator support, LH

1шт.

14

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

4шт.

15

92-6

LOCK WASHER,3/8"

4шт.

16

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

4шт.

17

13-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5, Full Thd

4шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

A61298

BAFFLE

- lower, RH (Replaces A61662)

1шт.

20

A61299

BAFFLE

- lower, LH (Replaces A61663)

1шт.

25

A61726

BAFFLE ASSY - radiator front, Includes Ref. 26 and 27

1шт.

26

A61727

SEAL

- radiator upper

1шт.

Seals to be attached with adhesive 345-22

1шт.

27

A59877

SEAL

- radiator upper core

1шт.

28

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

29

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

30

131-611

NUT,Ret, 1/4"-20

- 1/4" NC Tinnerman

4шт.

35

A59879

BAFFLE ASSY - radiator lower, rear half, Includes Ref. 36

1шт.

36

A59880

SEAL

- radiator bottom

1шт.

Seals to be attached with adhesive 345-22

1шт.

37

A59881

BAFFLE - radiator lower, front half

1шт.

38

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

39

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

40

131-610

SPRING NUT,U, Ret, 1/4"-20

Tinnerman U, Ret, 1/4"-20

3шт.

41

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

42

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

43

92-6

LOCK WASHER,3/8"

4шт.

Выбрано товаров: 36
