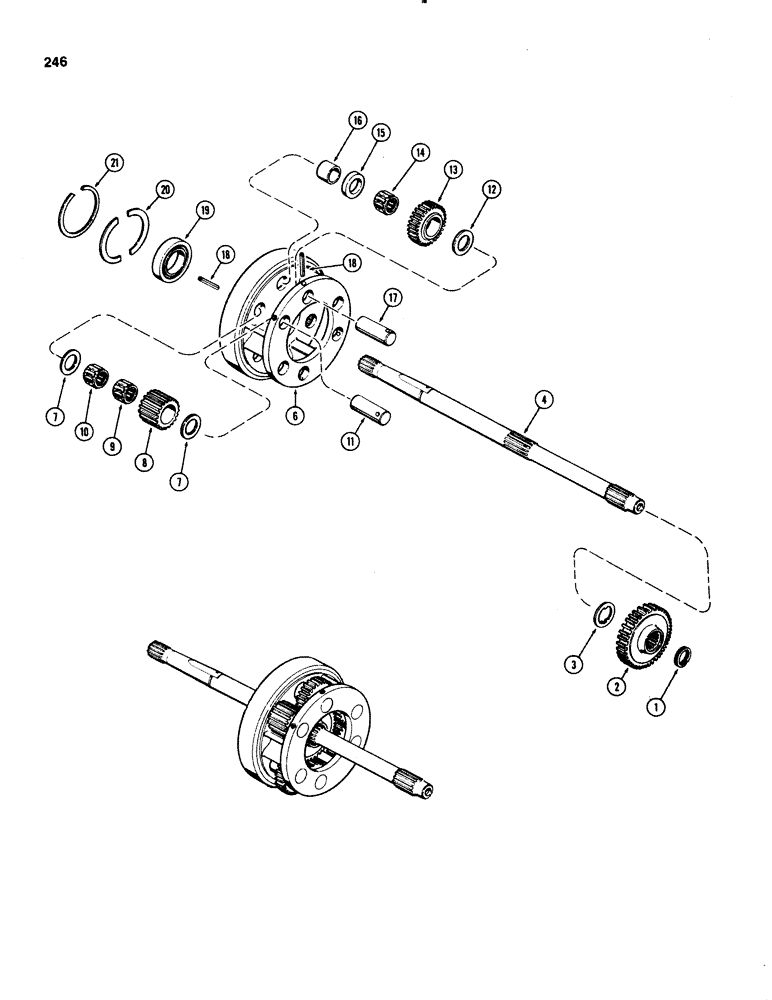

Запчасти Case IH 1070 (0246) - CLUTCH, PLANETARY, POWER SHIFT, USED PRIOR TO TRACTOR SERIAL NUMBER 8725656 (06) - POWER TRAIN

1

A59933

SNAP RING,#118, 1.105", Ext, Spiral

RING - snap, PTO drive shaft

1шт.

2

A58399

GEAR

- transmission & PTO front drive shaft

1шт.

3

A58400

WASHER

- thrust, front drive shaft gear

1шт.

4

A62864

SHAFT

- front drive, transmission & PTO (See Fig. 376)

1шт.

6

A58066

CARRIER

- planetary

1шт.

7

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust (1-1/32 x 1-3/4 x 1/32") (w/long gear)

6шт.

8

A58408

GEAR

- planetary (1-13/16" long)

3шт.

9

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller needle (1" long) (w/long gear)

3шт.

10

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

BEARING - roller needle (3/4" long) (w/long gear)

3шт.

11

A58067

PIN,25.4mm OD x 69.6mm L

- planetary gear (w/long gear) (1 x 2-3/4")

3шт.

12

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust (1-1/32 x 1-3/4 x 1/32") (w/short gear)

3шт.

13

A58405

GEAR

- planetary (short) (1" long)

3шт.

14

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller needle (1" long) (w/short gear)

3шт.

15

A58406

SPACER

RACE - thrust (1 x 1-3/4 x 15/16") (w/short gear) (Order A150410)

3шт.

16

A58407

BUSHING

SPACER - planetary gear (w/short gear) (1-1/32 x 1-1/4 x 3/4")

3шт.

17

A58067

PIN,25.4mm OD x 69.6mm L

- planetary gear (w/short gear) (1 x 2-3/4")

3шт.

18

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

19

A58080

BALL BEARING,1.7717" ID x 2.9528" OD x 0.6249"

BEARING - ball, planetary output shaft, front

1шт.

20

A58081

CARRIER

RETAINER - planetary carrier bearing

2шт.

21

G46143

RING

- snap, planetary carrier bearing

1шт.
