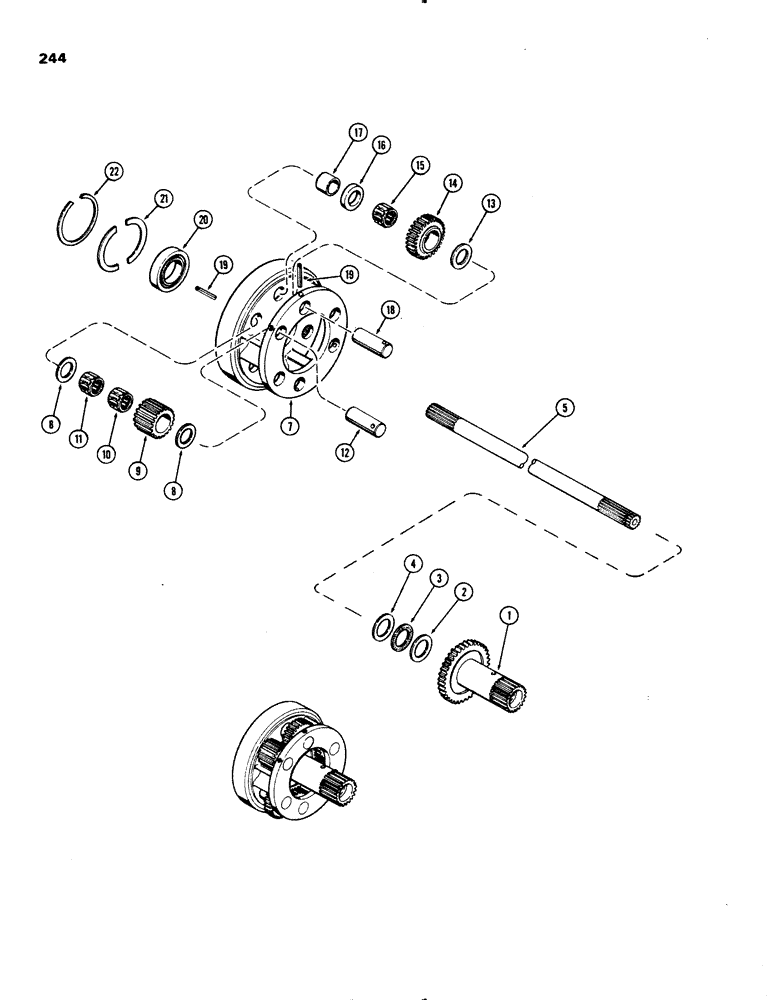

Запчасти Case IH 1070 (0244) - CLUTCH, PLANETARY, POWER SHIFT, USED TRACTOR SERIAL NUMBERS 8725656 TO 8772549 (06) - POWER TRAIN

1

A65413

SHAFT

- power shift input

1шт.

2

A65414

WASHER,38.28mm ID x 55.04mm OD x 1.56mm Thk

- thrust, 1-1/2 x 2-5/32 x 1/16"

1шт.

3

T41022

THRUST BEARING,38.22mm ID x 55.17mm OD x 1.98mm W

BEARING - thrust needle

1шт.

4

A50673

BEARING WASHER,38.27mm ID x 55mm OD x 3.16mm Thk

WASHER - thrust, 1-1/2 x 2-5/32 x 1/8"

1шт.

5

A65412

SHAFT

- drive (52-1/2" long) (See Fig. 376)

1шт.

7

A58066

CARRIER

- planetary

1шт.

8

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust (1-1/32 x 1-3/4 x 1/32") (w/long gear)

6шт.

9

A58408

GEAR

- planetary (1-13/16" long)

3шт.

10

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller needle (1" long) (w/long gear)

3шт.

11

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

BEARING - roller needle (3/4" long) (w/long gear)

3шт.

12

A58067

PIN,25.4mm OD x 69.6mm L

- planetary gear (w/long gear) (1 x 2-3/4")

3шт.

13

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust (1-1/32 x 1-3/4 x 1/32") (w/short gear)

3шт.

14

A58405

GEAR

- planetary (short) (1" long)

3шт.

15

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller needle (1" long) (w/short gear)

3шт.

16

A58406

SPACER

RACE - thrust (1 x 1-3/4 x 15/16") (w/short gear) (Order A150410)

3шт.

17

A58407

BUSHING

SPACER - planetary gear (w/short gear) (1-1/32 x 1-1/4 x 3/4")

3шт.

18

A58067

PIN,25.4mm OD x 69.6mm L

- planetary gear (w/short gear) (1 x 2-3/4")

3шт.

19

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

20

A58080

BALL BEARING,1.7717" ID x 2.9528" OD x 0.6249"

BEARING - ball, planetary output shaft, front

1шт.

21

A58081

CARRIER

RETAINER - planetary carrier bearing

2шт.

22

G46143

RING

- snap, planetary carrier bearing

1шт.
