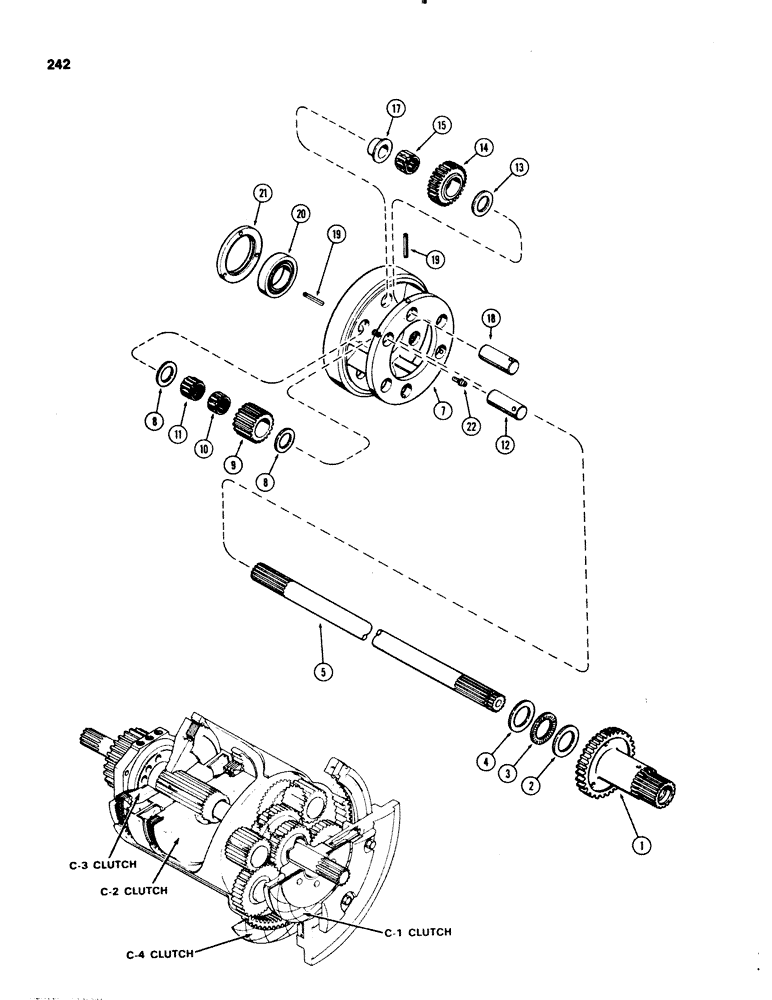

Запчасти Case IH 1070 (0242) - CLUTCH, PLANETARY, POWER SHIFT, 1ST USED TRACTOR SERIAL NUMBER 8772549 (06) - POWER TRAIN

1

A148689

SHAFT

- power shift input (Replaces A66806)

1шт.

2

H147785

BEARING WASHER

WASHER - thrust, 1-3/4 x 2-1/2 x 1/32"

1шт.

3

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

BEARING - thrust needle

1шт.

4

A54021

WASHER

- thrust, 1-3/4 x 2-1/2 x 3/32"

1шт.

5

A65412

SHAFT

- drive, 52-1/2" long (See Figure 221A)

1шт.

7

A148690

CARRIER

- planetary (w/9/32" dia. retainer holes)

1шт.

7

A138774

CARRIER

- planetary (w/7/32" dia. retainer holes) (Order 1-A148690 carrier, 1-A146603 retainer & 3-165-110 capscrews)

1шт.

8

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust (1-1/32 x 1-3/4 x 1/32") (w/long gear)

6шт.

9

A58408

GEAR

- planetary (1-13/16" long)

3шт.

10

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller needle (1" long) (w/long gear)

3шт.

11

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

BEARING - roller needle, (3/4" long) (w/long gear)

3шт.

12

A58067

PIN,25.4mm OD x 69.6mm L

- planetary gear (w/long gear) (1 x 2-3/4")

3шт.

13

A58070

WASHER,25.45mm ID x 44.45mm OD x 0.76mm Thk

RACE - thrust, (w/short gear) (1-1/32 x 1-3/4 x 1/32")

3шт.

14

A58405

GEAR

- planetary (short) (1" long)

3шт.

15

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

BEARING - roller needle, (1" long) (w/short gear)

3шт.

17

A140878

SPACER

- planetary gear (w/short gear)

3шт.

18

A58067

PIN,25.4mm OD x 69.6mm L

- planetary gear (w/short gear) (1 x 2-3/4")

3шт.

19

138-92

LOCK PIN,3/16" x 3/4", Slotted

PIN, 3/16" x 3/4", Slotted

6шт.

20

A63109

BEARING, BALL

BEARING - ball, planetary output shaft, front

1шт.

21

A146603

RETAINER

- planetary carrier bearing (w/1/4" N.F. tapped holes)

1шт.

21

A64444

COLLAR

RETAINER - planetary carrier brg. (w/#10 N.C. tapped holes) (Order 1-A148690 carrier, 1-A146603 retainer & 3-62-48 capscrews)

1шт.

22

62-48

HEX SOC SCREW,1/4"-28 x 1/2"

SCREW - 1/4 x 1/2" N.F. hex. sckt. hd. (Used w/A146603)

3шт.

22

165-155

HEX SOC SCREW,Prev Torque, #10 - 24 x 1/2"

SCREW - #10-24 x 1/2" J lock sckt. hd. cap (Used w/A64444)

3шт.
